Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

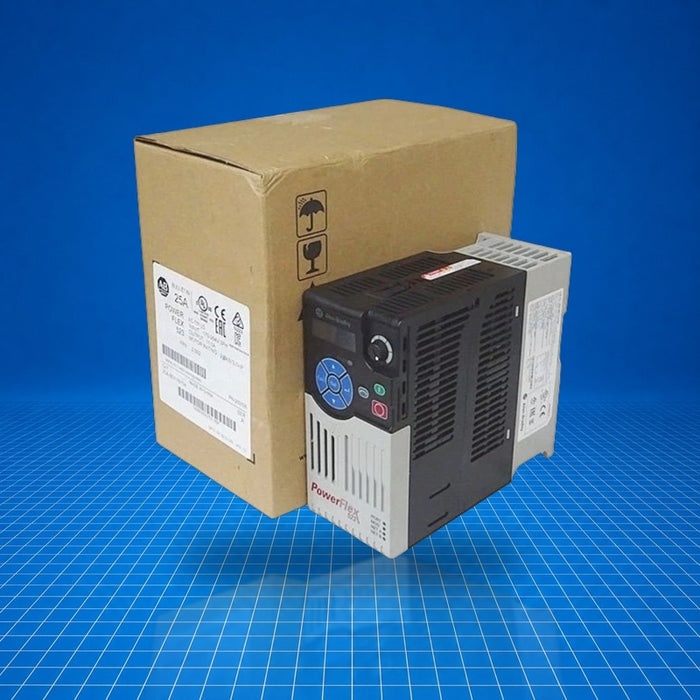

The 25A-B011N104 is an Allen-Bradley PowerFlex 523 adjustable frequency AC drive. It provides variable speed control of three-phase motors up to 2.2 kW (3 HP), within 200-240 VAC input voltage. As part of the PowerFlex 523 series, it serves as a compact motor control module for medium-duty industrial applications such as conveyor systems, pumps, mixers. The part number 25A-B011N104 denotes Frame A, Open-type (IP20/NEMA), standard interface, no EMC filter, with equal normal and heavy duty ratings.
Best Suited For
- Three-phase motor control up to 3 HP (2.2 kW)
- Panel-mounting in standard control enclosures
- Applications requiring both normal-duty and heavy-duty performance
- Integration into PowerFlex 523 systems with future interface modules
Output power
2.2 kW / 3 HP
Output current
11 A
Input voltage
200-240 VAC, 3-phase
Enclosure/frame
IP20 NEMA / Open, Frame A
EMC filter
None
Technical Specifications
I/O & Electrical
Input voltage
200-240 VAC, 3-phase
Output current
11 A
Output power
2.2 kW (3 HP)
Duty ratings
Normal and Heavy Duty equal
Communication & Power
Interface module
Standard (local HMI)
EMC filter
None
Physical & Environmental
Enclosure rating
IP20 NEMA / Open Type
Frame size
Frame A
