Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

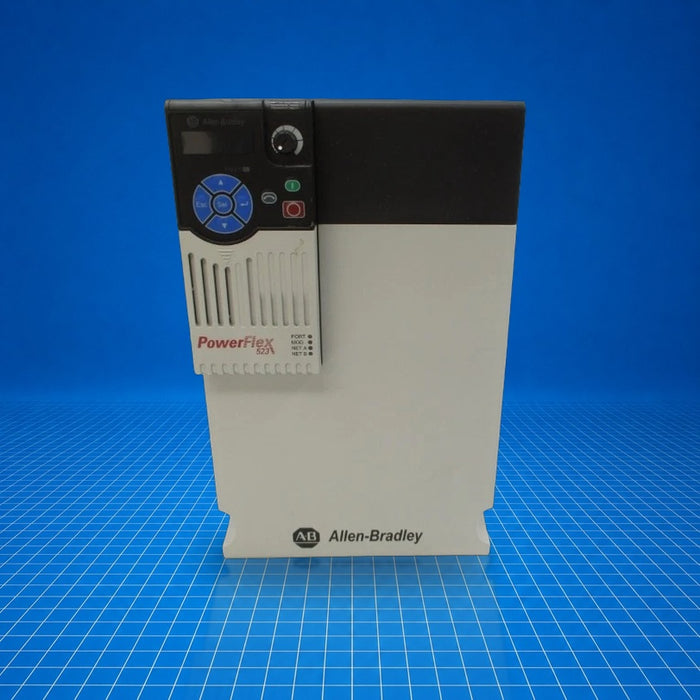

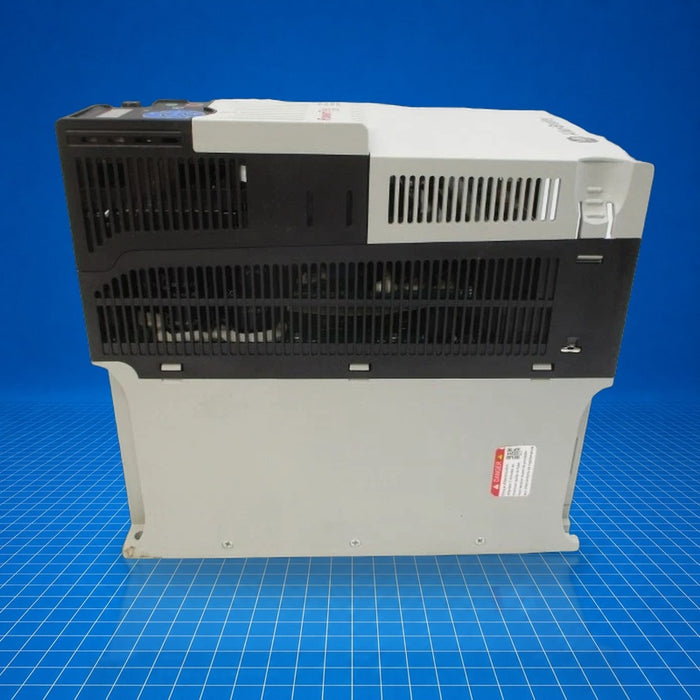

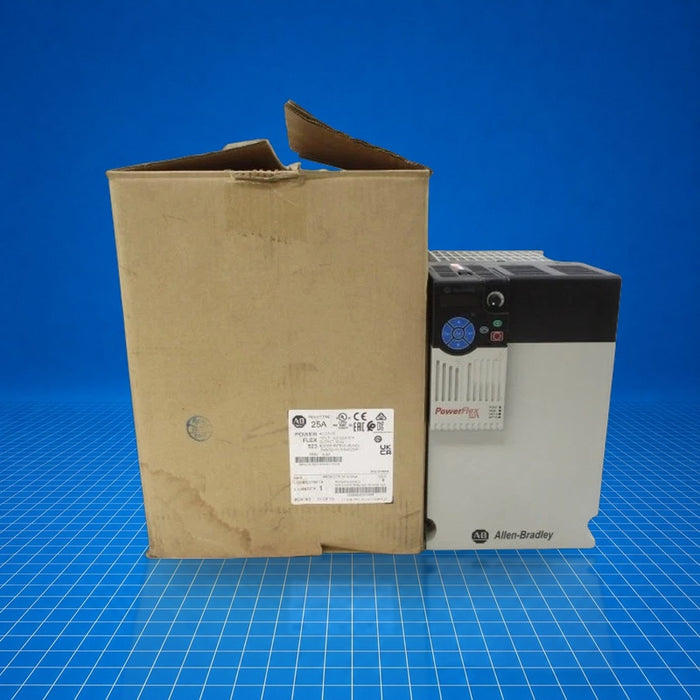

The Allen-Bradley 25A-D037N114 is a PowerFlex 523 series adjustable-frequency AC drive designed for three-phase motor speed control. It accepts 380-480 VAC input and delivers up to 37 A output, providing 25 HP (18.5 kW) under normal duty and 20 HP (15 kW) under heavy duty. Configured in frame E and rated IP20 (NEMA open type), it integrates an EMC filter and supports Volts/Hertz and sensorless vector control. In control systems, it regulates three-phase motor speed and torque, commonly used in HVAC, pump, fan, and conveyor applications.
Best Suited For
- Three-phase motor speed control in HVAC, pump or fan systems
- Frame-E panel installations where space and heat dissipation are manageable
- Applications requiring both Volts/Hertz and sensorless vector control
- Environments needing an internal EMC filter to reduce electromagnetic emissions
Input voltage
380-480 VAC, 3-phase
Output current
37 A
Power rating
18.5 kW normal, 15 kW heavy duty
Enclosure type
IP20 / NEMA open type
Control methods
Volts/Hertz; Sensorless Vector
Technical Specifications
I/O & Electrical
Output current
37 A
Output voltage
0-460 VAC, 3-phase
I/O
5 discrete inputs; 1 Form-C relay output; 1 analog input; 1 analog output
Communication & Power
Built-in communication port
RS-485
Optional protocols
Profibus; DeviceNet; Ethernet/IP
EMC filter
Integrated
Physical & Environmental
Frame size
E
Mounting
Panel mount
Dimensions (W×H×D)
7.28 in × 11.81 in × 10.98 in (185 × 300 × 279 mm)
Weight
28.4 lb (12.9 kg)
Operating temperature
-20 °C to 50 °C
Non-operating temperature
-40 °C to 85 °C
Relative humidity
0-95% non-condensing
Altitude
Maximum 1000 m
