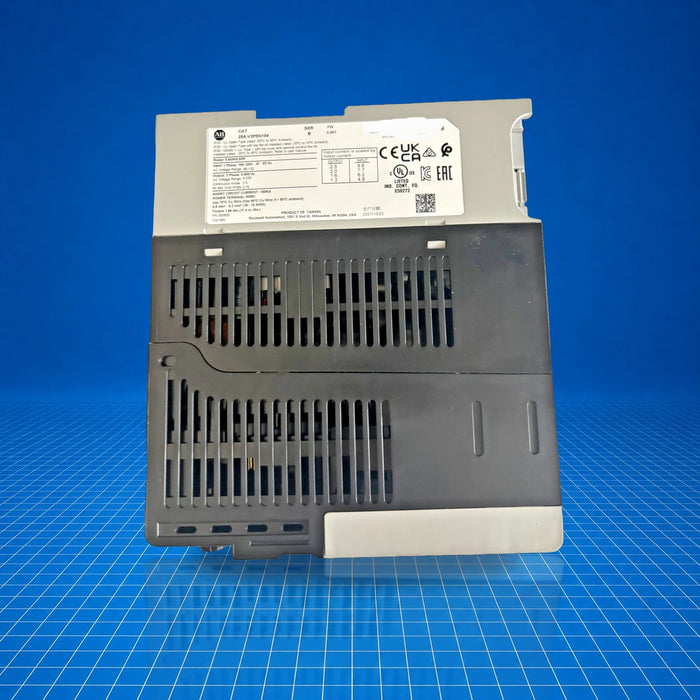

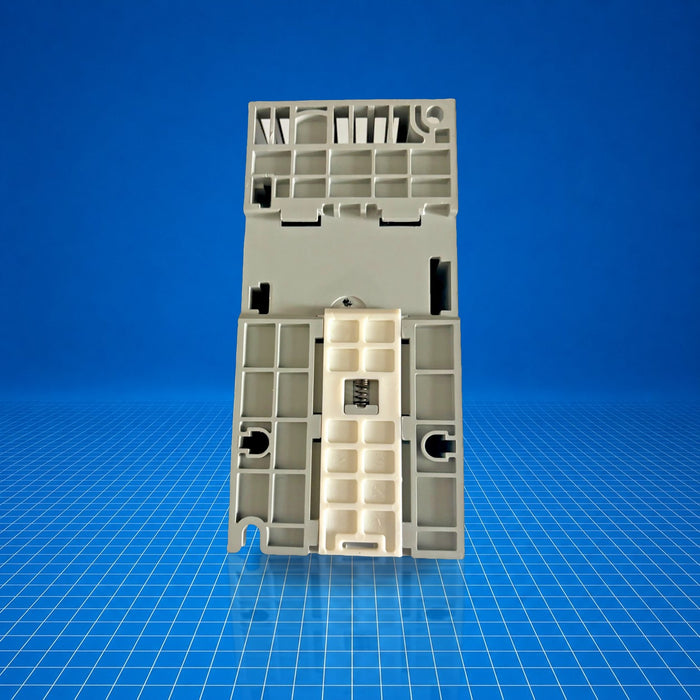

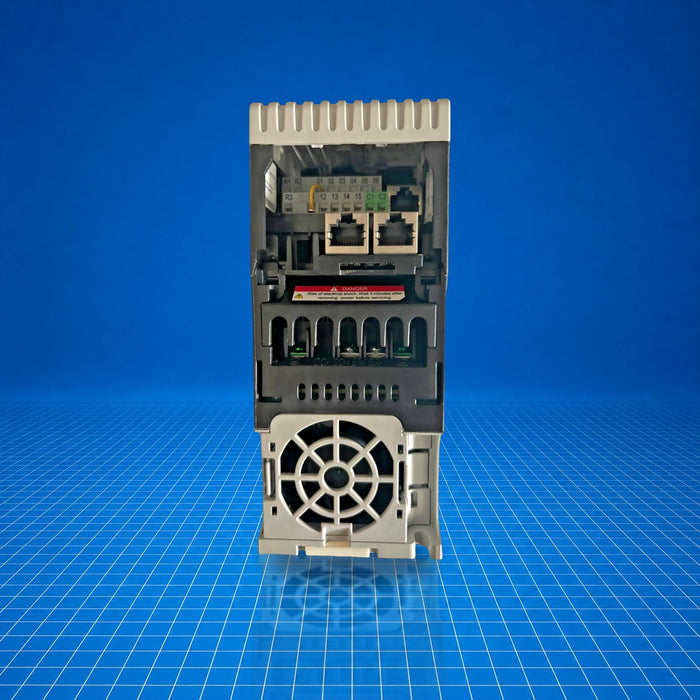

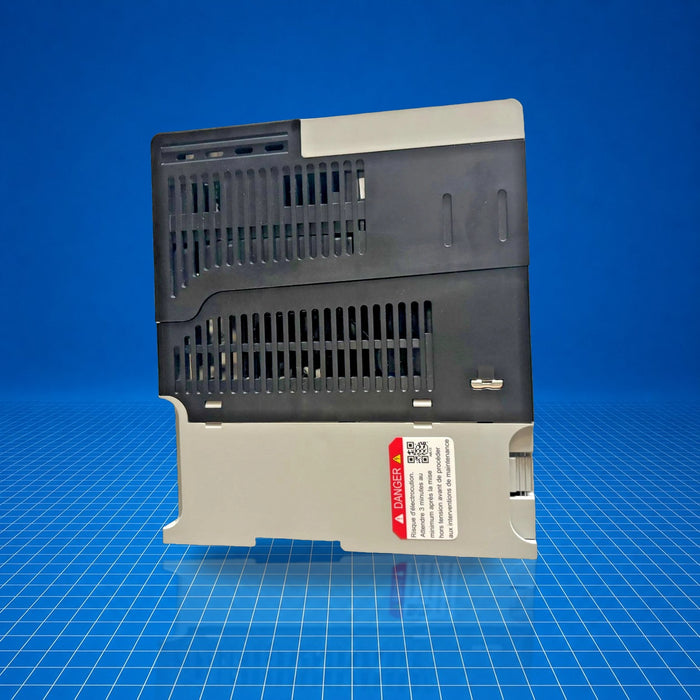

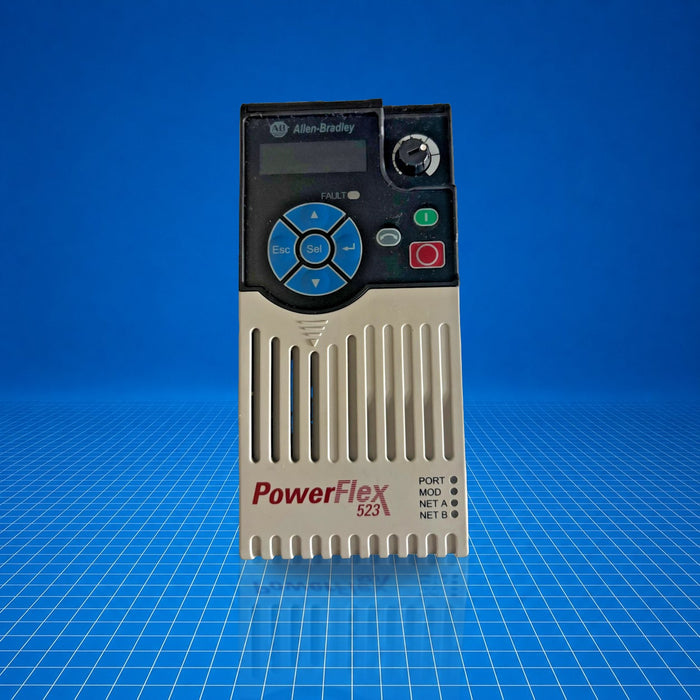

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
25A-V2P5N104 Allen-Bradley
Original price
$0.00
-
Original price
$1,372.50
Original price
$1,372.50
$0.00
-
$1,372.50
Current price
$1,372.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 25A-V2P5N104 is an Allen-Bradley PowerFlex 523 adjustable-frequency AC drive, designed for one-phase input (100-120 V AC) and delivering 0.4 kW (0.5 hp) at up to 2.5 A output current in both normal- and heavy-duty modes. It occupies a Size A, IP20/NEMA open-type enclosure and supports volts-per-hertz and sensorless-vector control methods. It serves as a compact motor speed controller within the PowerFlex 520 series, commonly used for small machinery and process control applications.
Best Suited For
- Small motor speed control in machinery
- Panel-mounted variable frequency drive applications
- Systems requiring sensorless vector or V/Hz control
- Upgrades from discontinued PowerFlex 4 drives
Input voltage range
100…120 V AC (1-phase)
Output current
2.5 A
Power rating
0.4 kW (0.5 hp)
Enclosure
IP20 / NEMA open type
Control methods
Volts/Hz; Sensorless vector
Technical Specifications
I/O & Electrical
Output current
2.5 A
Output voltage
0-230 V AC 3-phase
Embedded discrete inputs
5
Embedded relay outputs
1 × Form C
Analog inputs
1
Analog outputs
1
Communication & Power
Communication port
RS-485
Input voltage range (AC)
100…120 V AC, 1-phase
Control methods
Volts/Hz; Sensorless vector
Physical & Environmental
Frame size
A
Enclosure rating
IP20 / NEMA open type
Certifications
EMCLVDRoHS
See EU Declaration for EMC and LVD compliance, RoHS marked; consult drive label for actual certification set.
