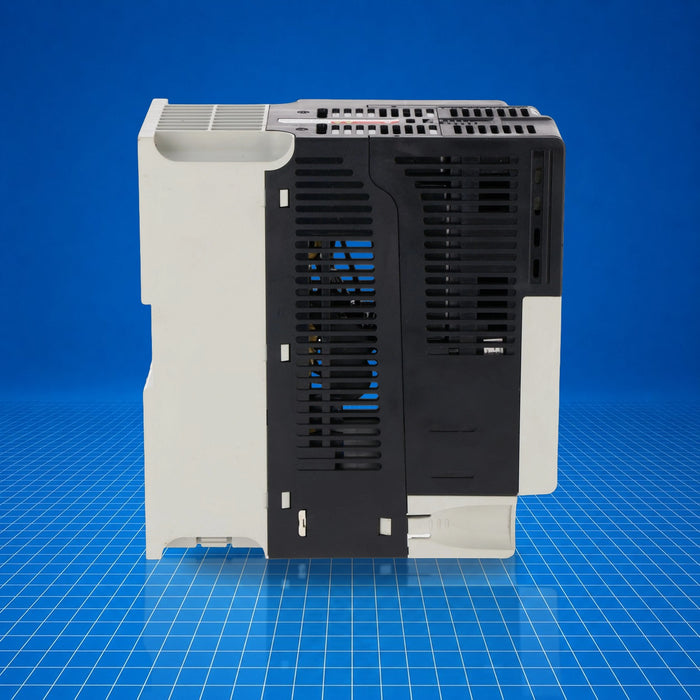

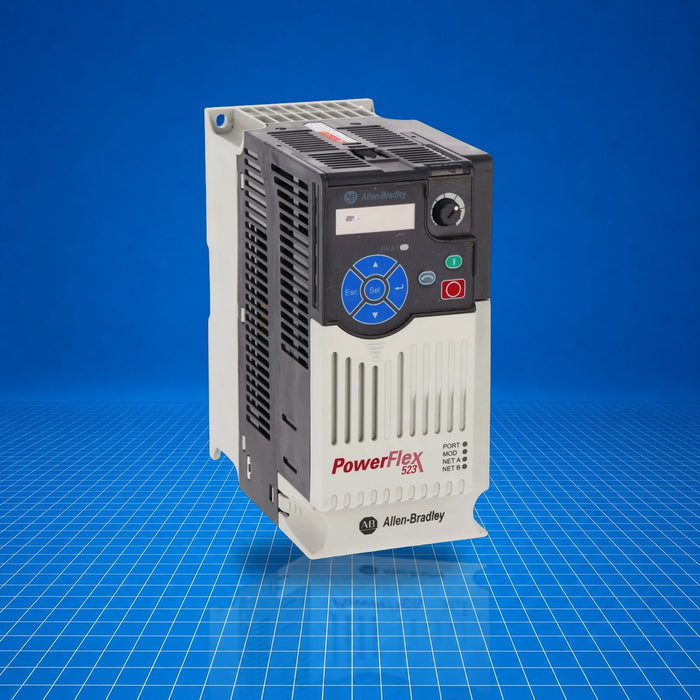

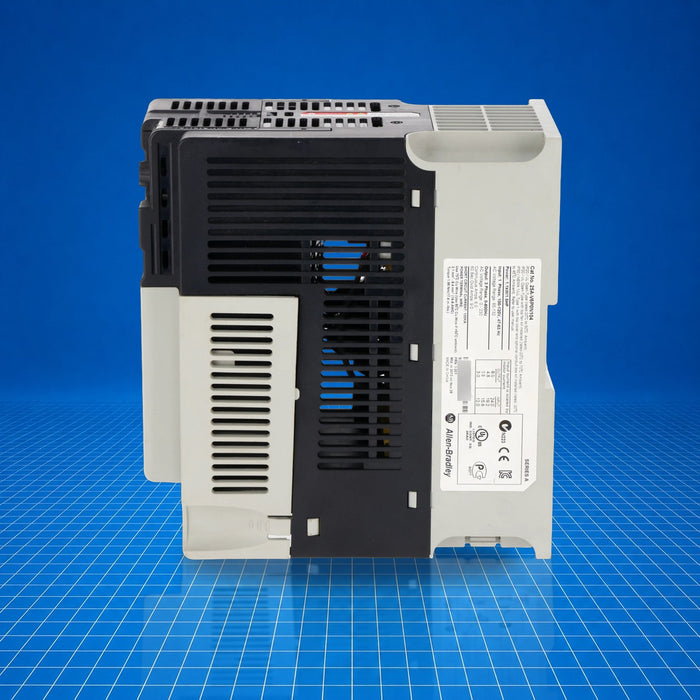

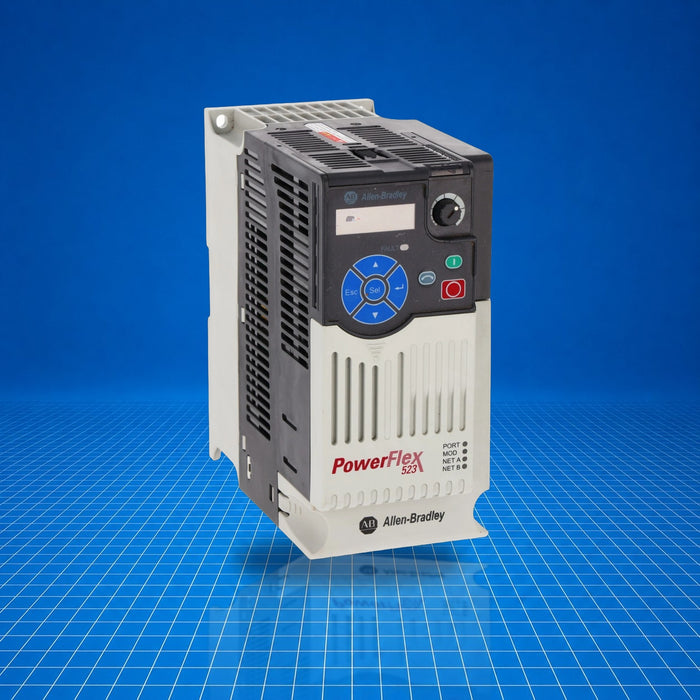

25A-V6P0N104 Allen-Bradley
Original price
$0.00
-
Original price
$797.50
Original price
$797.50
$0.00
-
$797.50
Current price
$797.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 25A-V6P0N104 is a PowerFlex 523 series AC drive from Allen-Bradley, designed for converting single-phase 100-120 V AC input to three-phase variable output sufficient to drive motors up to 1.5 HP (1.1 kW) under both normal-duty and heavy-duty conditions. It serves as a motor speed and torque controller in industrial systems, suitable for pump, fan, or conveyor control in light to medium automation circuits, where compactness and precise motor control are required. 25A-V6P0N104 integrates into control panels and motor control centers.
Best Suited For
- Single-phase motor speed control (up to 1.5 HP)
- Retrofit or panel-mounted applications requiring compact footprint
- Pump or fan control in OEM or infrastructure systems
- Light/machine tool automation requiring variable torque control
Output Current
6.0 A
Input Phase/Voltage
1 Ph, 100-120 V AC
Horsepower (Normal / Heavy Duty)
1.5 HP / 1.5 HP
Frame / Enclosure
Frame B, IP20 / NEMA Open Type
Technical Specifications
I/O & Electrical
Input voltage
100-120 V AC, single-phase
Output current
6.0 A
Normal-duty horsepower
1.5 HP
Heavy-duty horsepower
1.5 HP
Power loss
67 W
Communication & Power
Max input current
24 A
Physical & Environmental
Ambient temperature
-20 to +50 °C
Relative humidity
0 to 95 % (non-condensing)
Altitude (max)
1000 m
Weight
2.44 lb (1.11 kg)
Mounting frame
Frame B
Enclosure rating
IP20 / NEMA Open Type
Dimensions (W×H×D)
3.43 in × 7.09 in × 6.77 in (87 mm × 180 mm × 172 mm)
