25B-A8P0N114 Allen-Bradley
Original price
$1,375.00
-
Original price
$2,339.58
Original price
$1,375.00
$1,375.00
-
$2,339.58
Current price
$1,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

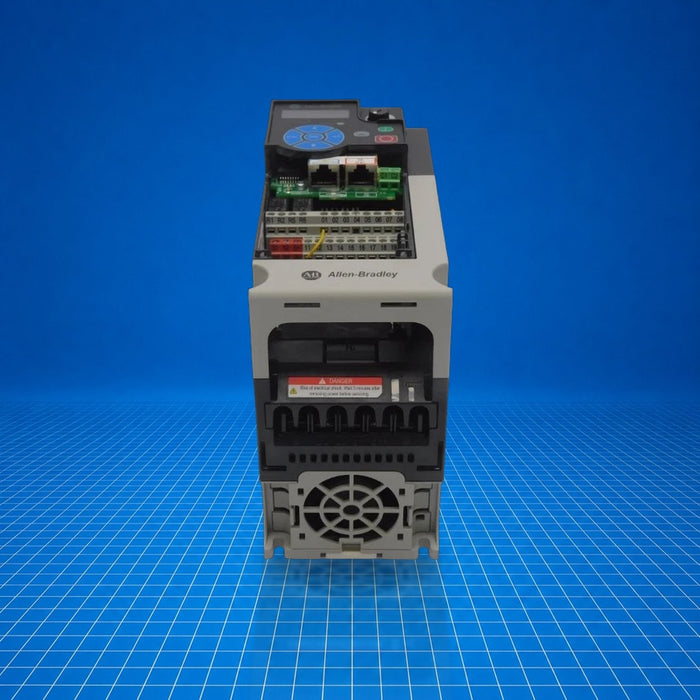

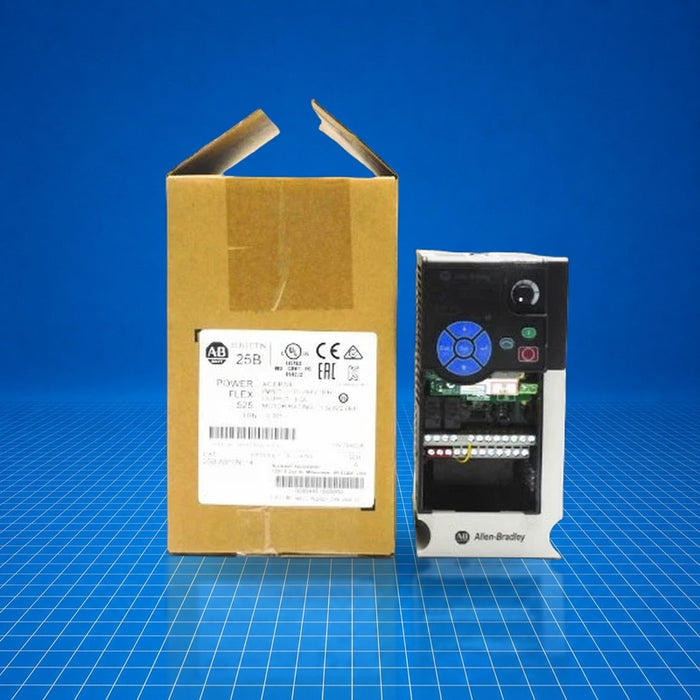

The 25B-A8P0N114 is an Allen-Bradley PowerFlex 525 AC drive offering 1.5 kW (2 HP) output capacity. It operates on single-phase 200-240 V AC input and delivers up to 8 A output in both Normal and Heavy Duty modes. It features EtherNet/IP connectivity with integrated safety functions, a built-in keypad and LED display, IP20/NEMA open-type enclosure (Frame B), and an EMC filter. In a control system, it provides variable frequency motor control with safe torque off capability and is typically applied in industrial machinery and conveyor systems requiring safety-integrated motor control.
Best Suited For
- Single-phase 200-240 V AC motor control
- Conveyor and material handling motion control
- Applications requiring integrated EtherNet/IP communication
- Safe torque-off safety functionality
- Frame B panel-mount installations
Output power
1.5 kW (2 HP)
Input voltage
200-240 V AC, single-phase
Output current
8 A
Connectivity
Embedded EtherNet/IP, safety
Enclosure rating
IP20 / NEMA open-type
Technical Specifications
I/O & Electrical
Input voltage
200-240 V AC, single-phase
Output current
8 A
Output power
1.5 kW (2 HP)
Communication & Power
Communication interface
Embedded EtherNet/IP with safety
User interface
Integral keypad and LED display
Physical & Environmental
Enclosure
IP20 / NEMA open-type, Frame B
Certifications
ULcULusCEUKCARCMODVASafety
