25B-E4P2N104 Allen-Bradley

Name: 25B-E4P2N104 Allen-Bradley
Brand: Allen Bradley
Price: 1875.0 USD
Availability: InStock

$0.00 - $1,875.00

$1,875.00

$0.00 - $1,875.00

$1,875.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

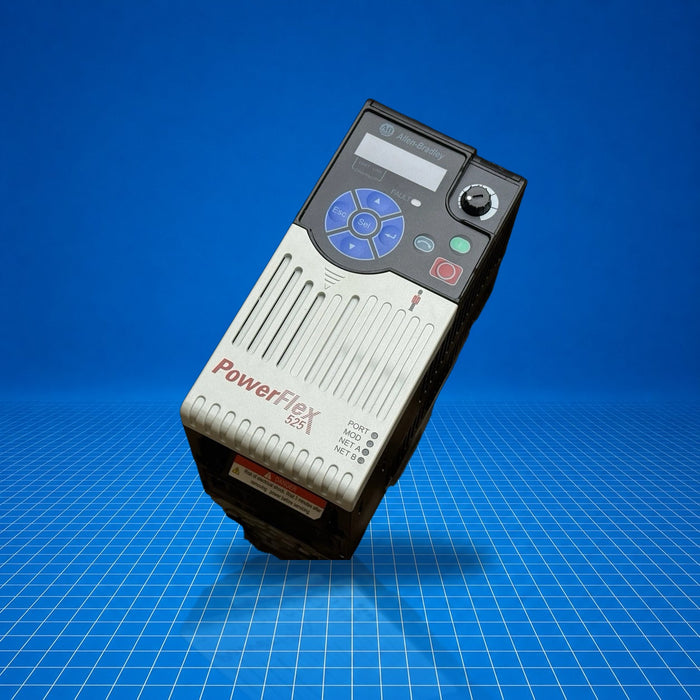

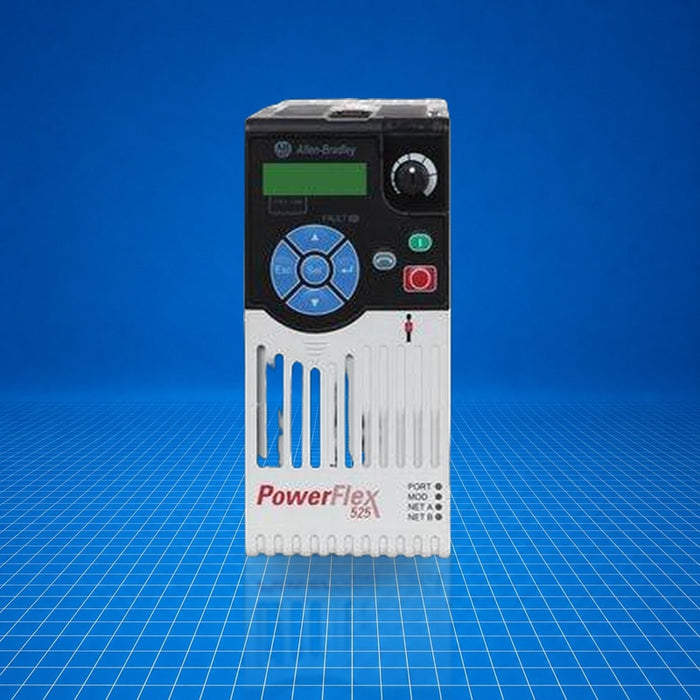

The 25B-E4P2N104 is an Allen-Bradley PowerFlex 525 variable frequency AC drive featuring embedded EtherNet/IP and safety functions. It belongs to the PowerFlex 520-series, Frame A, and provides 3 HP (2.2 kW) output at 600 VAC three-phase input with a 4.2 A rating. The drive includes a built-in keypad with potentiometer and LED user interface and is typically used in industrial motor control applications where safe, network-integrated speed regulation and torque control are required.

Best Suited For

Motor speed and torque control in three-phase 600 VAC systems
Applications requiring integrated Safety or Safe Torque Off SIL 2 Cat 3 function
Installation with EtherNet/IP network integration
Control panels using Frame A IP20/NEMA open drives

Output power

3 HP / 2.2 kW

Input voltage

525-600 VAC, 3-phase

Output current

4.2 A

Enclosure rating

IP20 / NEMA open type

User interface

Built-in keypad with potentiometer & LED

Technical Specifications

I/O & Electrical

Input voltage

525…600 VAC, 3-phase

Output current

4.2 A

Motor power rating

2.2 kW (3 HP)

Input current (approx)

6.1 A kVA / 5.3 A true (normal duty)

Voltage tolerance

-15 % to +10 %

Overcurrent protection

200 % hardware limit; 300 % instant fault

Communication & Power

Embedded communication

EtherNet/IP with safety

User interface

Keypad with potentiometer and LED display

Power ride-through

100 ms

Logic ride-through

0.5 s min., 2 s typical

Physical & Environmental

Frame size

A

Enclosure

IP20 / NEMA open type

Carrier frequency

2-16 kHz

Short-circuit rating

100 000 A symmetrical max.

Weight

0.06 lbs (0.03 kg)

Certifications

Safe Torque Off SIL 2 Cat 3UKCAMorocco DOC

Safety certifications include Safe Torque Off (SIL 2, Cat 3). Product was certified as of May 17, 2026; refer to literature/library for UL/CE/UKCA details.
