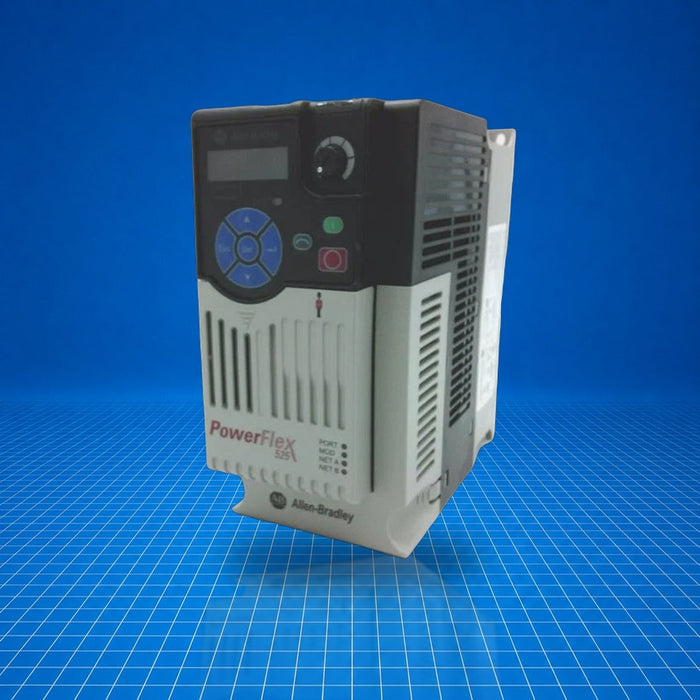

Product image is representative; revision or series may vary.
Contact us to request a specific version.

25B-V4P8N104 Allen-Bradley

Name: 25B-V4P8N104 Allen-Bradley
Brand: Allen Bradley
SKU: 25B-V4P8N104
Price: 935.0 USD
Availability: InStock

$902.33 - $935.00

$935.00

$902.33 - $935.00

$935.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 25B-V4P8N104 is an Allen-Bradley PowerFlex 525 adjustable-frequency AC motor drive, one-phase 100-120 VAC input, providing up to 0.75 kW (1 HP) continuous output (normal/heavy duty). It includes embedded EtherNet/IP and Safe-Torque-Off (STO) safety functionality, Frame B, IP20/NEMA open-type enclosure, integral keypad with potentiometer and LED display. It is used for variable-speed motor control in general industrial applications such as conveyor, pump, and fan systems in panel-mounted installations. (25B-V4P8N104)

Best Suited For

Panel-mounted motor speed control (0.75 kW/1 HP)
Applications requiring STO safety function
EtherNet/IP-based network integration
Zero-stack panel installations
Compact conveyor, pump, fan drives

Output power

0.75 kW (1 HP)

Input

1 phase 100-120 VAC

Output current

4.8 A

Safety function

Safe-Torque-Off (STO)

Interface

EtherNet/IP + RS-485

Technical Specifications

I/O & Electrical

Input voltage

100-120 VAC, 1 phase

Output current

4.8 A

Output power

0.75 kW (1 HP)

Output voltage

0-230 VAC, 3 phase

I/O - discrete inputs

7 (sink/source)

I/O - discrete outputs

1 N.O., 1 N.C. relay; 2 digital/opto outputs

Analog inputs

2 (0-10 V DC; 0-20 mA)

Analog output

1 (0-10 V DC; 0-20 mA)

Communication & Power

Embedded communications

EtherNet/IP; RS-485/DSI

Control methods

V/Hz; Sensorless vector; Closed-loop velocity; Permanent-magnet control

Safety

Safe-Torque-Off (STO) - SIL 2/PL d

Mounting

Panel mount or DIN-rail, zero-stack capable

Physical & Environmental

Frame size

B

Enclosure rating

IP20 / NEMA open type

Weight

3.91 kg (8.63 lb)

Dimensions (W×H×D)

87 mm × 180 mm × 172 mm (3.43" × 7.09" × 6.77")

Certifications

SIL 2PL dUKCAUK EXISO 13849-1

Certified per ISO 13849-1, safe-torque-off safety meets SIL 2 / PL d; specific certifications as of June 17, 2026 include Safety, UKCA, UK EX. Refer to product label for applicable certifications.
