25C-D010N104 Allen-Bradley
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

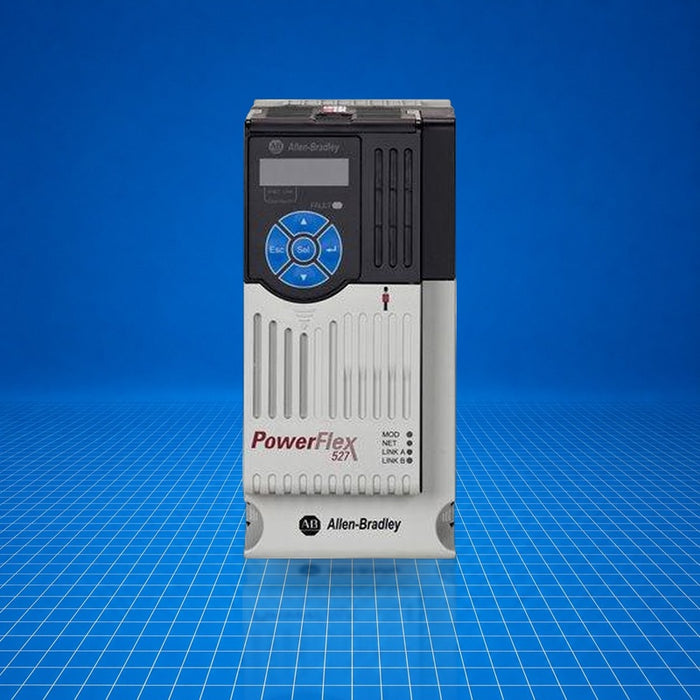

The 25C-D010N104 is an Allen-Bradley PowerFlex 527 adjustable-frequency AC drive in Frame B. It provides motor control up to 5 HP (4 kW) at up to 10.5 A, operating from a 3-phase 380-480 VAC supply. With embedded dual-port EtherNet/IP communications and integrated Safe-Torque-Off (STO), it supports V/Hz, fan/pump, sensorless vector, velocity- and position-vector control modes. It is used in industrial motor speed, torque, velocity, and position control applications. The 25C-D010N104 integrates into Logix controller systems for Drive-to-controller communication and safe-torque-off safety schemes.
Best Suited For
- AC motor speed and torque control up to 5 HP
- Fan, pump, conveyor systems using V/Hz or sensorless vector control
- Integrated Safe-Torque-Off (STO) safety applications
- EtherNet/IP integration with CompactLogix, ControlLogix, GuardLogix
- Panel or DIN-rail mounting in tight installations (zero-stacking support)
