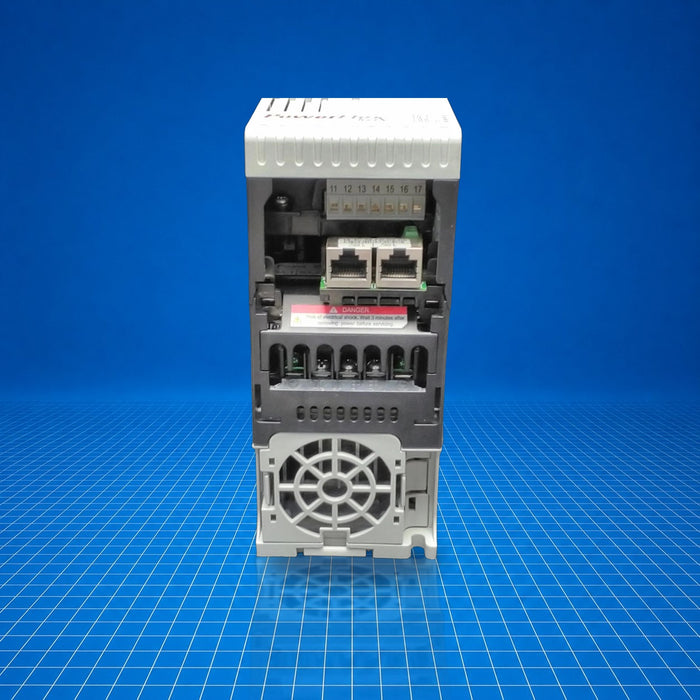

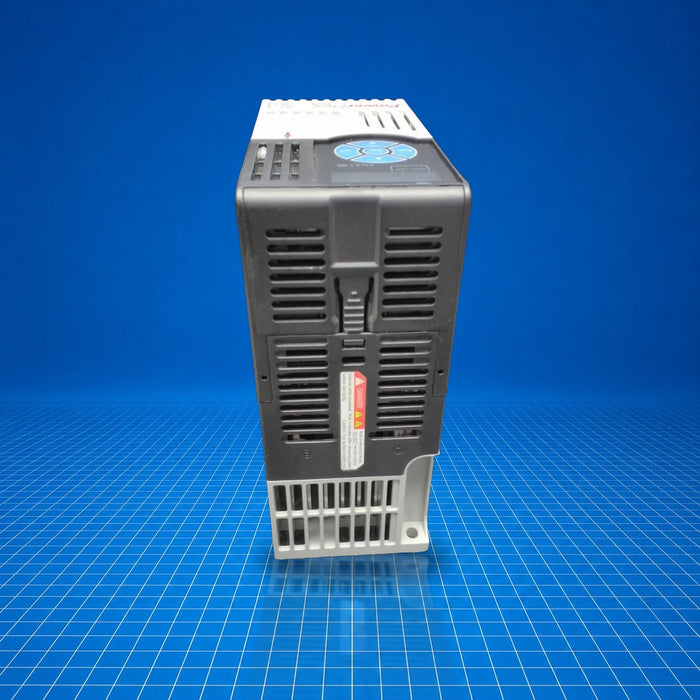

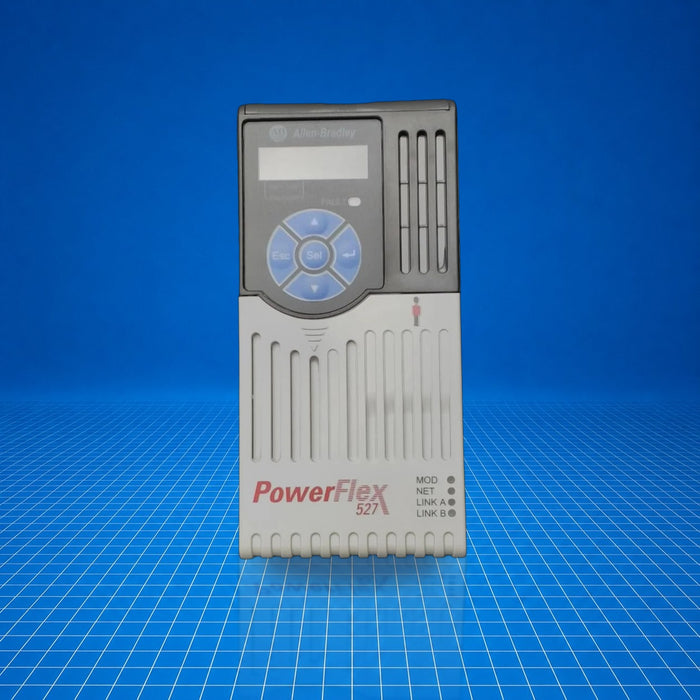

25C-D1P4N104 Allen-Bradley

Name: 25C-D1P4N104 Allen-Bradley
Brand: Allen Bradley
SKU: 25C-D1P4N104
Price: 1031.25 USD
Availability: InStock

$1,031.25 - $1,042.39

$1,031.25

$1,031.25 - $1,042.39

$1,031.25

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 25C-D1P4N104 is an Allen-Bradley PowerFlex 527 series adjustable-frequency AC drive. It provides motor control via Volts/Hertz, Sensorless Vector Control (SVC), closed-loop velocity and position control, and incorporates Safe Torque-Off (STO) safety. With built-in dual-port EtherNet/IP and a human interface module, it integrates into control systems for pump, fan, and general motion applications in OEM equipment, machine tools, material handling, and packaging operations. The 25C-D1P4N104 is specified for 0.5 HP (0.4 kW) output and 1.4 A nominal current.

Best Suited For

Pump and fan speed and torque control
Compact machine tool motor control
Material handling conveyor drives
OEM or panel-mounted machine automation
Integrated safety applications with STO

Output power

0.5 HP (0.4 kW)

Output current

1.4 A

Input voltage range

323-528 VAC, 3-Phase

Communication

Dual-port EtherNet/IP

Technical Specifications

I/O & Electrical

Input voltage range

323-528 VAC, 3-Phase

Output voltage range

0-460 VAC, 3-Phase

Output current

1.4 A

Output frequency

Up to 500 Hz

Communication & Power

Communication ports

Dual-port EtherNet/IP

Control methods

V/Hz, fan-pump V/Hz, SVC, closed-loop velocity & position

Integrated safety

Safe Torque-Off (STO)

Physical & Environmental

Frame size

A

Enclosure rating

IP20 / NEMA Open-Type

Mounting

Panel or DIN-rail

Dimensions (W×H×D)

2.83 × 5.98 × 6.77 in (72 × 152 × 172 mm)

Weight

2.4 lb (1.1 kg)

Ambient operating temperature

-4 °F to 122 °F (-20 °C to 50 °C) without derating; vertical mounting max up to 158 °F (70 °C) with fan kit

Certifications

Australian RCMODVASafetyUK EX

Certified with Australian RCM, ODVA compliance, Safety standards, UK EX as of June 17, 2026.
