25C-D4P0N104 Allen-Bradley
Original price
$592.50
-
Original price
$2,899.60
Original price
$592.50
$592.50
-
$2,899.60
Current price
$592.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

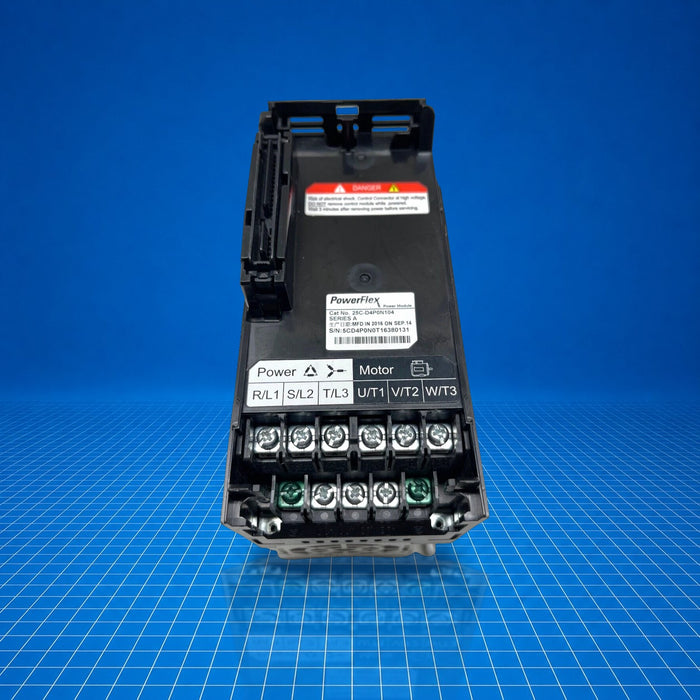

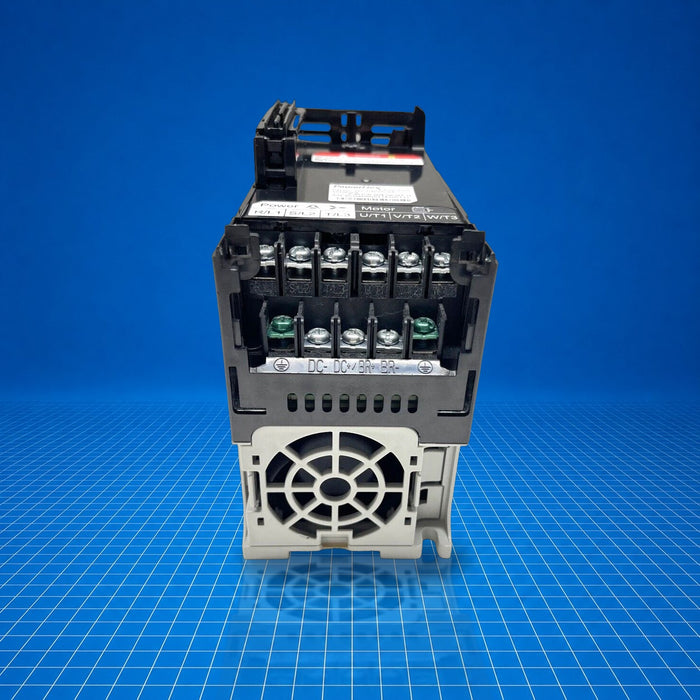

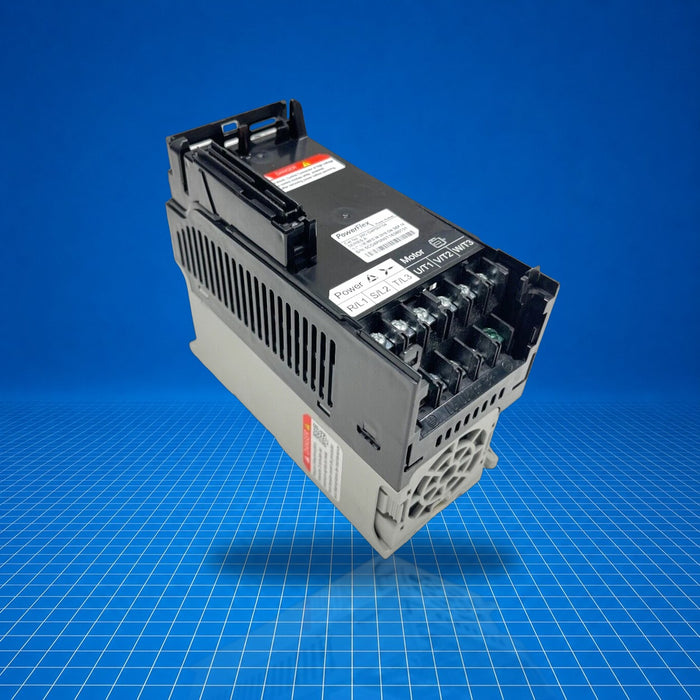

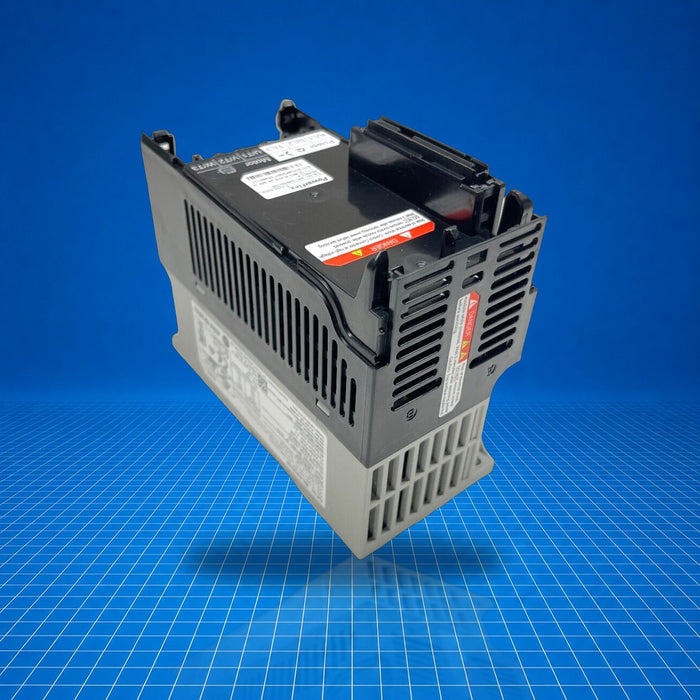

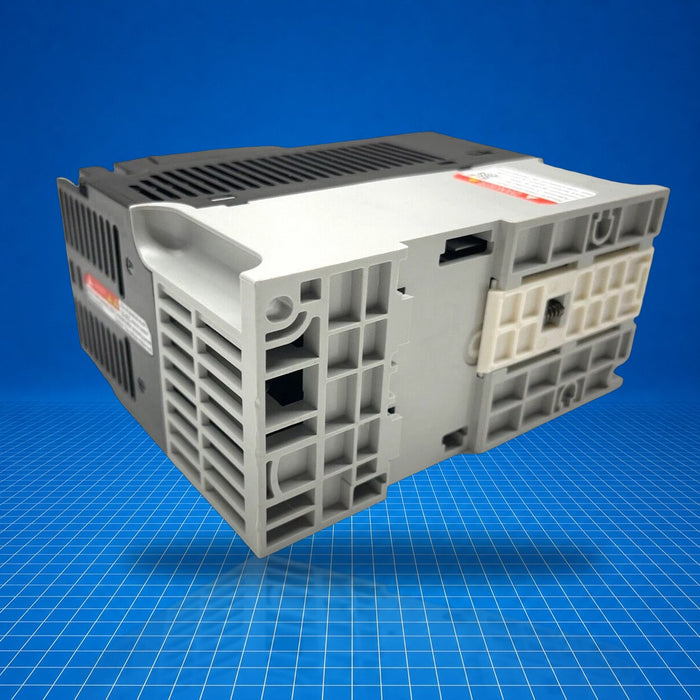

The 25C-D4P0N104 is an Allen-Bradley PowerFlex 527 three-phase AC adjustable-frequency drive. It provides 2.0 HP (1.5 kW) output with embedded dual-port EtherNet/IP and Safe-Torque-Off safety functionality. Designed for control of industrial AC motors, it is typically used in machinery requiring variable speed, torque control, pump and fan applications, or where integrated safety and network communication are needed. The drive supports heavy-duty industrial environments and mounts in IP20/NEMA-open panels.
Best Suited For
- Variable-speed motor control in pump/fan systems
- Distributed control via EtherNet/IP networks
- Applications requiring integrated Safe-Torque-Off (STO)
- Compact panel-mount installations
Output power
2 HP (1.5 kW)
Input voltage range
380…480 V AC, 3-Phase
Output current
4.0 A
Communication
Dual-Port EtherNet/IP
Safety function
Safe-Torque-Off (STO)
Technical Specifications
I/O & Electrical
Input voltage range
380…480 V AC, 3-Phase
Output current
4.0 A
Output power
2 HP (1.5 kW)
Embedded discrete inputs
Three semi-programmable + Four fully programmable
Embedded discrete outputs
Two Form C contacts + One optocoupler output
Analog inputs
One unipolar -10…10 V; One bipolar 0…10 V or 4…20 mA
Analog outputs
Two 0-10 VDC / 0-20 mA
Communication & Power
Network interface
Dual-Port EtherNet/IP
Safety
Safe-Torque-Off (STO)
Overcurrent protection
200 % hardware limit, 300 % instantaneous fault
Motor overload
Class 10, per NEC 430
Physical & Environmental
Frame size / Enclosure
Frame A, IP20 / NEMA-open
Weight
2.4 lb (1.1 kg)
Dimensions (W × H × D)
2.83 × 5.98 × 6.77 in (72 × 152 × 172 mm)
Certifications
Australian RCMODVASafetyUK EX Certificate
Certified as of June 17, 2026; includes Australian RCM, ODVA, Safety, UK EX Certificate
