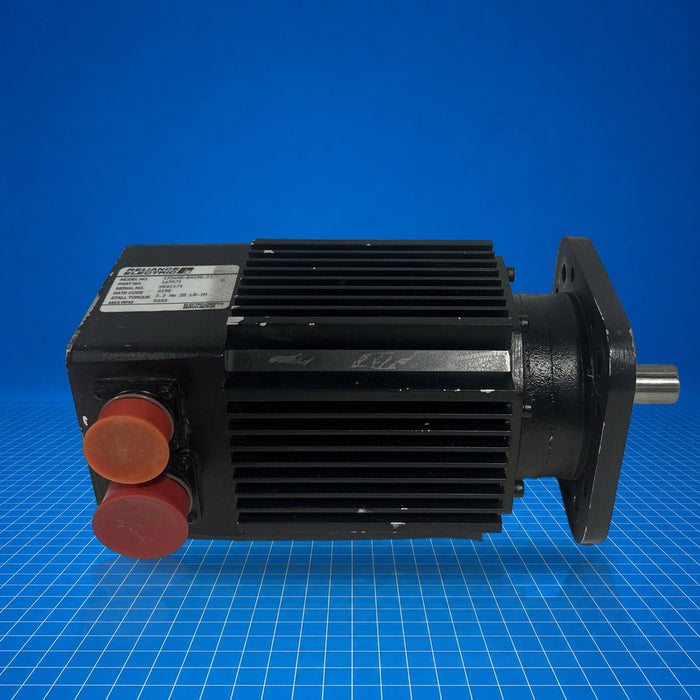

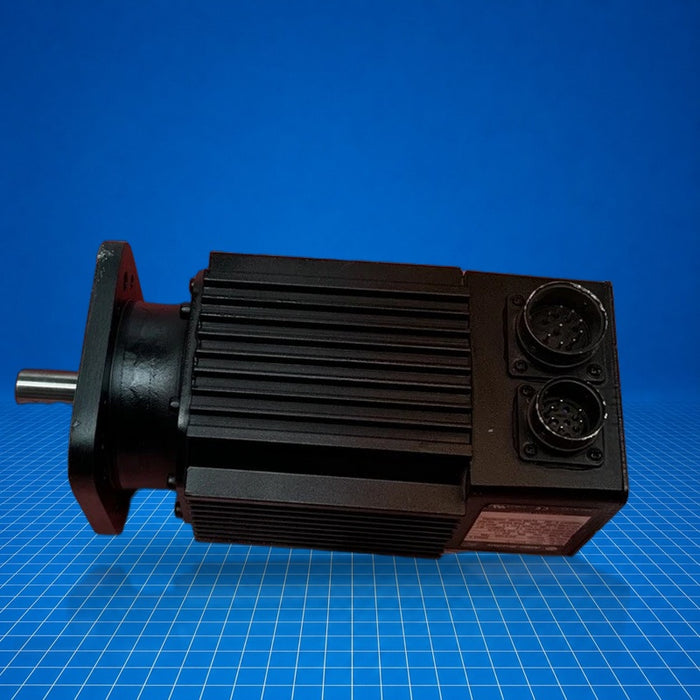

1326AS-B420G-21 Allen-Bradley
Original price
$1,031.25
-
Original price
$2,837.14
Original price
$1,031.25
$1,031.25
-
$2,837.14
Current price
$1,031.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1326AS-B420G-21 is a brushless servo motor in the Allen-Bradley Bulletin 1326AS family. It functions as a position/torque control axis when paired with a 1394 servo drive in factory automation systems. The unit delivers 1.2 kW at 460 V AC and provides a continuous stall torque of 3.2 Nm with a maximum speed of 5250 rpm. It is typically used in medium-duty motion control applications such as indexing, pick-and-place axes, and servo-driven assembly stations. Part number 1326AS-B420G-21 is discontinued but still available through surplus channels.
Best Suited For
- Integration with 1394 servo axis modules (e.g. 1394x-AM03)
- Medium-duty motion control axes (e.g. indexing tables)
- Pick-and-place gantry systems
- Torque-controlled conveyor positioning
Rated output power
1.2 kW
Continuous stall torque
3.2 Nm
Peak stall torque
7.3 Nm
Maximum speed
5250 rpm
Technical Specifications
I/O & Electrical
Input voltage
460 V AC
System continuous stall current
2.6 A (rms)
System peak stall current
6.0 A (rms)
Communication & Power
Motor rated output
1.2 kW
Motor poles
6
Physical & Environmental
Maximum speed
5250 rpm
System continuous stall torque
3.2 Nm
System peak stall torque
7.3 Nm
