1420-V1A-485 Allen-Bradley

Name: 1420-V1A-485 Allen-Bradley
Brand: Allen Bradley
Price: 2970.0 USD
Availability: InStock

$0.00 - $2,970.00

$2,970.00

$0.00 - $2,970.00

$2,970.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

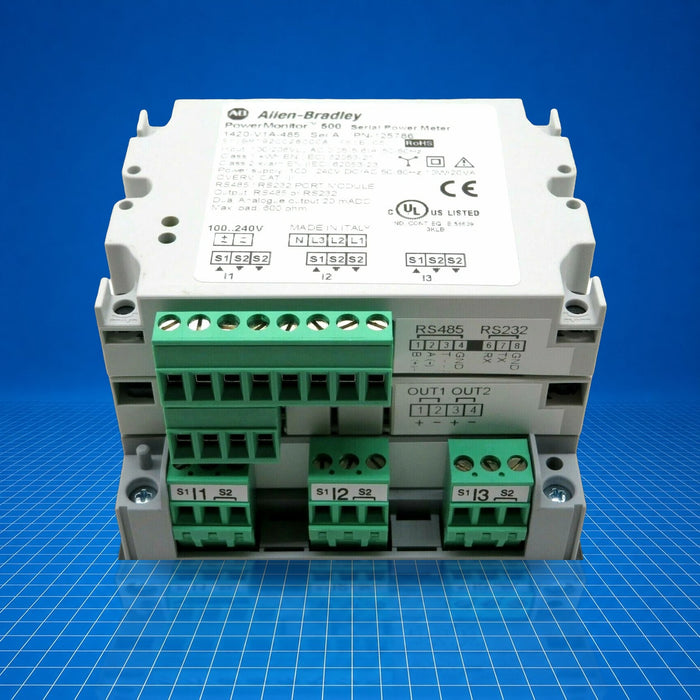

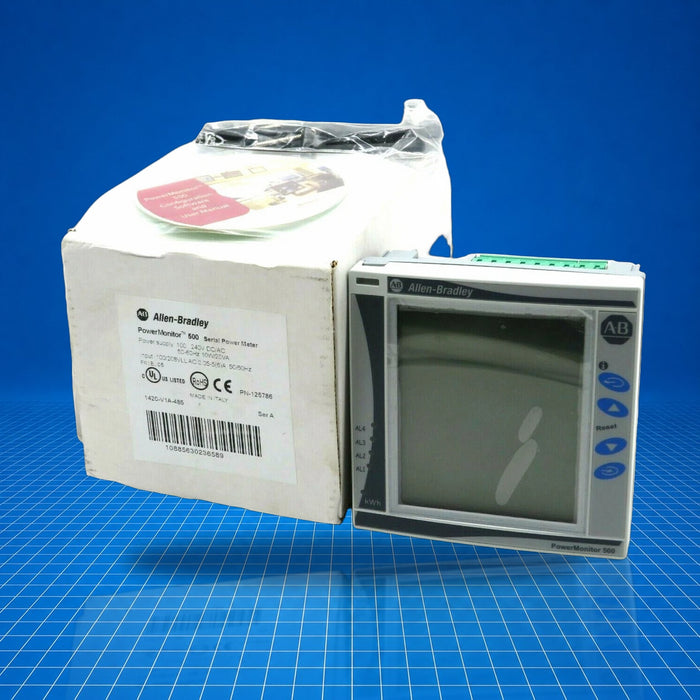

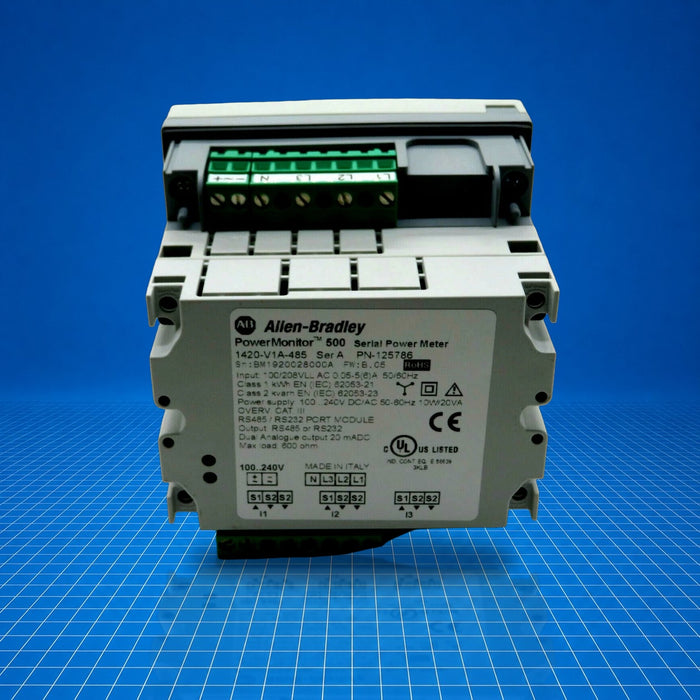

The 1420-V1A-485 is an Allen-Bradley PowerMonitor 500 serial power meter module. It belongs to the Bulletin 1420 PowerMonitor 500 family, providing local LCD display, analog output, and Modbus RTU (RS-485) communication. It measures fundamental electrical parameters including voltage, current, power, energy, power factor, frequency, and demand for panel-mounted energy monitoring. Typical industrial use includes sub-metering on distribution panels, branch circuit monitoring, and energy analytics integration. The 1420-V1A-485 supports integration into Modbus-based supervisory systems.

Best Suited For

Panel-mounted sub-metering installations
Modbus RTU energy monitoring networks
Branch circuit power and energy measurement
Energy data integration with SCADA systems

Analog output

0-20 mA (2)

Communication protocol

Modbus RTU over RS-485

Display

Built-in LCD, 4-row metering, 10-digit energy

Power supply

120/240 V AC or DC

Technical Specifications

I/O & Electrical

Voltage sensing range

40-144 V AC LN, 70-250 V AC LL (nominal 120/208 V)

Current sensing

5 A nominal, 6 A max via built-in CTs

Analog output load

≤ 600 Ω

Communication & Power

Communication

RS-485 (Modbus RTU)

Output channels

2 analog 0-20 mA

Speed options

9.6/19.2/38.4/115.2 kbps

Physical & Environmental

Operating temperature

-25 °C to +40 °C

Storage temperature

-30 °C to +70 °C

Front protection

IP65, NEMA 4X, NEMA 12

Mounting

Panel mount, depth ≤ 81.7 mm behind panel

Weight

Approx. 400 g (0.88 lb)

Dimensions

96×96×50 mm (module holder)

Certifications

UL ListedcULusCE

UL Listed, cULus, CE; Revenue-grade energy accuracy per ANSI C12.1 Class 1.0, EN62053-21 Class 1 (kWh), EN50470-3 Class B, EN62053-23 Class 2 (kVARh)
