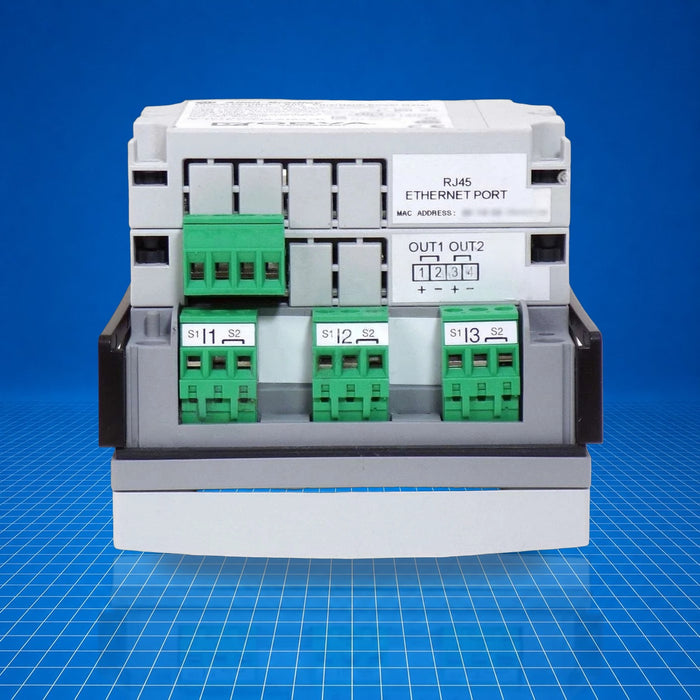

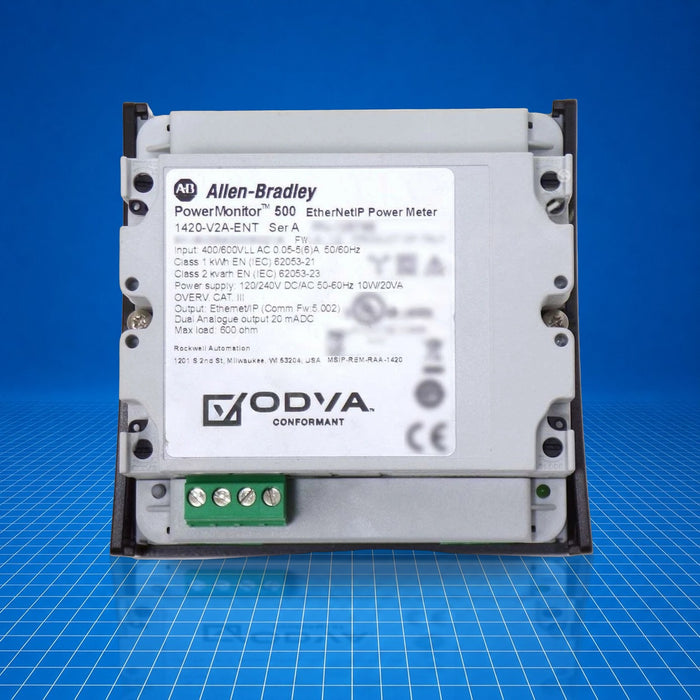

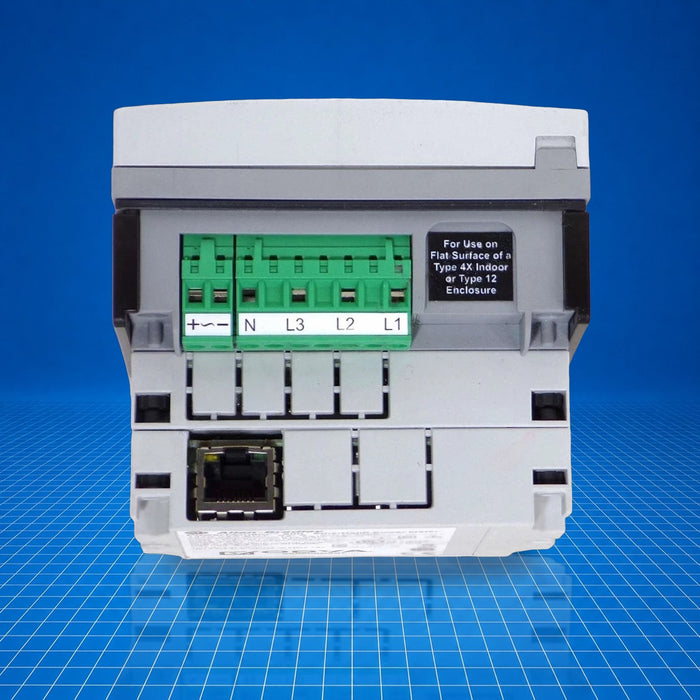

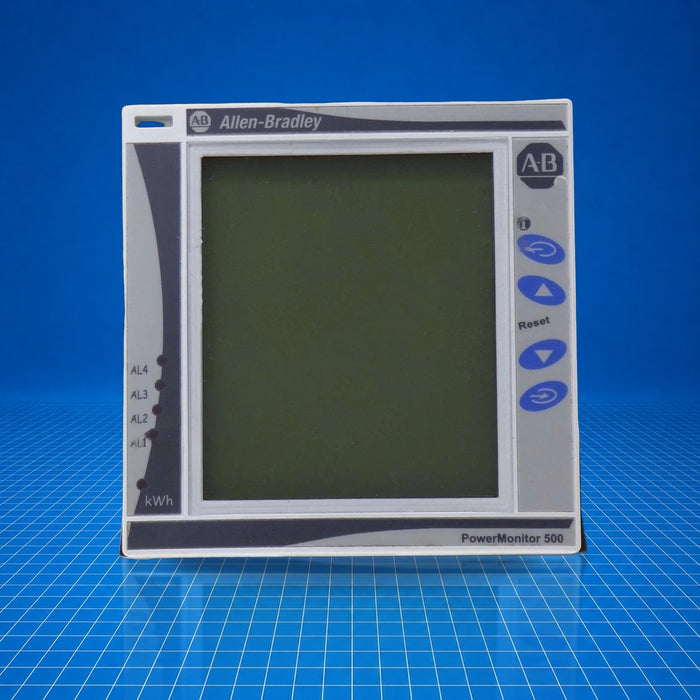

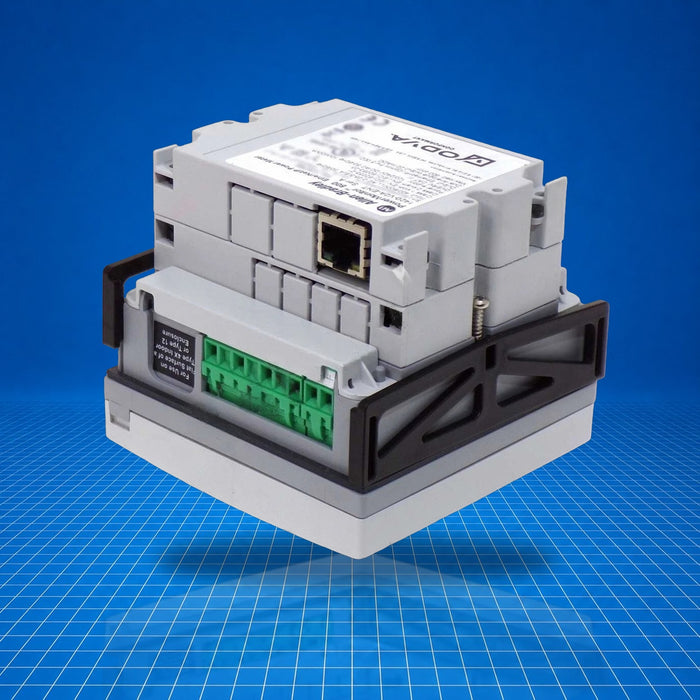

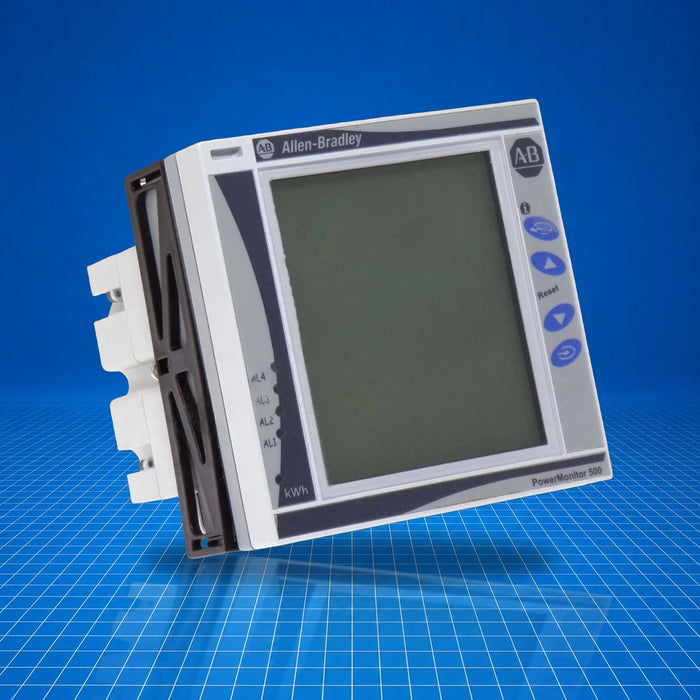

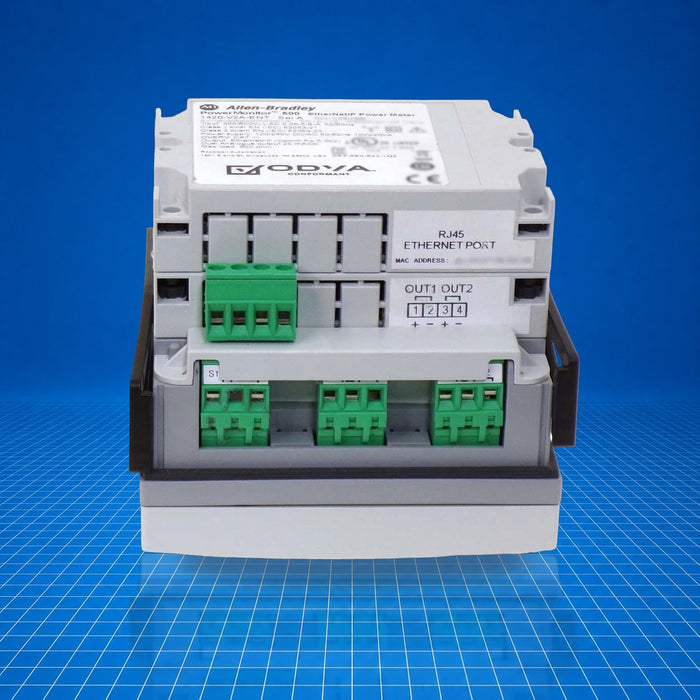

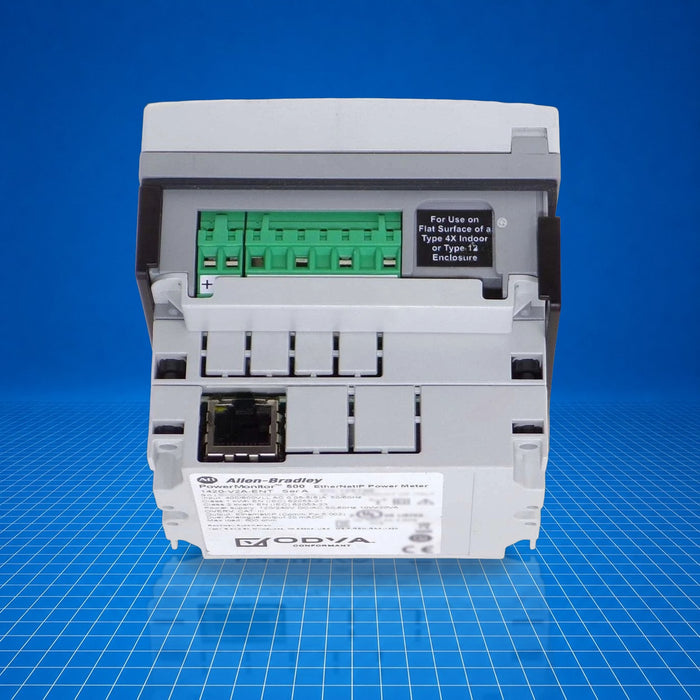

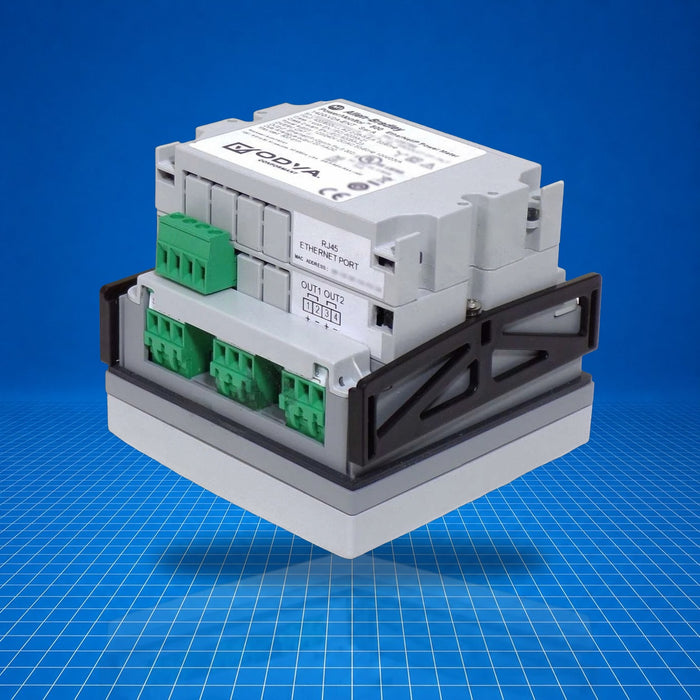

1420-V2A-ENT Allen-Bradley

Name: 1420-V2A-ENT Allen-Bradley
Brand: Allen Bradley
SKU: 1420-V2A-ENT
Price: 2344.43 USD
Availability: InStock

$0.00 - $2,344.43

$2,344.43

$0.00 - $2,344.43

$2,344.43

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1420-V2A-ENT is an Allen-Bradley PowerMonitor 500 power meter module with Ethernet/IP communications and dual analog 0-20 mA outputs. It is part of the PowerMonitor 500 family on the 1420 platform, designed for real-time, true-RMS electrical parameter measurement in industrial installations. It measures line-to-line and line-to-neutral voltages, currents via built-in CTs, power, energy, frequency, and power factor, and is used in panel-mounted power monitoring for energy management, sub-metering and control applications.

Best Suited For

Panel-mount energy sub-metering
EtherNet/IP networked power data collection
Analog retransmission of instantaneous variables
Revenue-grade energy monitoring per ANSI/EN standards

Voltage range (LL/LN)

400 V AC LN / 600 V AC LL (160-480 V LN, 277-830 V LL RMS)

Current input

5 A nominal, 6 A max (built-in CTs)

Communications

EtherNet/IP (optional Modbus TCP/IP)

Analog outputs

Two 0-20 mA outputs

Front protection/mounting

IP65, NEMA 4X/12, panel-mounted 96×96 mm

Technical Specifications

I/O & Electrical

Voltage sensing range (LN/LL)

160-480 V AC LN RMS; 277-830 V AC LL RMS

Nominal voltage (LN/LL)

400 V AC LN; 600 V AC LL

Current input

5 A nominal, 6 A maximum via built-in CTs

Control power supply

100-240 V AC or 120-240 V DC, 48-62 Hz

Analog output

0-20 mA, two outputs; load ≤ 600 Ω; ripple ≤ 1%

Input impedance

< 0.2 VA at 5(6) A

Voltage overload

2× Vnom for 500 ms

Current overload

6 A, continuous

Communication & Power

Communications protocol

EtherNet/IP; optional Modbus TCP/IP

Configuration interface

Front keypad; configurable via software tool

Response time

≤ 400 ms (filter excluded)

Sampling rate

3840 samples/s at 60 Hz; 3200 samples/s at 50 Hz

Physical & Environmental

Display

LCD, four rows × 4 digits; energy display 10 + sign digits

Mounting / Dimensions

Panel mount; 96 × 96 × 50 mm front; depth ≤ 81.7 mm

Weight

Approx 400 g (0.88 lb), packaging included

Ambient operating temp.

-25 to +40 °C (non-condensing RH ≤ 90% at 40 °C)

Storage temp.

-30 to +70 °C (non-condensing RH < 90% at 40 °C)

Ingress protection

Front IP65; screw terminals IP20

Material

ABS, UL 94 V-0

Certifications

ANSI C12.1 Class 1.0EN 62053-21EN 50470-3 Class BEN 62053-23 Class 2

Revenue-grade energy measurement per ANSI C12.1 Class 1.0 / EN 62053-21; Class B (energy) per EN 50470-3; reactive energy Class 2 per EN 62053-23.
