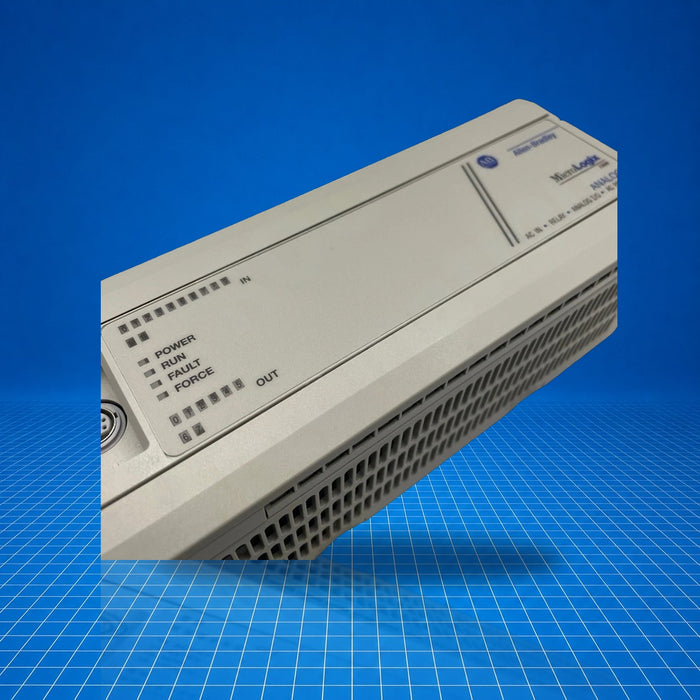

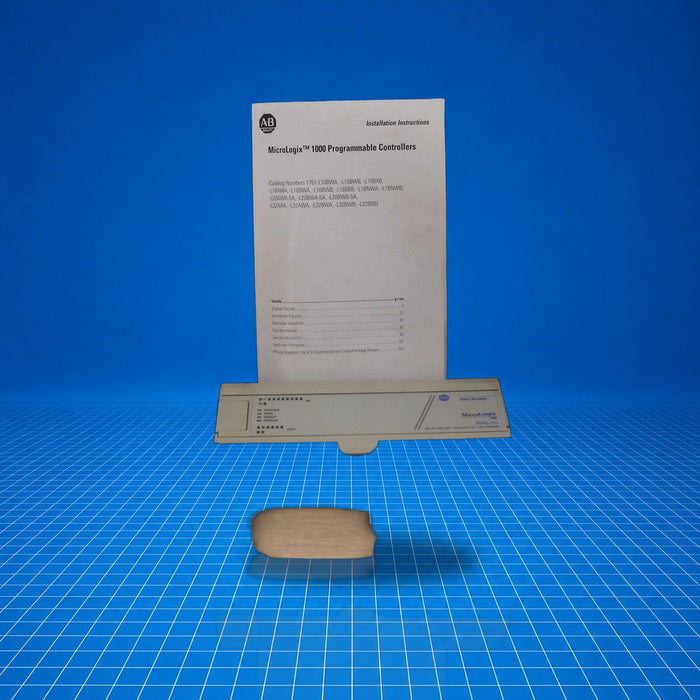

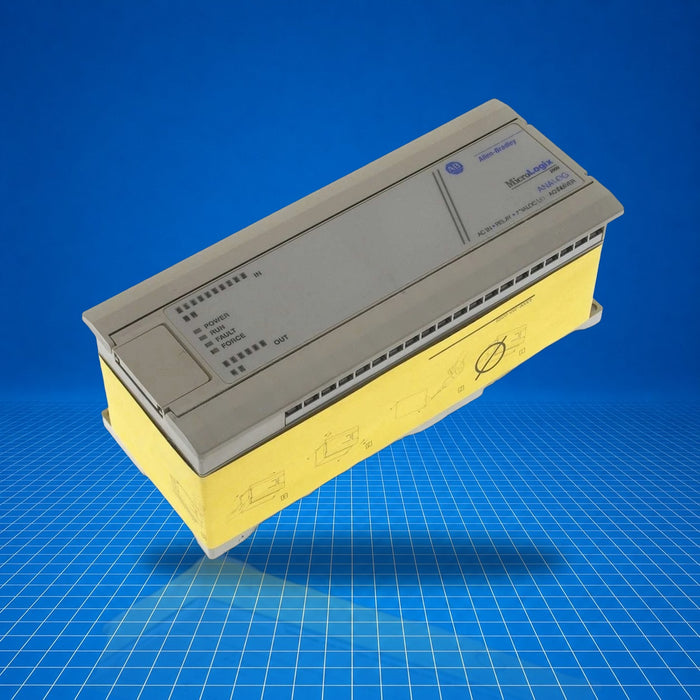

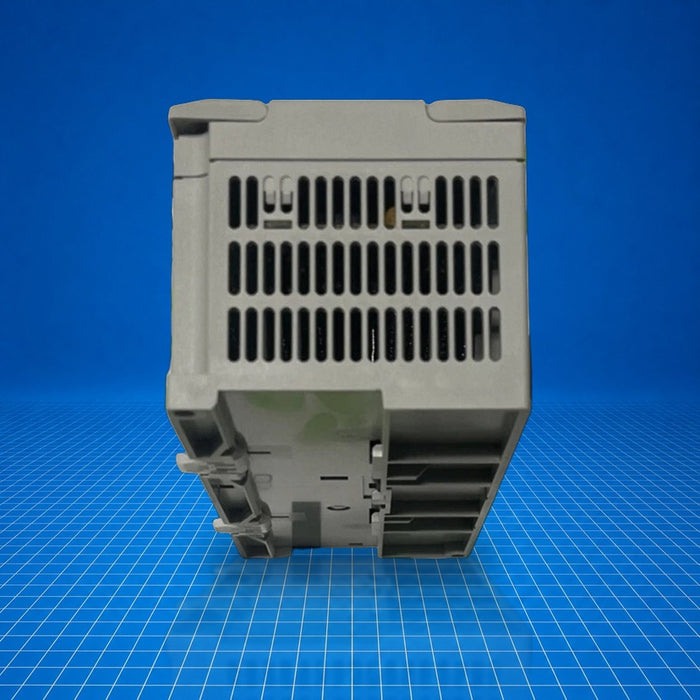

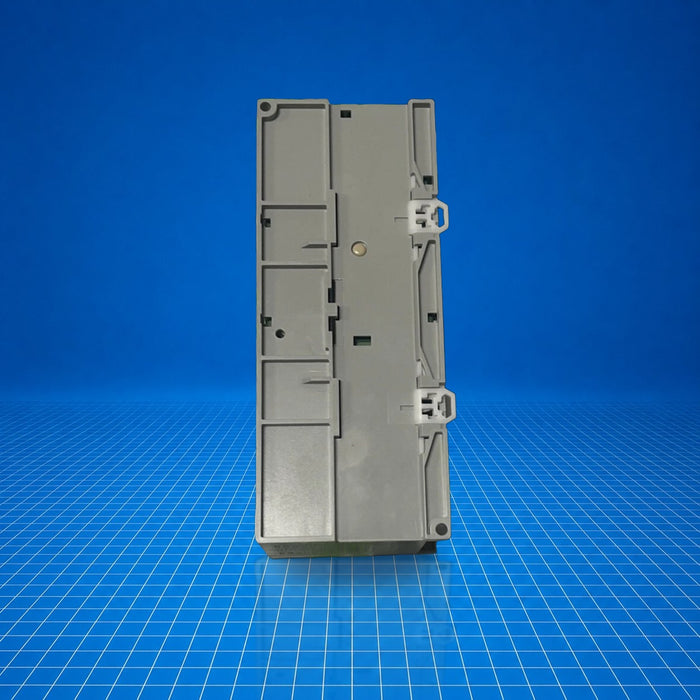

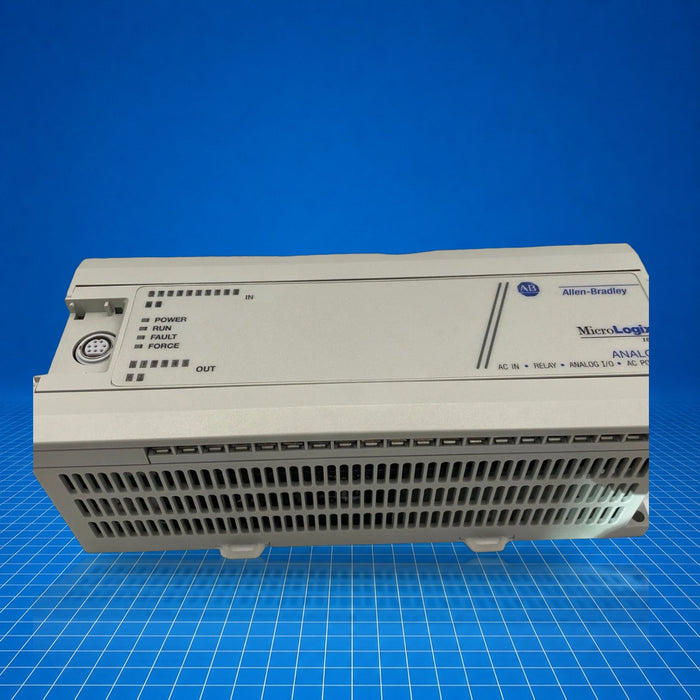

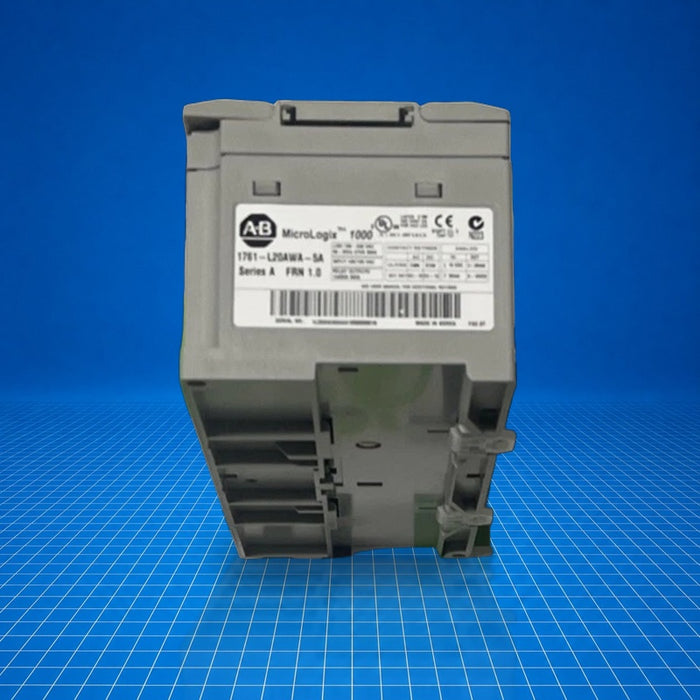

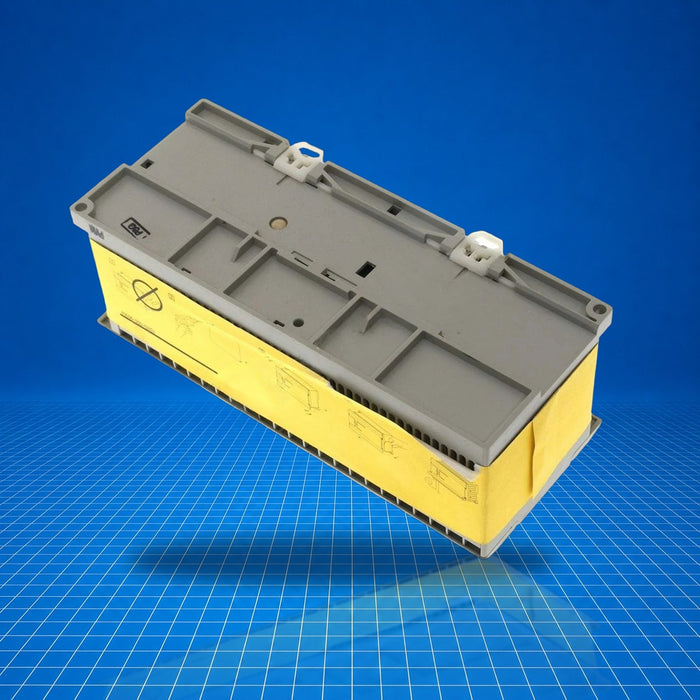

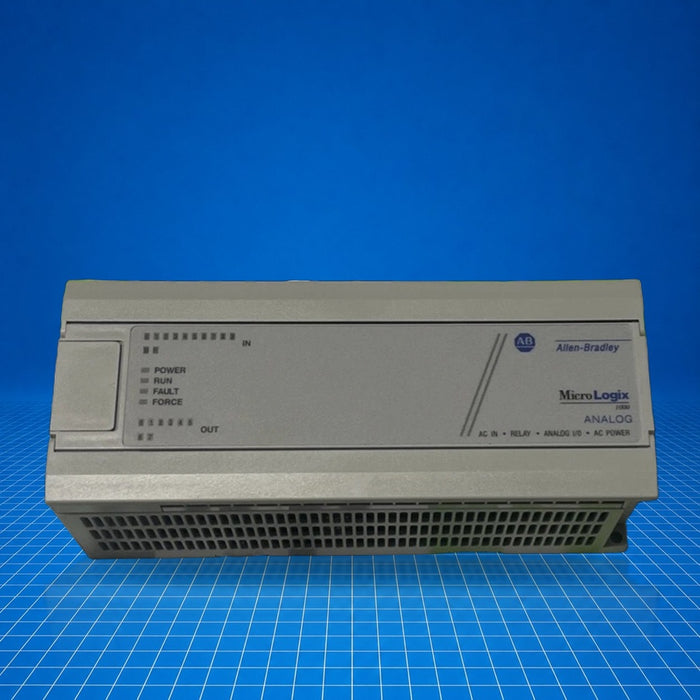

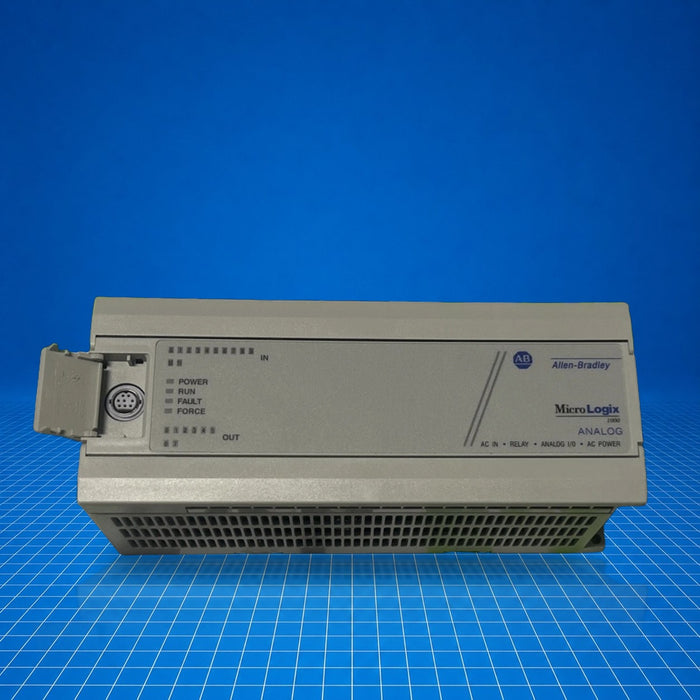

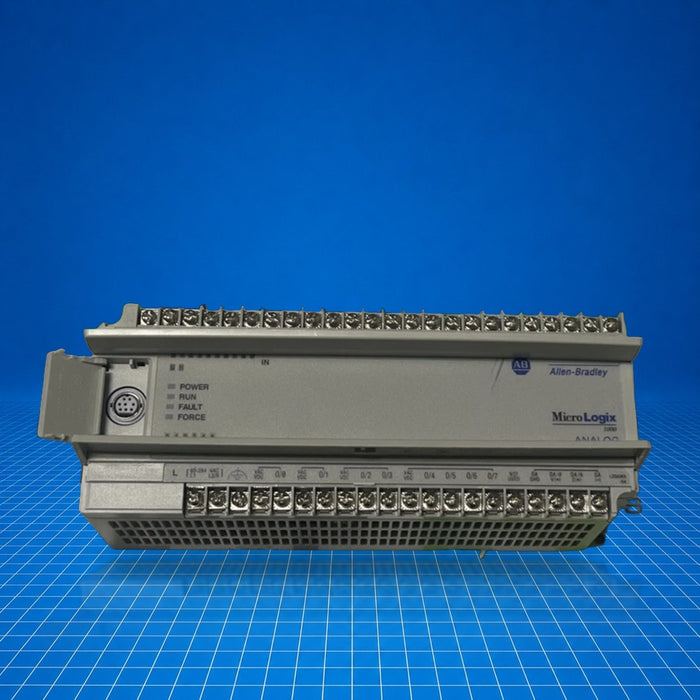

1761-L20AWA-5A Allen-Bradley
Original price
$469.77
-
Original price
$1,659.25
Original price
$469.77
$469.77
-
$1,659.25
Current price
$469.77
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1761-L20AWA-5A is a MicroLogix 1000 series programmable controller from Allen-Bradley. It integrates digital and analog I/O with an embedded RS-232 DF1 communication interface. Primarily powered from 120/240 V AC, it features 12 discrete AC inputs, 8 relay outputs, 4 analog inputs, and 1 analog output, suitable for small-scale control tasks, legacy machine maintenance, or discrete process control in industrial and OEM systems. As a discontinued model, it remains used for drop-in replacements in existing MicroLogix 1000 installations.
Best Suited For
- Drop-in replacement in existing MicroLogix 1000 systems
- Small machine control with mixed analog and discrete I/O
- Legacy system maintenance in OEM machinery
- Discrete process or packaging line control
- Low-volume custom control installations
Discrete I/O count
20 points (12 inputs, 8 outputs)
Analog I/O
4 inputs, 1 output
Power supply
120/240 V AC
Communication interface
RS-232 (DF1 protocol)
Memory
1 KB EEPROM (~737 instruction words, 437 data words)
Technical Specifications
I/O & Electrical
Discrete inputs
12 (120 V AC)
Relay outputs
8 relay outputs (24-125 V DC; 0-240 V AC)
Analog inputs
4 (-10.5 to +10.5 V DC; -21 to +21 mA)
Analog output
1 (0-10 V DC; 4-20 mA)
Communication & Power
Communication port
RS-232 (DF1)
Memory
1 KB EEPROM (~737 instruction words, 437 data words)
Power supply
120/240 V AC
Voltage range
79-132 V AC
Physical & Environmental
Weight
1.19 lb (0.54 kg)
Mounting
DIN-rail or panel (screw)
Operating temperature
0 to 55 °C (horizontal), 0 to 40 °C (vertical)
Non-operating temperature
-40 to 85 °C
Operating shock
10 g
Non-operating shock
20 g
Operating vibration
2.5 g
Non-operating vibration
5 g
Humidity
5 to 95 % non-condensing
Isolation rating
1500 V AC
