20-HIM-A6 Allen-Bradley
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

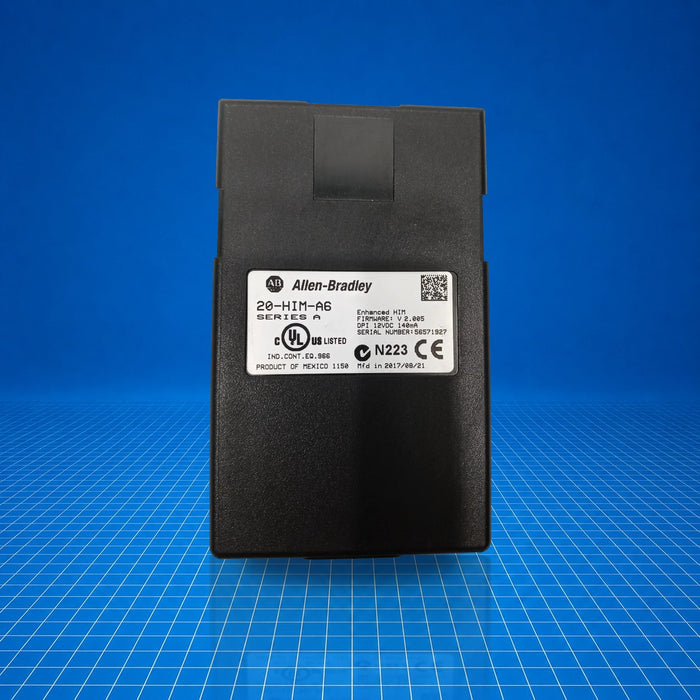

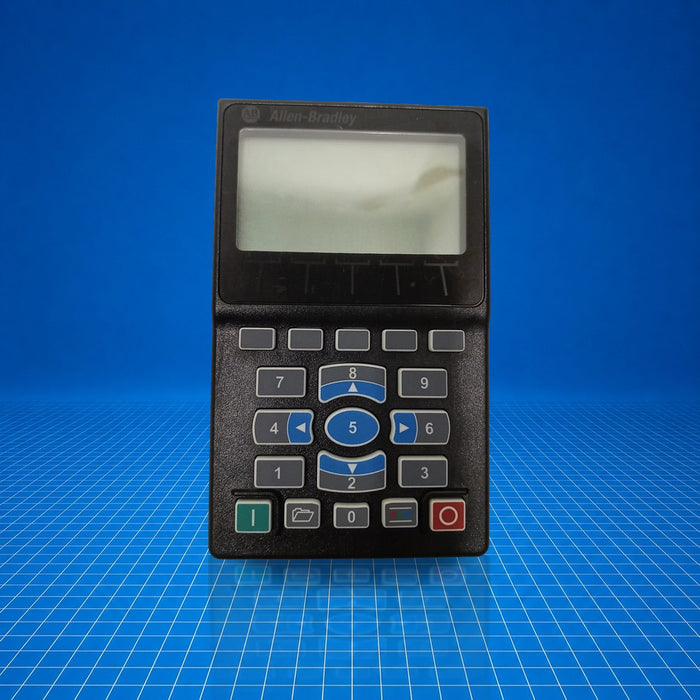

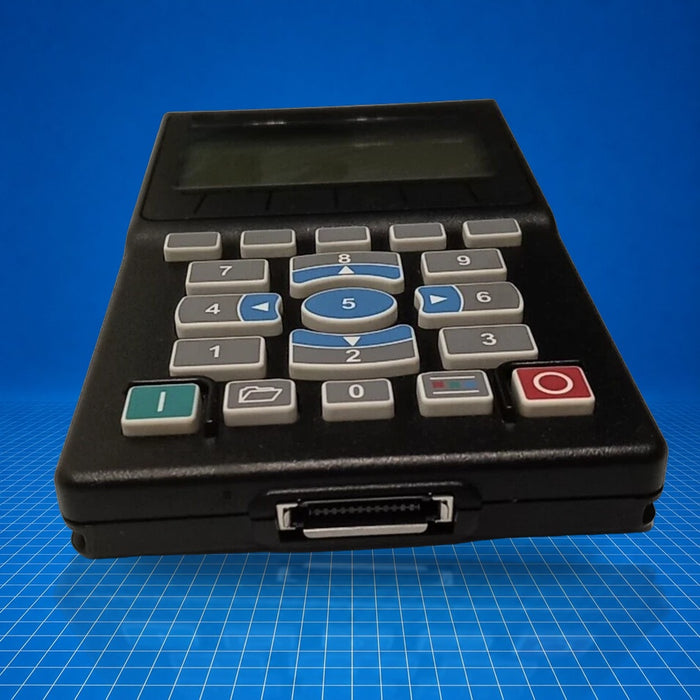

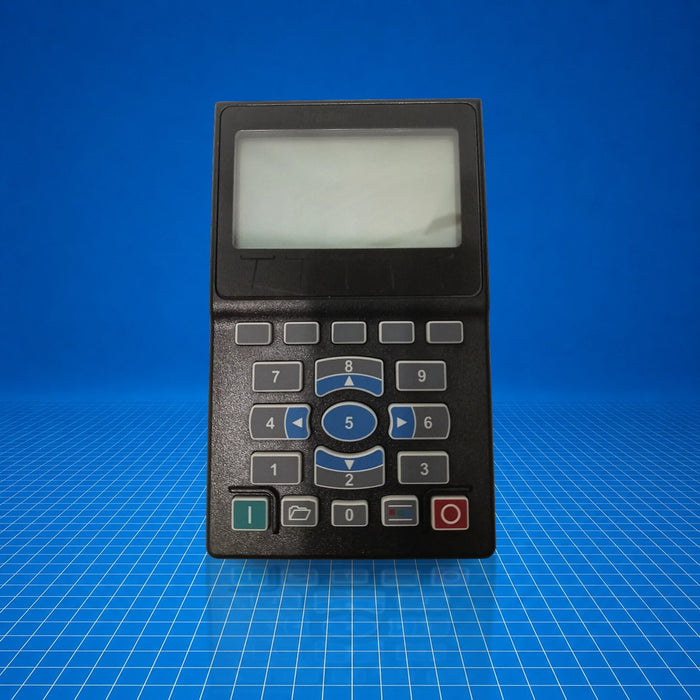

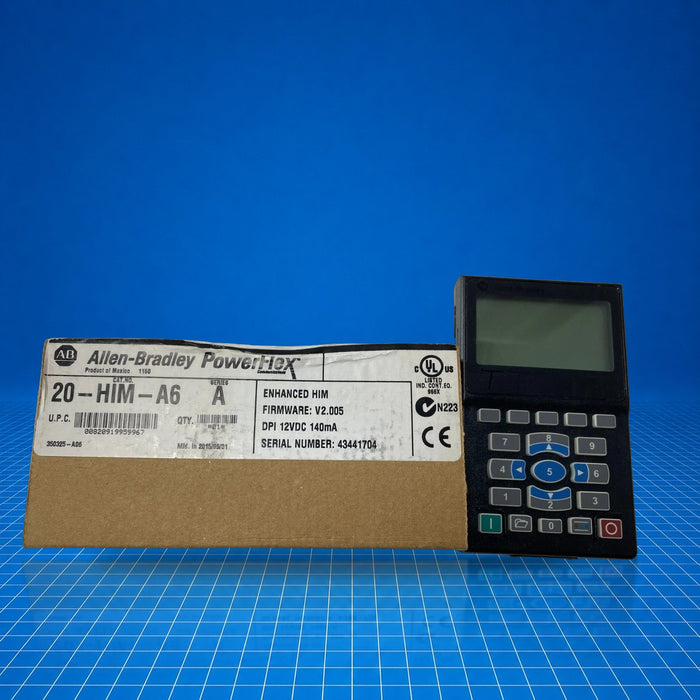

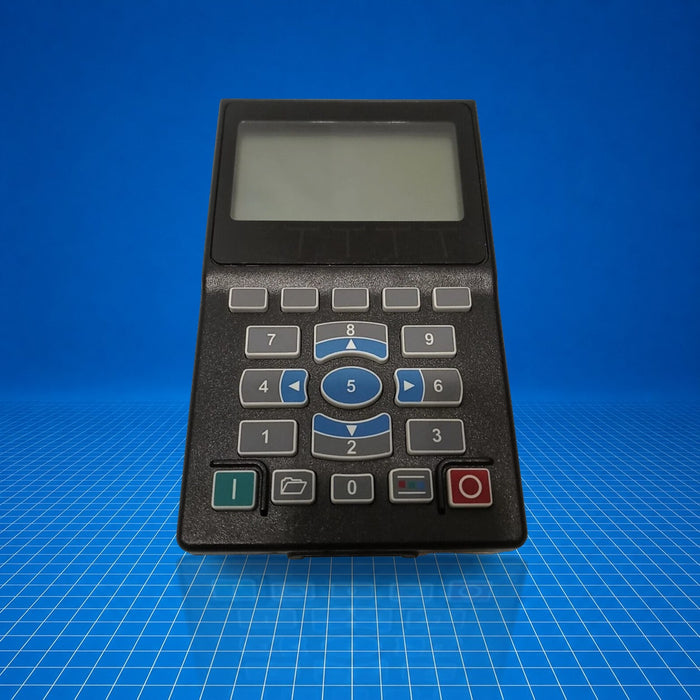

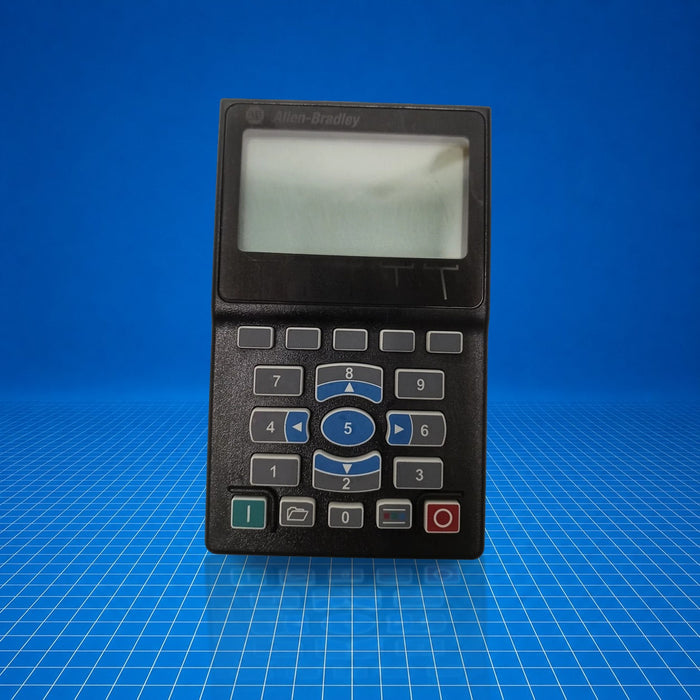

The 20-HIM-A6 is an Allen-Bradley human interface module in the PowerFlex 750-Series, designed for local, handheld or panel-mounted operation via DPI (Drive Peripheral Interface). It provides an enhanced LCD display and full numeric keypad for parameter access, monitoring, and diagnostics. The module connects directly to the host drive using DPI protocol at 125 kbps or 500 kbps. Commonly used in drive control environments where local adjustment and monitoring of PowerFlex drives is required.
Best Suited For
- PowerFlex 750-Series drive local control and monitoring
- On-machine interface during setup or maintenance
- Parameter configuration via DPI protocol
- Diagnostic display on variable frequency drive panels
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Product is category C2 per IEC 61800-3; includes UL 508C, c-UL (CSA C22.2 No. 14), CE, RCM, FCC ID, IC as of June 1 2026.
