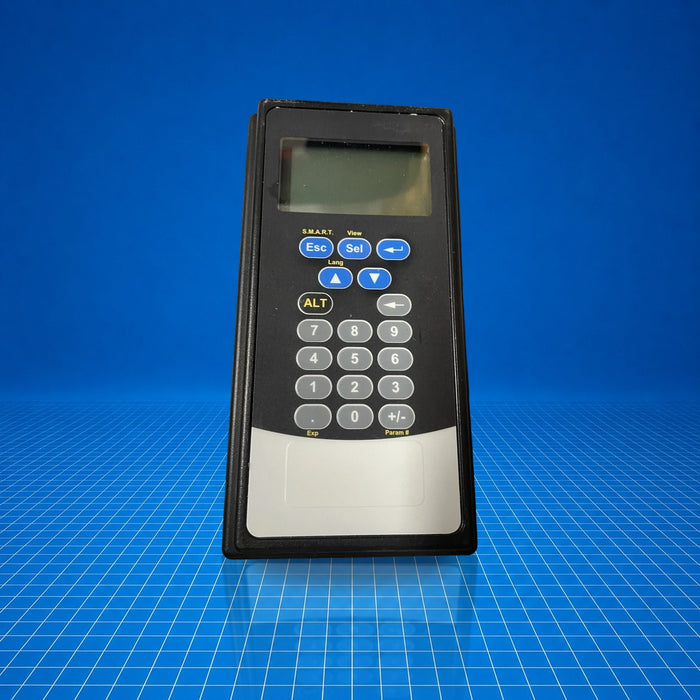

20-HIM-C5S Allen-Bradley

Name: 20-HIM-C5S Allen-Bradley
Brand: Allen Bradley
SKU: 20-HIM-C5S
Price: 330.0 USD
Availability: InStock

$330.00 - $792.00

$330.00

$330.00 - $792.00

$330.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 20-HIM-C5S is an Allen-Bradley PowerFlex 7-class Remote Small Human Interface Module (HIM). It provides a keypad and LCD display as a programming interface for PowerFlex AC drives, connecting remotely via a DPI (Drive Peripheral Interface) cable. Typical uses include parameter configuration, monitoring, and firmware updates of PowerFlex 70, 700, 700H, 700S, and 700L drives in control panels or maintenance workshops. It is the programmer-only variant of the PowerFlex HIM lineup. 20-HIM-C5S enables offline or remote configuration without requiring panel-mounted access.

Best Suited For

Remote programming of PowerFlex 70/700-series drives
Panel-mount or handheld use indoors (IP66/NEMA 4X/12)
Drive setup and parameter transfer (CopyCat)
Firmware updates over DPI link

Mounting / Interface

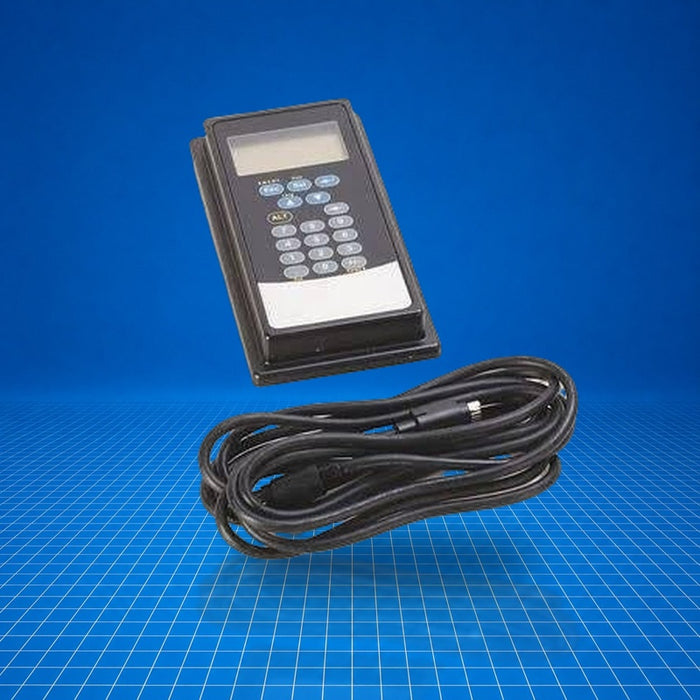

Remote, includes 3 m DPI cable

Protection rating

IP66 / NEMA 4X / 12 (indoor)

Communication

DPI, 125 kbps or 500 kbps

Operating temp

0 °C to 50 °C

Weight / Size

173 g; 180 × 93 × 25 mm

Technical Specifications

I/O & Electrical

Supply voltage

12 V DC (from host drive backplane)

Current draw

140 mA

Communication & Power

Communication protocol

DPI, 125 kbps or 500 kbps

Cable included

3 m DPI interface cable (1202-C30)

Physical & Environmental

Dimensions (H × W × D)

180 × 93 × 25 mm

Weight

173 g

Operating temperature

0 °C to 50 °C

Storage temperature

-40 °C to 85 °C

Ingress protection

IP66 / NEMA 4X / 12 (indoor use only)
