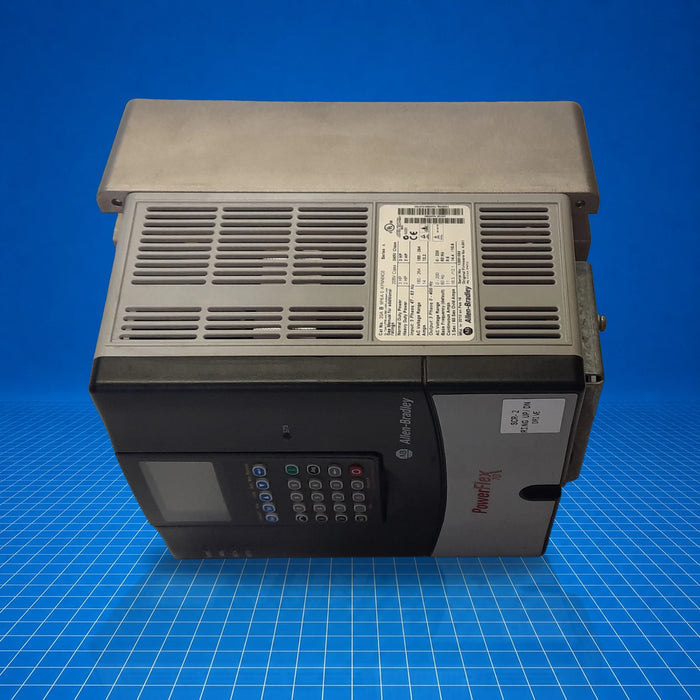

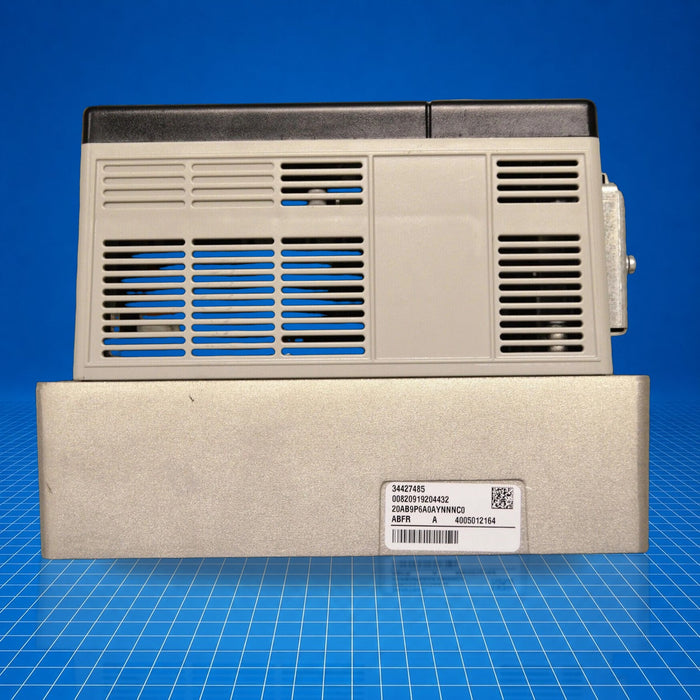

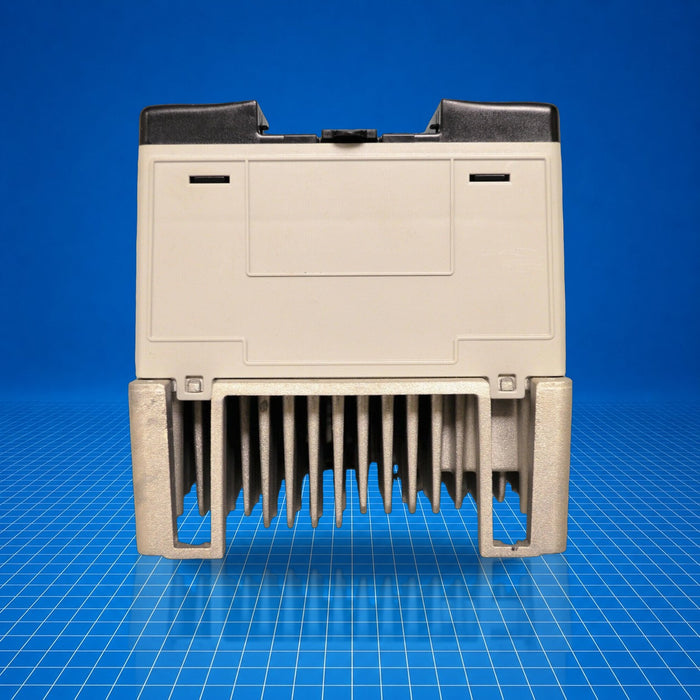

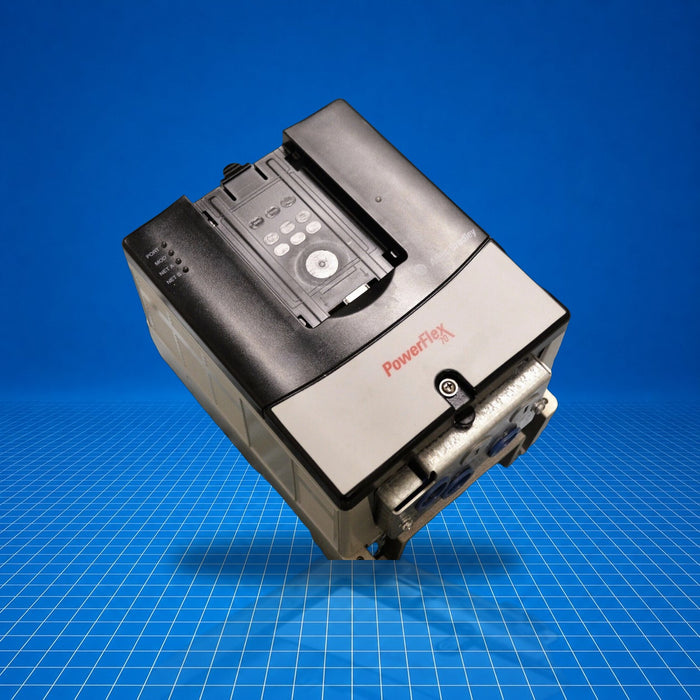

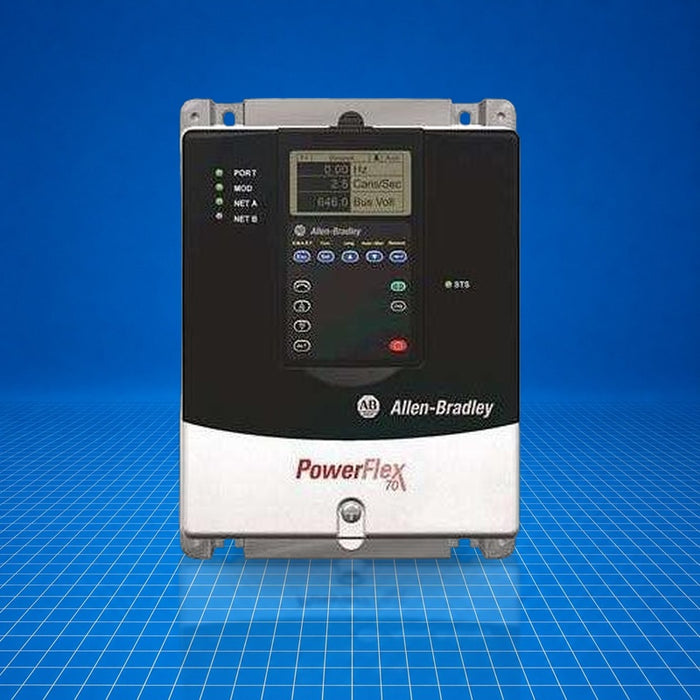

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
20AB9P6A0AYNNNC0 Allen-Bradley
Original price
$893.75
-
Original price
$3,675.00
Original price
$893.75
$893.75
-
$3,675.00
Current price
$893.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 20AB9P6A0AYNNNC0 is a PowerFlex 70 series AC drive (variable frequency drive) designed for three-phase motor control. It delivers approximately 2.2 kW (3 Hp) at 200-240 V AC and supports Enhanced Control with 24 V I/O, a blank human-interface module, brake IGBT installed and internal dynamic brake resistor, and includes EMC filter and common-mode choke. It is used for motor speed and torque control in industrial machinery, conveyors, pumps, fans and other variable-speed applications, providing precise drive regulation.
Best Suited For
- Motor control (up to 3 Hp) in three-phase systems
- Speed/torque regulation using Enhanced Control with 24 V I/O
- Applications requiring dynamic braking (brake IGBT + internal resistor)
- Installation in panel-mounted IP20/NEMA Type 1 enclosures
Rated output current
9.6 A @ 240 V AC, 3-phase
Enclosure type
Panel mount - IP20 / NEMA Type 1
Frame size
B
Brake IGBT + internal resistor
Installed
Control mode
Enhanced control with 24 V I/O
Technical Specifications
I/O & Electrical
Output current (continuous)
9.6 A @ 240 V AC, 3-phase
Input power rating
5.1 kVA @ 240 V AC, 3-phase
Circuit breaker rating, max
40 A @ 208 V AC, 3-phase
Motor circuit protector rating, max
30 A @ 208 V AC, 3-phase
Input current rating
14 A @ 208 V AC, 3-phase
Bus voltage, nominal
324 V DC @ 240 V
Bus undervoltage shutoff
153 V DC @ 240 V
Bus overvoltage trip
405 V DC @ 240 V
AC input undervoltage trip
138 V AC @ 240 V
AC input overvoltage trip
285 V AC @ 240 V
Communication & Power
Control options
Enhanced control with 24 V I/O
Filter options
With EMC Filter & ComMode Choke
Communication module
None integrated
Brake IGBT
Installed
Internal dynamic brake resistors
62 Ω
Physical & Environmental
Enclosure type
Panel mount - IP20 / NEMA Type 1
Dimensions (H × W × D)
239.8 × 171.7 × 203.3 mm
Weight
3.61 kg
Ambient temperature, max
0…50 °C (IP20 Type 1)
Storage temperature
-40 °C
Altitude, max
1000 m (3300 ft)
Relative humidity
5…95% non-condensing
Shock
15 G peak, 11 ms duration
Vibration
0.152 mm displacement, 1 G peak
