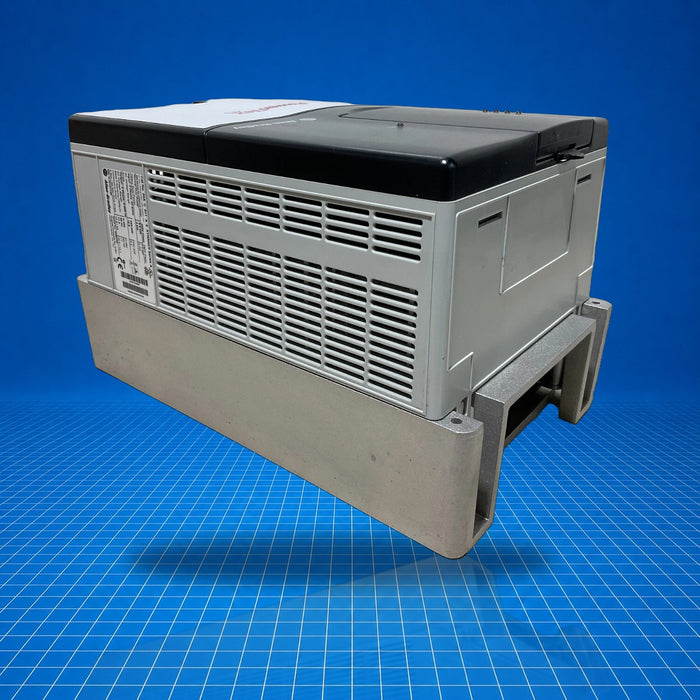

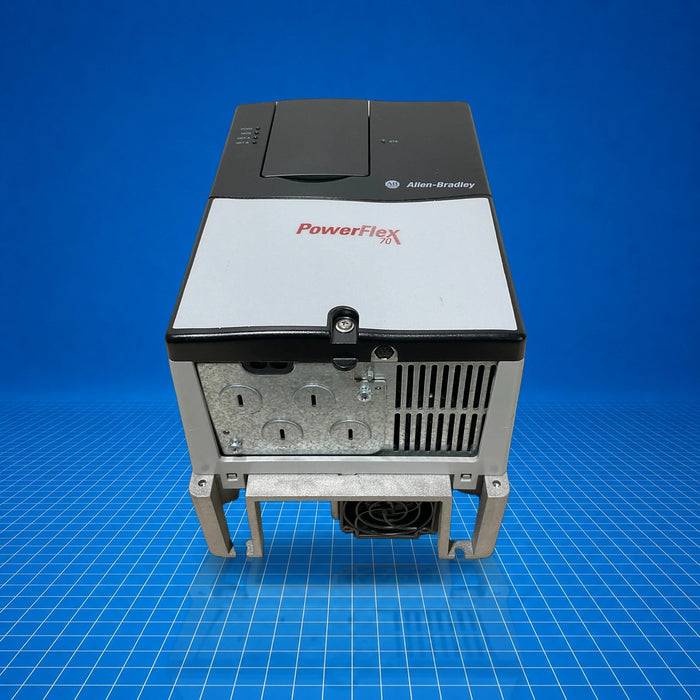

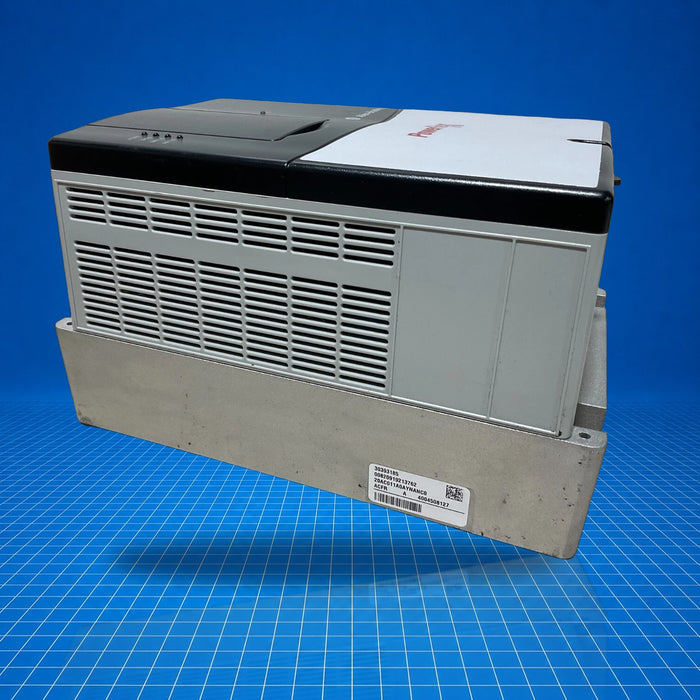

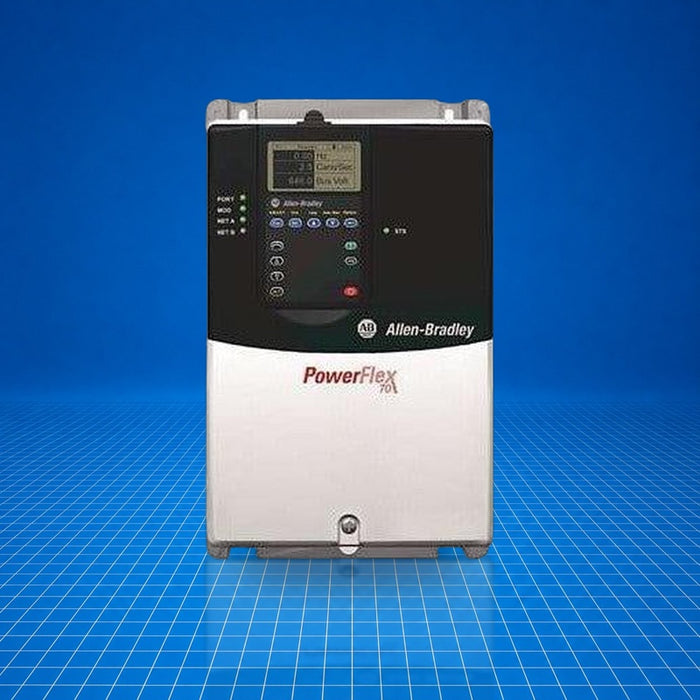

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
20AC011A0AYNANC0 Allen-Bradley
Original price
$3,080.00
-
Original price
$3,300.00
Original price
$3,300.00
$3,080.00
-
$3,300.00
Current price
$3,300.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley PowerFlex 70 AC drive (catalog number 20AC011A0AYNANC0) is a three-phase adjustable-frequency drive designed for motor speed and torque control in industrial systems. Belonging to the PowerFlex 70 drive family, this unit supports normal-duty and heavy-duty applications at 400 V AC with enhanced control and built-in braking capability. It is typically used for panel-mounted drive control in manufacturing, material handling, pumping systems, and similar automation installations. This part number is configured with a blank human-interface module (no display) and no communication or feedback options.
Best Suited For
- Panel-mounted motor control at 400 V AC
- Applications requiring braking without resistor
- Enhanced control schemes (e.g. V/Hz or sensorless vector)
- Replacement in existing PowerFlex 70 C-frame installations
Voltage
400 V AC (3-phase)
Current rating
11.5 A
Power output
5.5 kW (7.5 HP)
Frame size
C (Panel-mount, IP20/NEMA 1)
Control type
Enhanced (no feedback, blank cover)
Technical Specifications
I/O & Electrical
Voltage
400 V AC (three-phase)
Current rating
11.5 A
Output power
5.5 kW (7.5 HP)
Communication & Power
Control type
Enhanced control
Human-interface module
Blank cover (no HIM)
Brake
With brake (no resistor)
Communication module
None
Feedback
No feedback
Physical & Environmental
Frame size
C
Enclosure rating
IP20 / NEMA UL Type 1
Dimensions (W×H×D)
185 mm × 300 mm × 179.8 mm
Weight
6.89 kg
Shock
15 G peak, 11 ms (±1 ms)
Vibration
0.152 mm displacement, 1 G peak
