20AC030A0AYNANC0 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

20AC030A0AYNANC0 Allen-Bradley

$2,790.00 - $3,937.50
$3,937.50
$2,790.00 - $3,937.50
$3,937.50
Surplus - Tested (With Warranty)
Need a Specific Revision?
$3,937.50
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$2,790.00
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

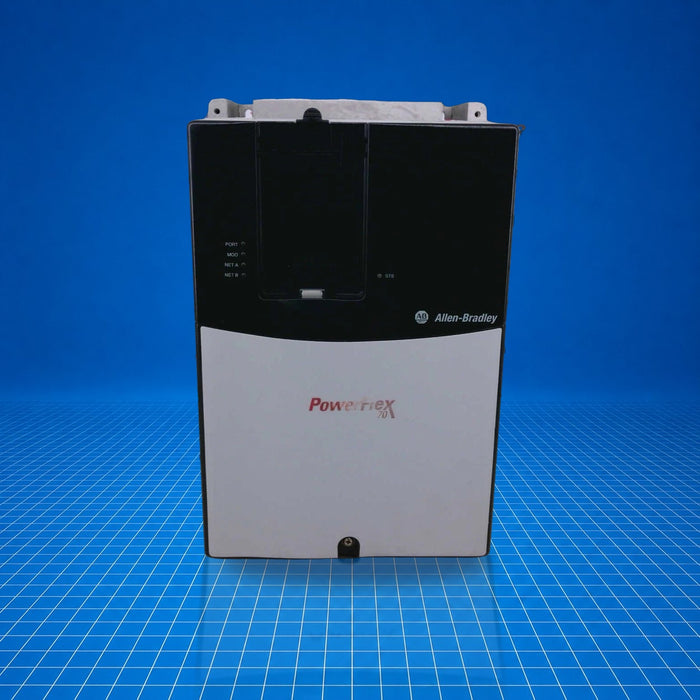

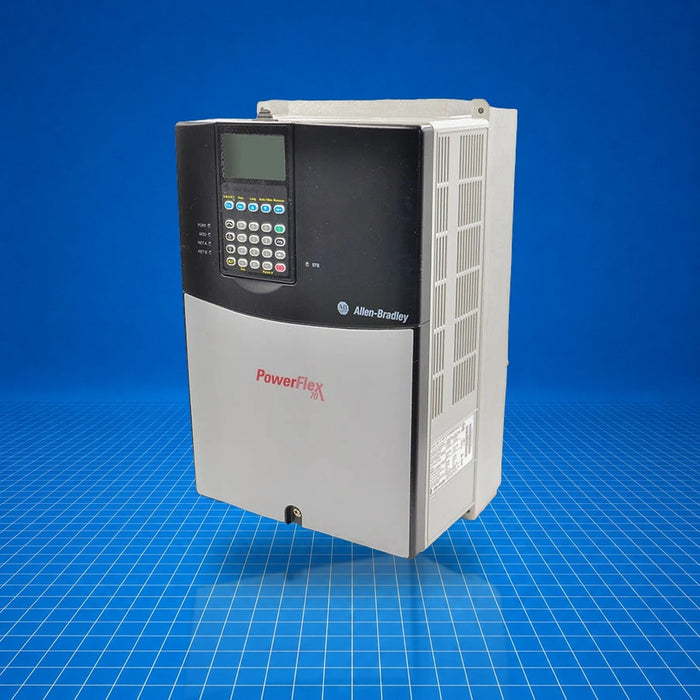

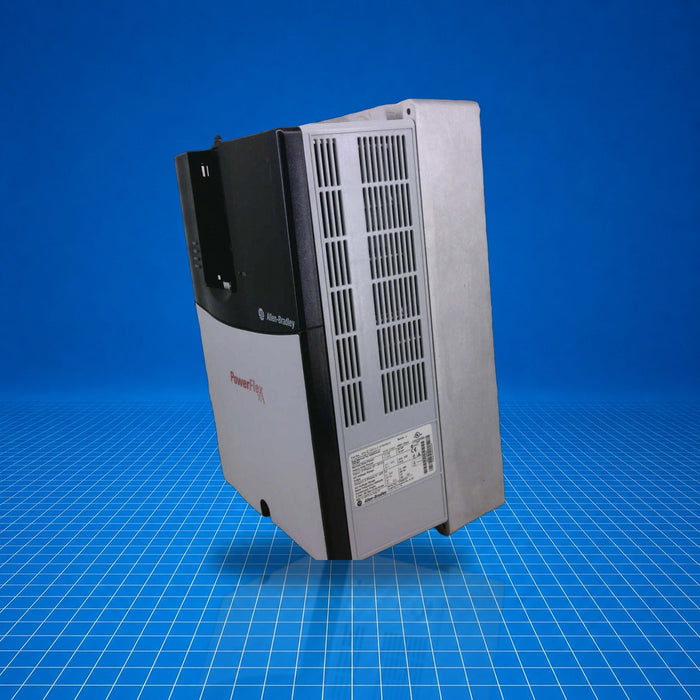

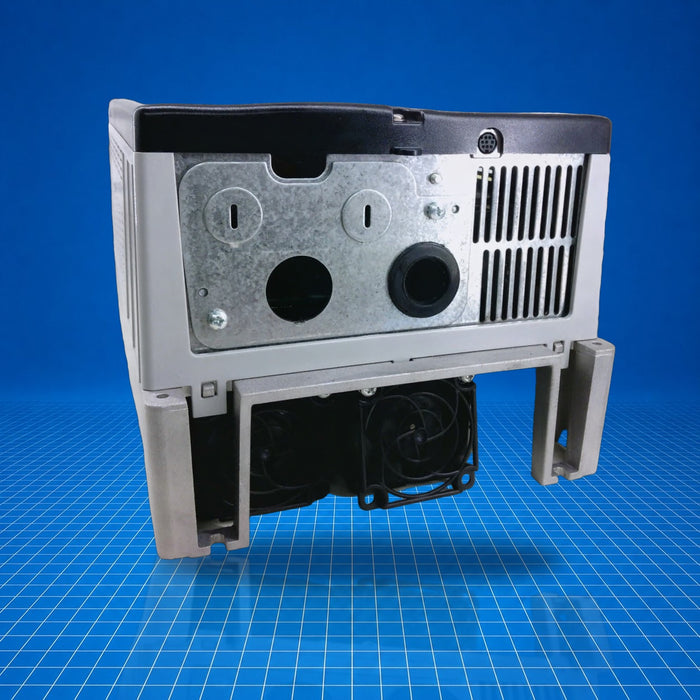

The Allen-Bradley PowerFlex 70 AC Drive (catalog 20AC030A0AYNANC0) is a three-phase variable frequency drive rated for 30 A output (15 kW normal-duty, 11 kW heavy-duty) for 400 V AC motor control. It provides enhanced control with built-in 24 V I/O, a brake IGBT, and conforms to IP20/NEMA Type 1 panel-mount enclosure. The drive is used for speed and torque control of three-phase induction motors in industrial automation systems, such as conveyors, pumps, fans, and general machinery requiring adjustable motor control. 20AC030A0AYNANC0 is part of the PowerFlex 70 D-frame family.

Best Suited For

  • Three-phase motor speed control
  • Conveyor and pump applications
  • Panel-mount installation, IP20 environments
  • Enhanced control with 24 V I/O integrations
Voltage
400 V AC, 3-phase
Output Current (continuous)
30 A
Frame Size
D, Panel-mount IP20 / NEMA Type 1
Control Type
Enhanced control with 24 V I/O
Brake IGBT
Installed

Technical Specifications

I/O & Electrical

Voltage (input)
400 V AC, 3-phase
Output current, continuous
30 A
Output current, 1 min
33 A
Output current, 3 s
45 A
Input current rating
30.3 A
Circuit breaker rating, max
120 A @ 400 V AC, 3-phase
Motor circuit protector rating, max
50 A @ 400 V AC, 3-phase
Dual element time-delay fuse rating
40…60 A @ 400 V AC, 3-phase
Non-time-delay fuse rating
40…120 A @ 400 V AC, 3-phase

Communication & Power

Control I/O
Enhanced control with 24 V I/O
Internal communication module
None
Supporting protocols
EtherNet/IP, DeviceNet, TCP/IP, PROFIBUS, CAN, Modbus

Physical & Environmental

Enclosure
Panel-mount IP20 / NEMA Type 1, conformal coating
Frame Size
D
Dimensions (H×W×D)
350 mm × 219.9 mm × 210.7 mm
Weight
9.13 kg
Operating temperature, max
50 °C (IP20, NEMA Type 1, without derating)
Storage temperature
-40 °C
Altitude
1000 m maximum without derating
Shock
15 G peak, 11 ms
Vibration
0.152 mm displacement, 1 G peak

Certifications

UL 508CCE

Certified UL 508C (file E59272). Pollution degree per EN 61800-5-1 design supports pollution degree 1; NEMA Type 1 required for higher degrees.
