20AC2P1A0AYNANC0 Allen-Bradley

Original price $1,319.97 - Original price $3,240.00
Original price
$1,319.97
$1,319.97 - $3,240.00
Current price $1,319.97
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,319.97
5 in stock
New / Open-Box Surplus
Need a Specific Revision?
$3,240.00
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

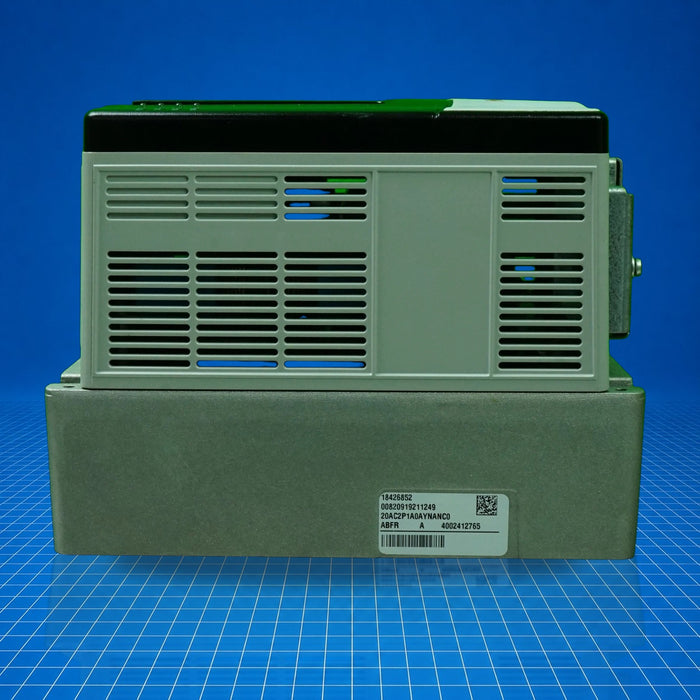

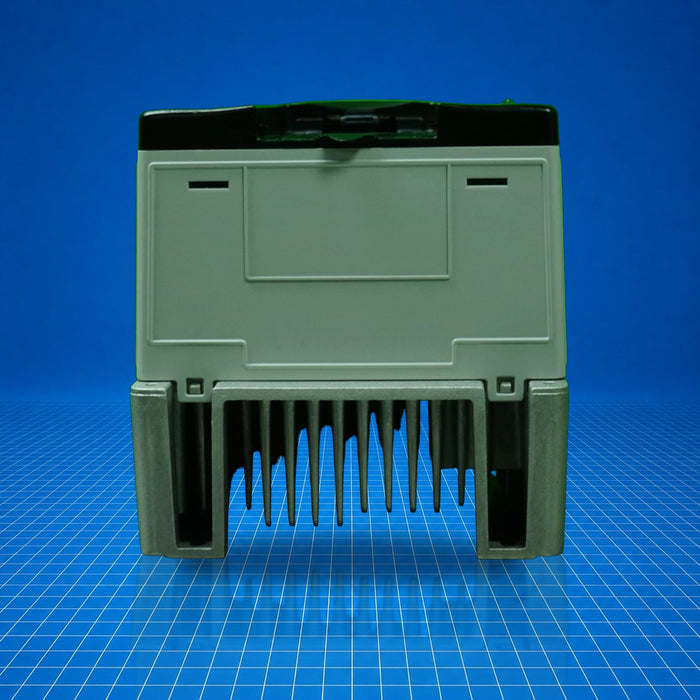

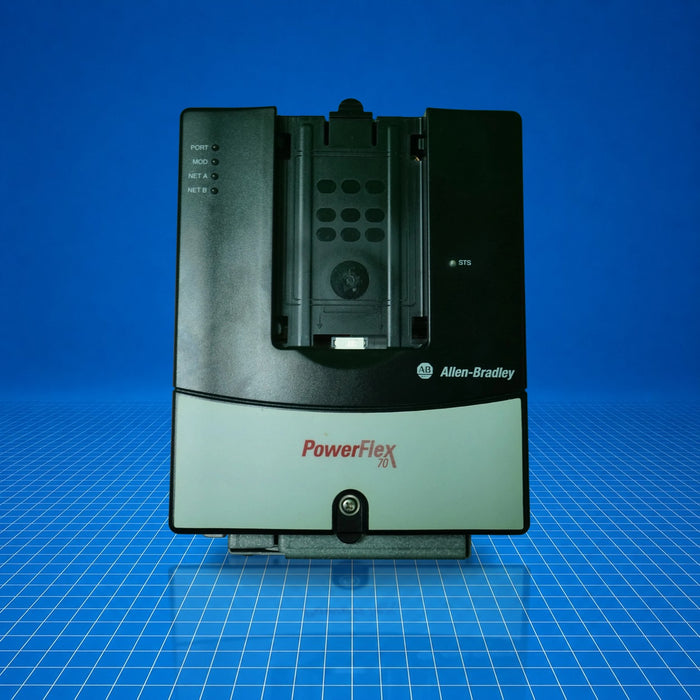

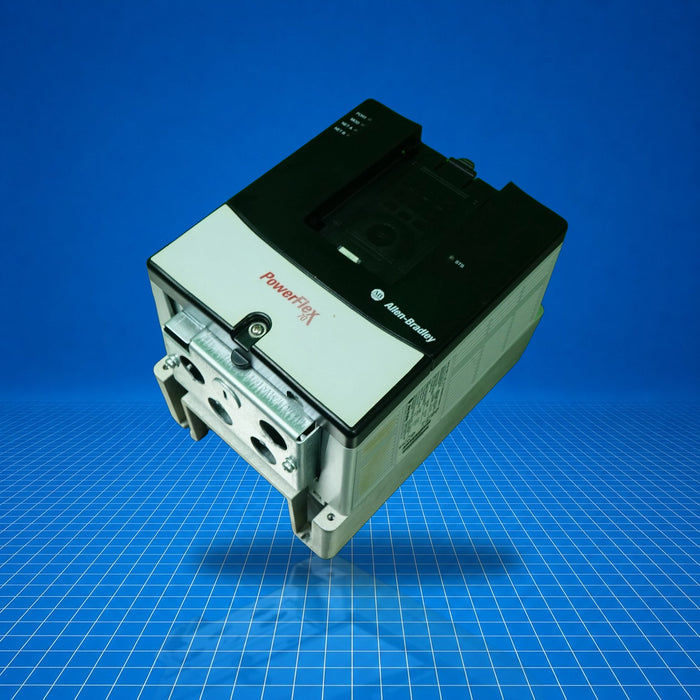

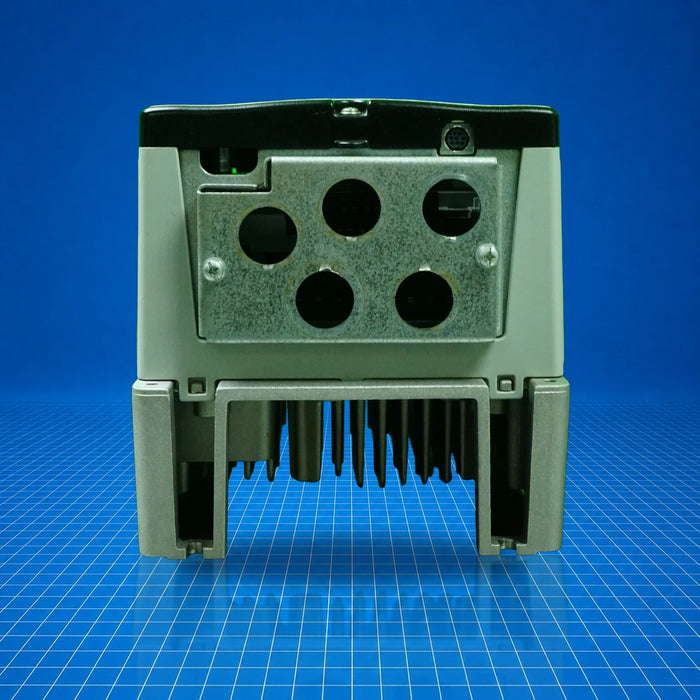

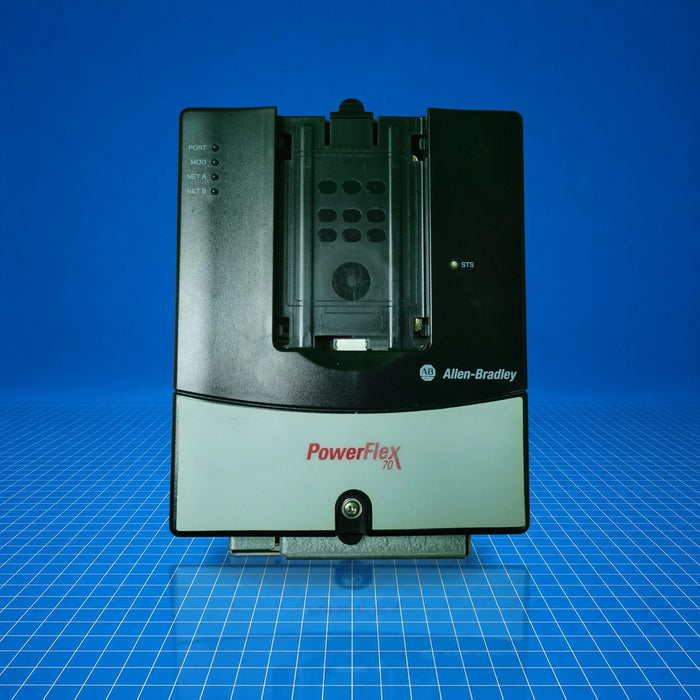

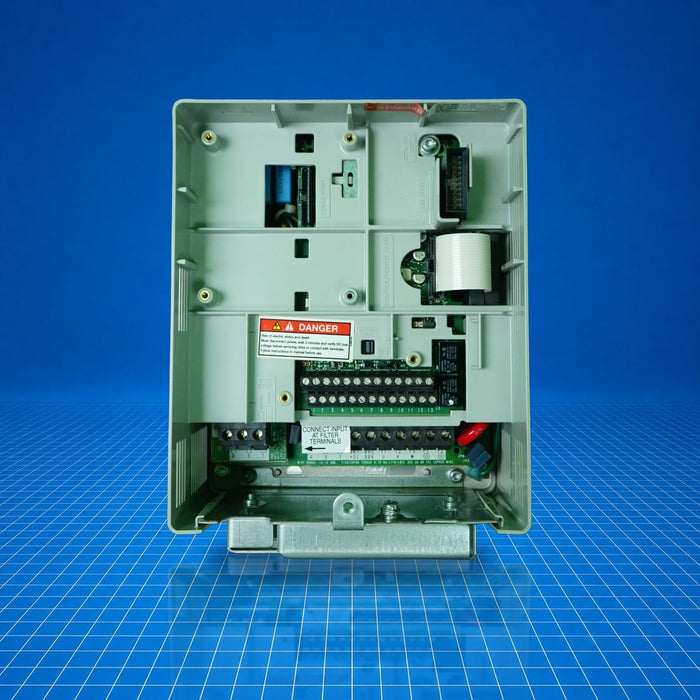

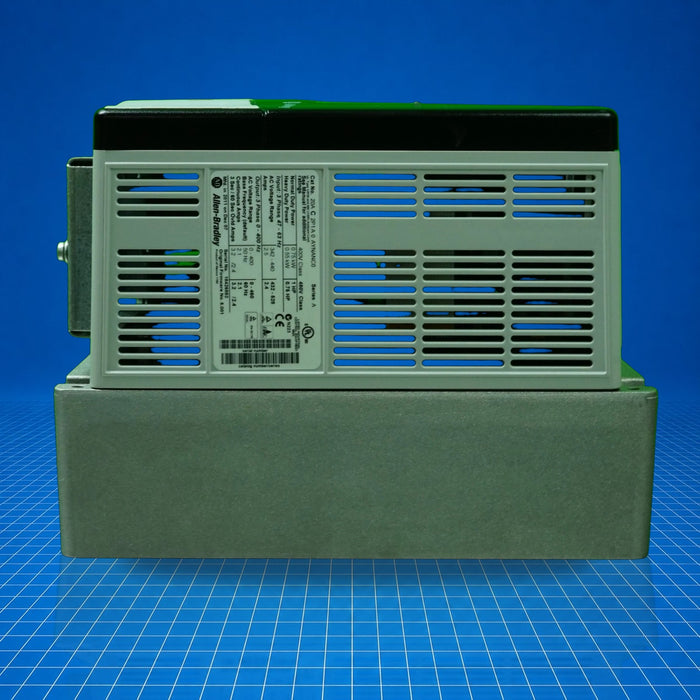

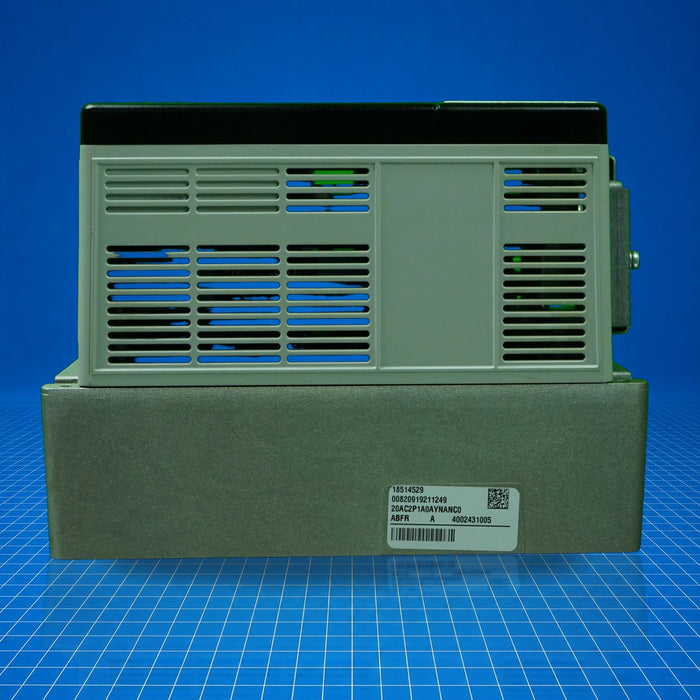

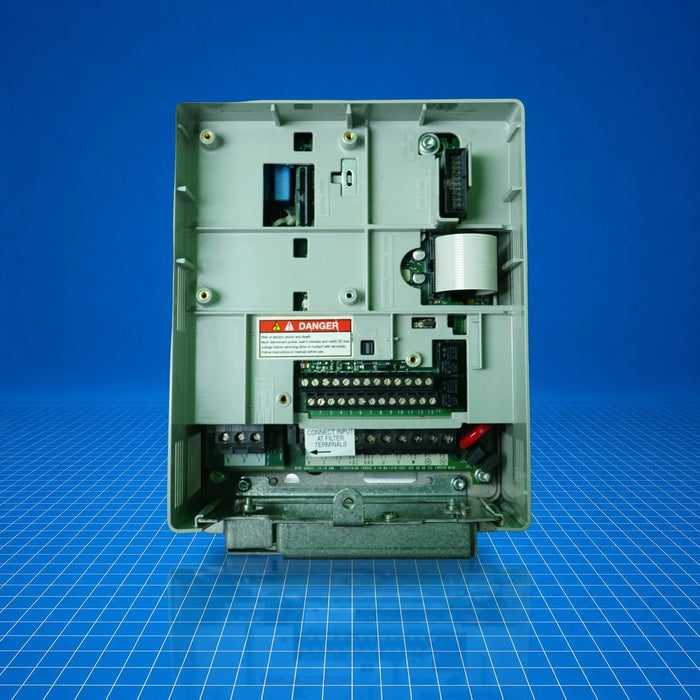

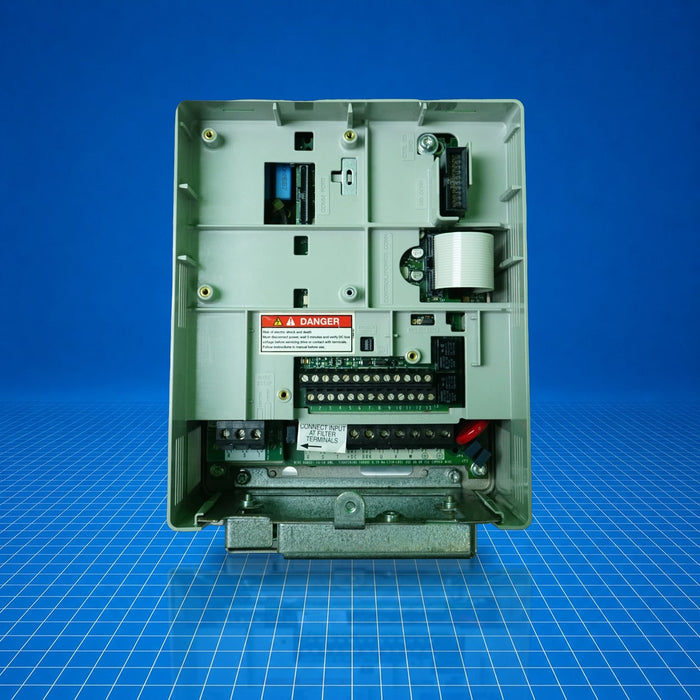

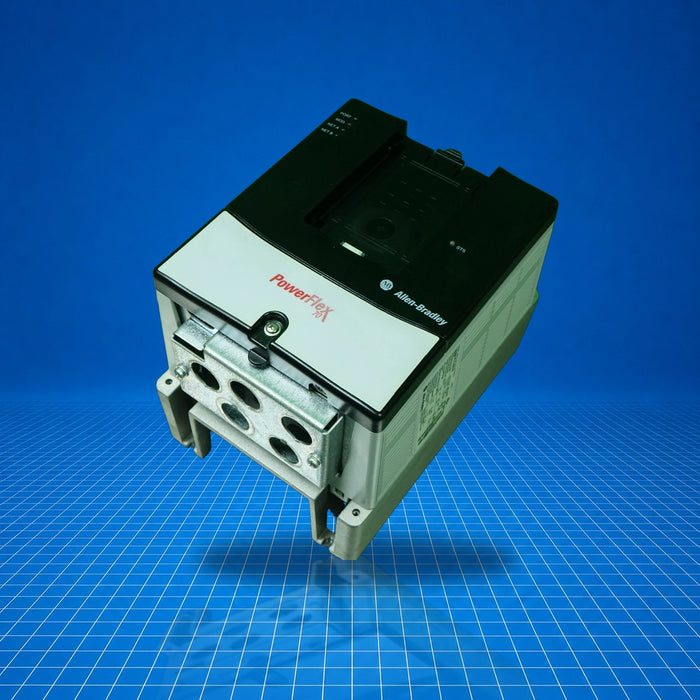

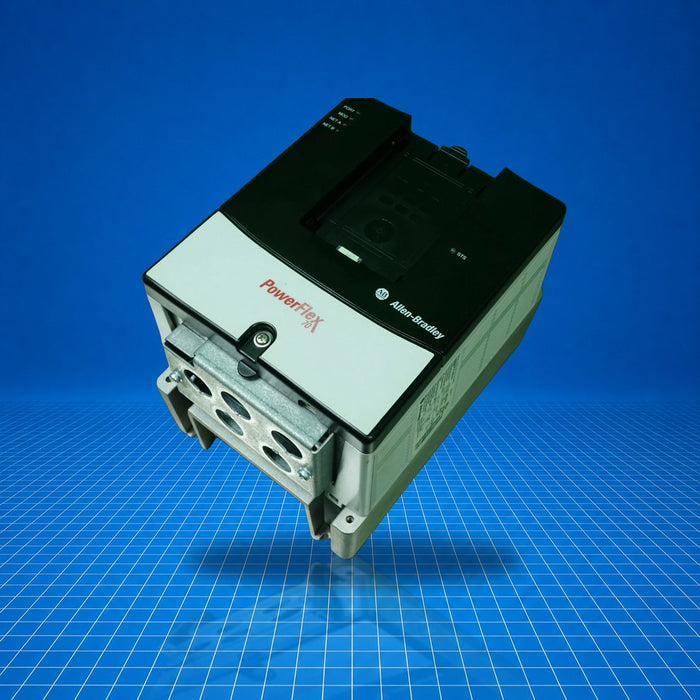

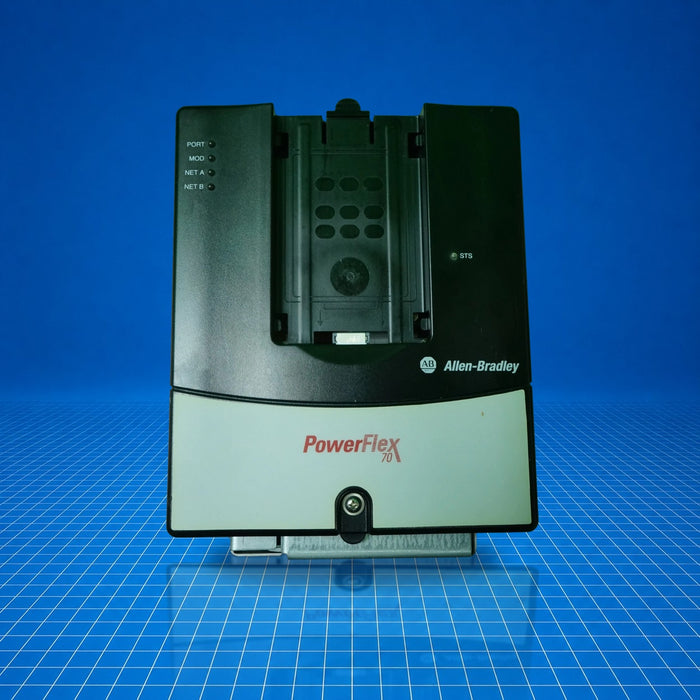

The Allen-Bradley 20AC2P1A0AYNANC0 is a PowerFlex 70 series three-phase adjustable-frequency AC drive, frame size A, offering enhanced control functionality. It modulates motor speed and torque via vector control (no encoder feedback) in industrial systems, typically managing fractional-horsepower motors (0.75 kW / 1 hp) in conveyor, pump, fan, or general machine-automation applications. The part number appears as 20AC2P1A0AYNANC0 within Boe-style drive offerings.

Best Suited For

  • Variable-speed control of fractional-horsepower three-phase motors
  • Panel-mounted installations in control cabinets (IP20/NEMA 1)
  • Applications requiring vector control without encoder feedback
  • Industrial environments demanding built-in EMC filtering and dynamic braking
Rated output current
2.1 A
Voltage rating (three-phase)
380…480 V AC
Power rating
0.75 kW (1 hp)
Enclosure rating
IP20 / NEMA Type 1
Frame size
A

Technical Specifications

I/O & Electrical

Output current, continuous
2.1 A @ 400 V AC, 3-phase
Output current, 1 min
2.4 A @ 400 V AC, 3-phase
Output current, 3 s
3.2 A @ 400 V AC, 3-phase
Input current rating
2.5 A @ 400 V AC, 3-phase
Short-circuit rating, max
200 000 A symmetrical

Communication & Power

Input power rating
1.8 kVA @ 400 V AC, 3-phase
Logic control ride-thru
0.5 s minimum, 2 s typical
Efficiency
97.5% at rated current, nominal line volts
Control method
Sensorless vector and V/Hz; enhanced control
Carrier frequency options
2-10 kHz (standard control); 2, 4, 8, 12 kHz (vector control)

Physical & Environmental

Dimensions (W × H × D)
122.4 × 225.7 × 179.8 mm
Weight
2.71 kg (approx)
Ambient temperature, operating
0…50 °C (32…122 °F) without derating
Storage temperature
-40 °C
Humidity
5…95% non-condensing
Altitude
≤ 1000 m (3300 ft) without derating

Certifications

Eurasian Economic CommunityCEKorean KCLloyd's RegisterAustralian RCMUL ListedSafetySeismicSemiconductor Industries ImmunityUNITED KINGDOM Safety Certificate
