20AC3P5A0AYNANC0 Allen-Bradley

Name: 20AC3P5A0AYNANC0 Allen-Bradley
Brand: Allen Bradley
SKU: 20AC3P5A0AYNANC0
Price: 825.0 USD
Availability: InStock

$825.00 - $3,300.00

$825.00

$825.00 - $3,300.00

$825.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

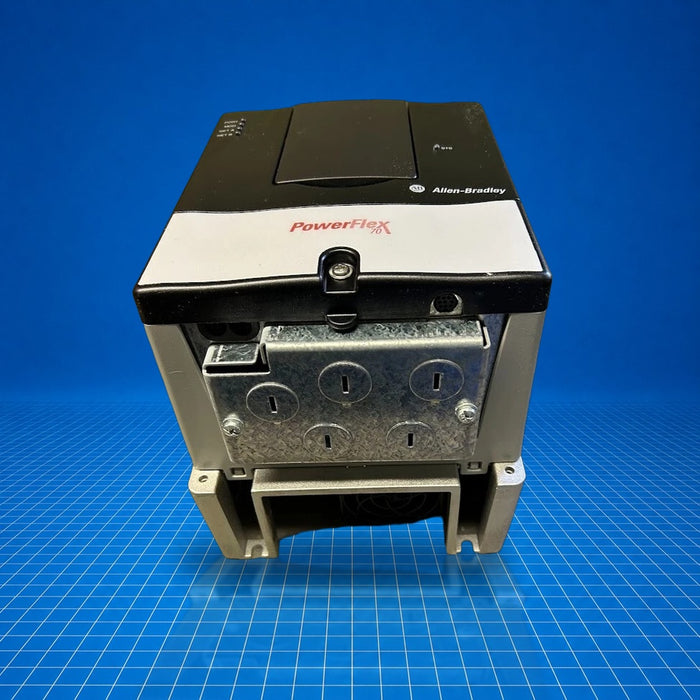

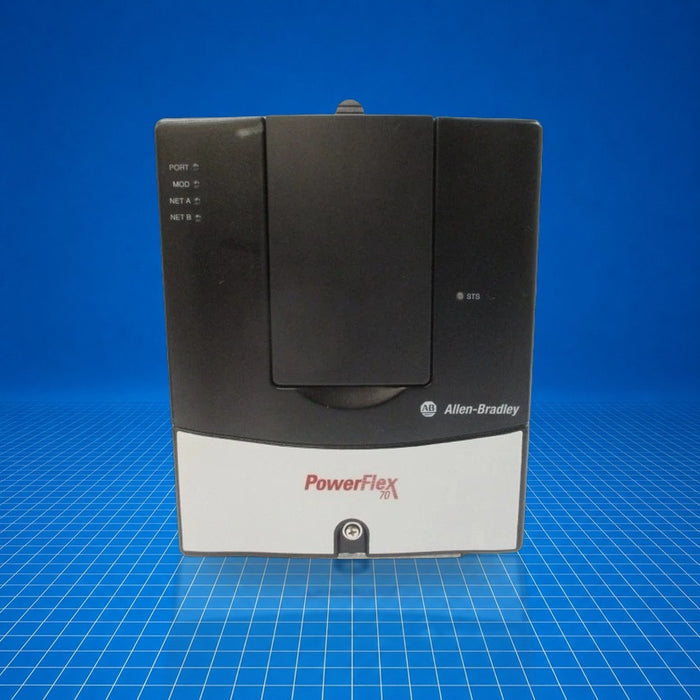

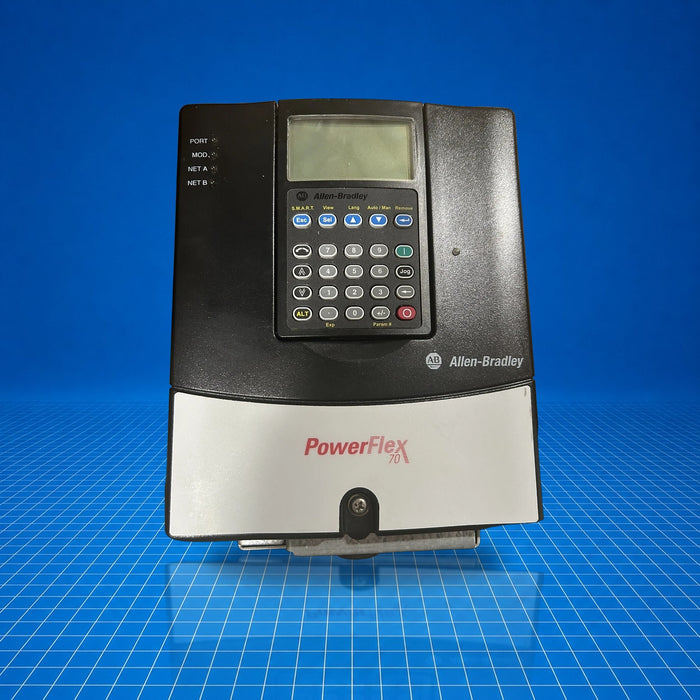

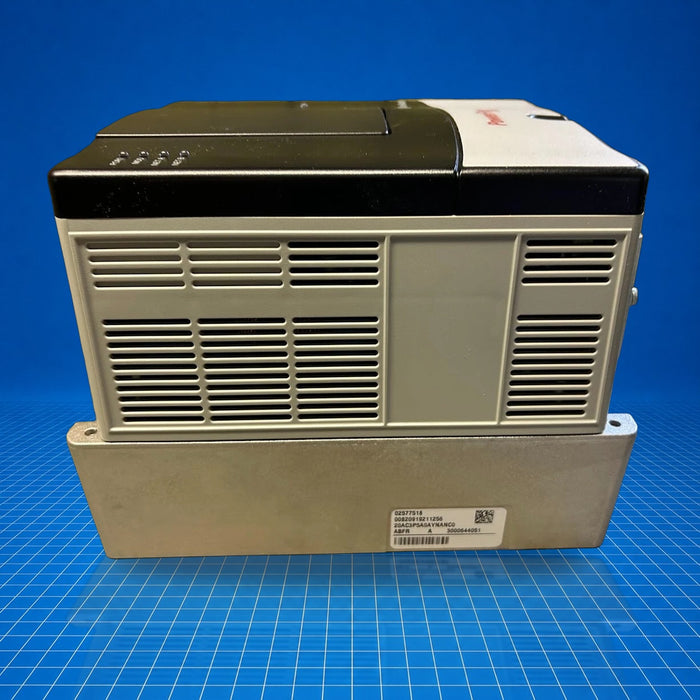

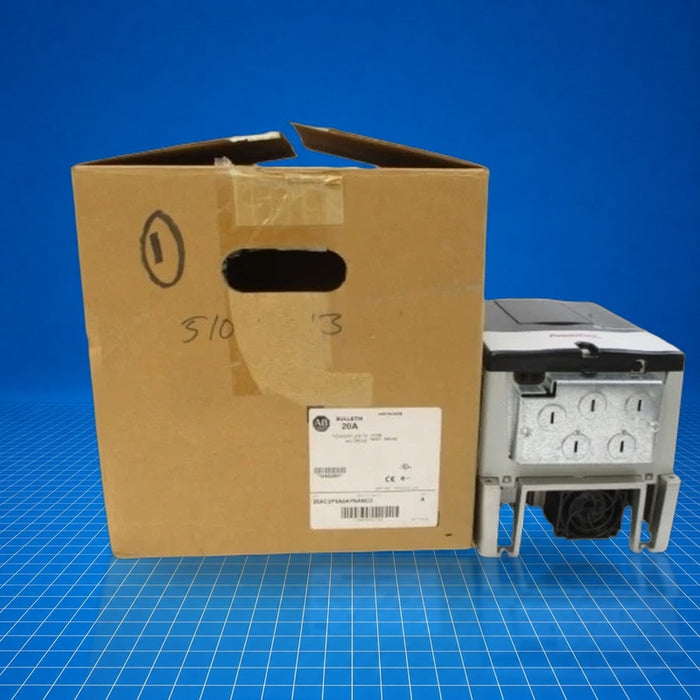

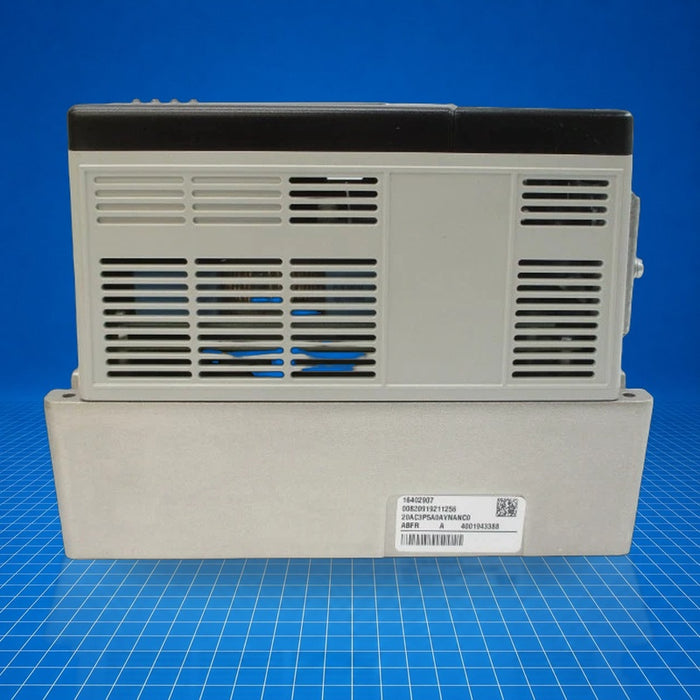

The Allen-Bradley PowerFlex 70 AC Drive, catalog number 20AC3P5A0AYNANC0, is a three-phase, 400 VAC variable-frequency drive from the PowerFlex 70 series intended for motor speed and torque control in industrial automation. This unit delivers 3.5 A continuous (1.5 kW) output and includes enhanced control logic, brake IGBT, and conformal coating. It mounts in panel environments (IP20/NEMA Type 1), typically used in conveyor drives, pumps, fans, and machine tool spindles where precise motor regulation and braking are required. Part number 20AC3P5A0AYNANC0 is referenced twice here.

Best Suited For

Motor speed control in conveyors or pumps
Applications requiring integrated braking via IGBT
Panel-mounted drives in enclosed cabinets
Systems requiring enhanced control without feedback
Replacement or refurbishment in existing PowerFlex 70 installations

Output current

3.5 A (continuous)

Voltage rating

400 VAC, 3-phase

Enclosure rating

IP20 / NEMA Type 1

Control type

Enhanced Control (no feedback)

Brake

Brake IGBT installed

Technical Specifications

I/O & Electrical

Input voltage

400 VAC, 3 phase

Output current

3.5 A continuous; 4.5 A 1 min; 6 A 3 s

Motor rating

1.5 kW normal duty; 1.1 kW heavy duty

Communication & Power

Control method

Enhanced Control with 24 V I/O

Communication module

None

Physical & Environmental

Enclosure

Panel mount - IP20 / NEMA Type 1, conformal coating

Operating ambient

0 … 50 °C (32 … 122 °F) without derating

Storage temperature

-40 °C

Humidity

5 … 95 % non-condensing

Dimensions (H × W × D)

225.7 mm × 122.4 mm × 179.8 mm

Weight

2.71 kg

Altitude

Up to 1000 m (3300 ft) without derating

Shock & vibration

15 G, 11 ms; 0.152 mm, 1 G

Certifications

CEEACKCUL ListedUK Safety Certificate

Certified as of May 19 2026 to CE, EAC, Korean KC, Lloyd's Register, UL Listed, UK Safety Certificate; subject to verification by product label.
