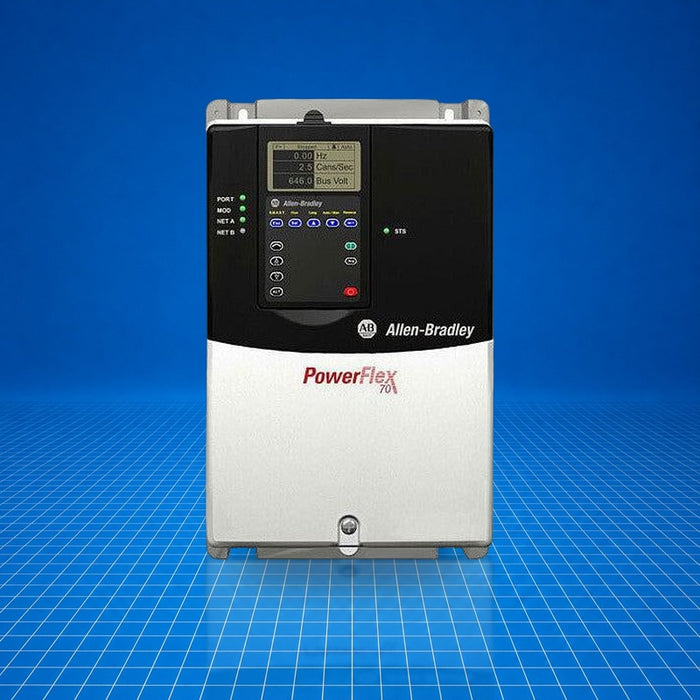

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

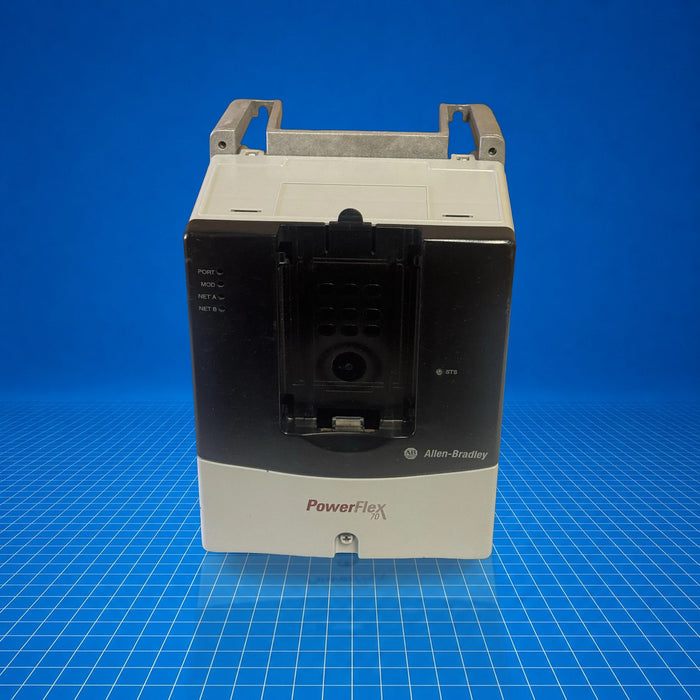

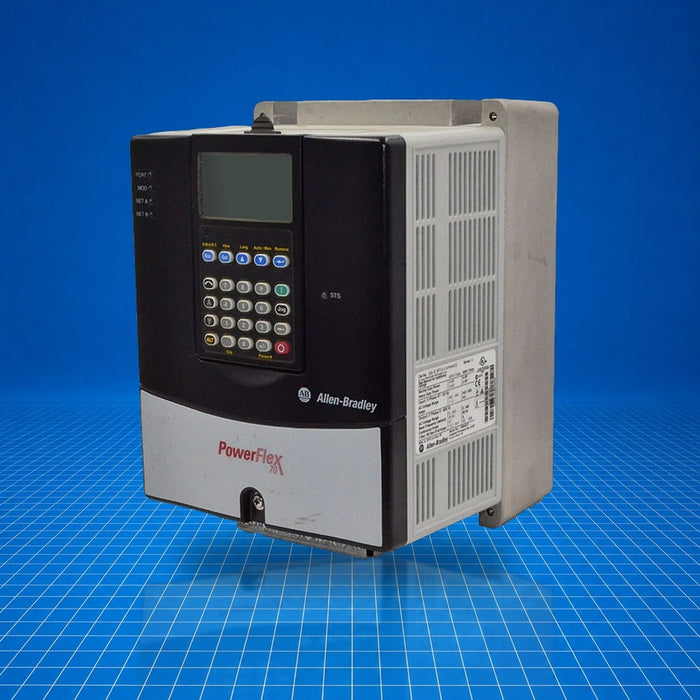

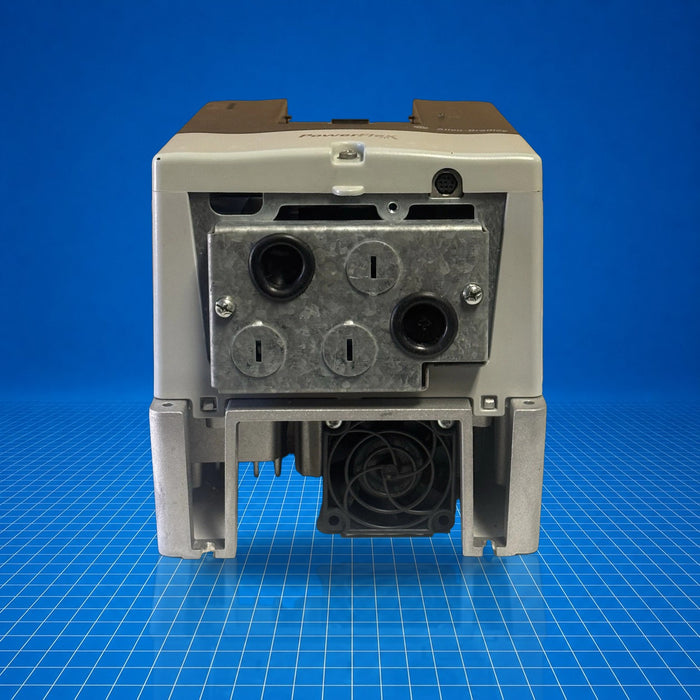

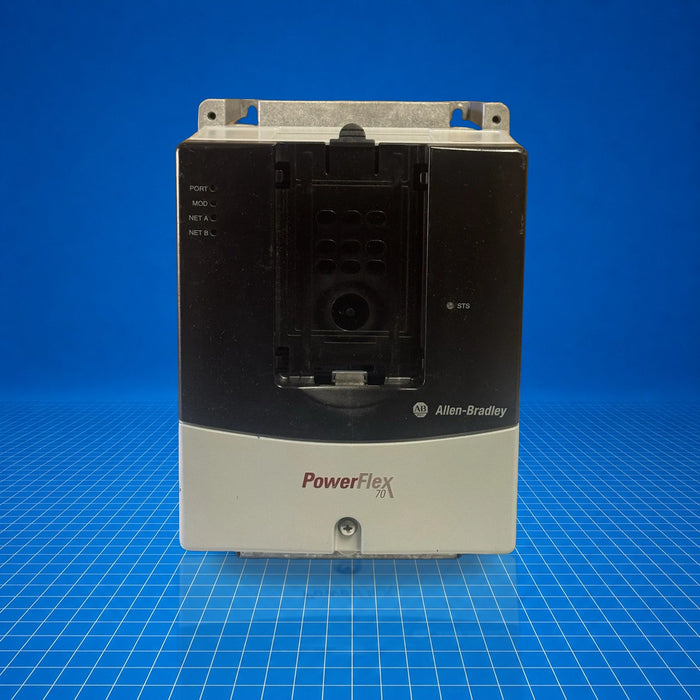

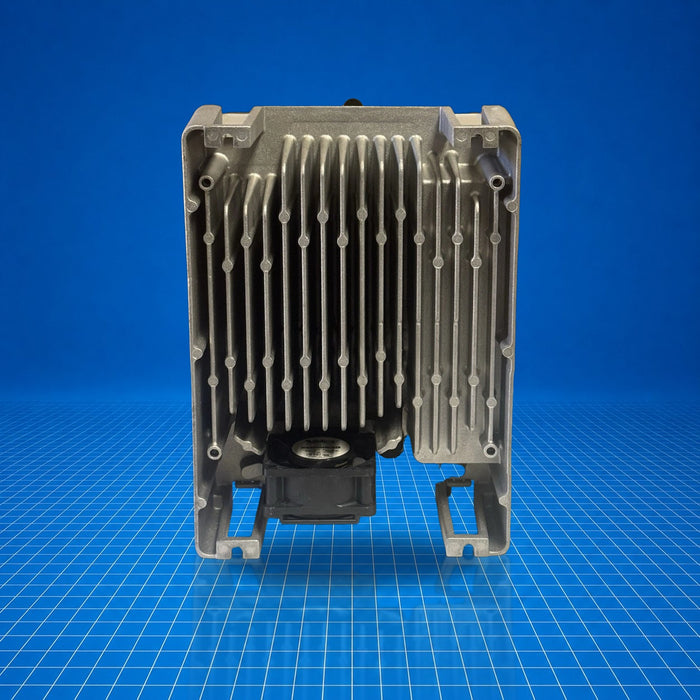

20AC8P7A0AYNANC0 Allen-Bradley
Original price
$0.00
-
Original price
$1,292.61
Original price
$1,292.61
$0.00
-
$1,292.61
Current price
$1,292.61
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley PowerFlex 70 AC Drive, model 20AC8P7A0AYNANC0, is a frame-B panel-mount adjustable frequency drive providing 8.7 A continuous (4.0 kW normal duty, 3.0 kW heavy duty) at 400 V AC, three-phase. Operating under Enhanced control with built-in brake IGBT and conformal coating, it is designed for variable-speed motor control in industrial systems where smooth torque and speed regulation without encoder feedback is required-such as conveyors, pumps, fans, and general motion control. 20AC8P7A0AYNANC0 is part of the PowerFlex 70 family.
Best Suited For
- Variable-speed control of 3-phase motors (~5 hp)
- Applications requiring sensorless vector control
- Panel-mounted installations with NEMA Type 1 / IP 20 environment
- Normal- and heavy-duty pump/fan loads
Frame size
B
Continuous output current
8.7 A
Normal-duty power rating
4.0 kW
Enclosure
Panel-mount, IP 20 / NEMA Type 1
Control type
Enhanced control, sensorless vector (no feedback)
Technical Specifications
I/O & Electrical
Input voltage
400 V AC, three-phase
Continuous output current
8.7 A @ 400 V AC, three-phase
1 min output current
9.9 A @ 400 V AC, three-phase
3 s output current
13.2 A (per Table, equivalent) - derived
Communication & Power
Brake IGBT
Installed
Internal communication module
None
Carrier frequency (vector control)
2, 4, 8, 12 kHz
Overload capacity
110 % for 60 s, 150 % for 3 s
Efficiency
97.5 % at rated load
Physical & Environmental
Operating ambient temp, max
0…50 °C without derating
Storage temperature
-40 °C
Altitude, max
1000 m (3300 ft) without derating
Shock
15 g peak, 11 ms
Vibration
0.152 mm displacement, 1 g
Dimensions (W×H×D)
171.7 × 239.8 × 203.3 mm
Weight
~3.61 kg
Certifications
CEUL ListedEurasian Economic CommunityKorean KCLloyd's RegisterAustralian RCMSeismic
