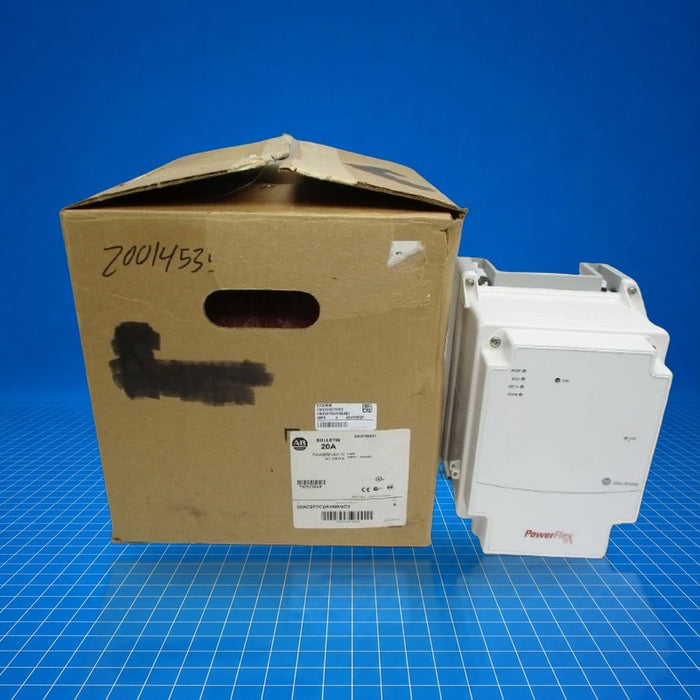

20AC8P7C0AYNANC0 Allen-Bradley
Original price
$0.00
-
Original price
$8,985.00
Original price
$8,985.00
$0.00
-
$8,985.00
Current price
$8,985.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

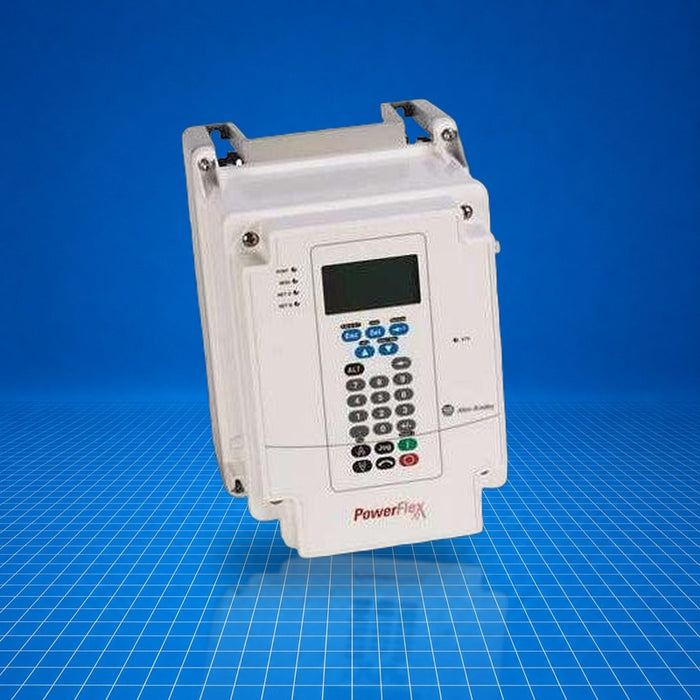

The Allen-Bradley PowerFlex 70 AC Drive, catalog number 20AC8P7C0AYNANC0, is a three-phase, 400 V drive offering approximately 8.7 A continuous output (4 kW normal duty, 3 kW heavy duty) in Frame B. It operates within the PowerFlex 70 family and provides enhanced control functionality. Typical roles in an automation system include motor speed and torque control in conveyors, mixers, and pumps where a compact panel-mount IP20 unit is needed.
Best Suited For
- Panel-mount motor speed/torque control
- Variable-torque applications up to ≈4 kW
- Systems requiring enhanced control with 24 V I/O
- Replacement within PowerFlex 70 installations
Continuous output current
8.7 A
Frame/Size
Frame B
Input voltage
380…480 V AC (three-phase)
Control features
Enhanced control with 24 V I/O
Technical Specifications
I/O & Electrical
Continuous output current
8.7 A @ 400 V AC, 3-phase
Input current rating
11.3 A @ 400 V AC, 3-phase
Output current 1 min
9.9 A @ 400 V AC, 3-phase
Output current 3 s
6.6 A @ 400 V AC, 1-phase
Dual-element fuse, max
17.5 A @ 400 V AC, 3-phase
Non-time-delay fuse, max
30 A @ 400 V AC, 3-phase
Circuit breaker rating, max
30 A @ 400 V AC, 3-phase
Motor circuit protector, max
15 A @ 400 V AC, 3-phase
Communication & Power
Brake IGBT
Installed
Internal dynamic brake resistor
115 Ω
Carrier frequency
2-10 kHz (standard control); 2-12 kHz (vector control)
Supporting protocols
DeviceNet, EtherNet/IP, PROFIBUS, CAN, Modbus, TCP/IP
Physical & Environmental
Enclosure type
Panel-mount IP20 / NEMA Type 1
Dimensions (HxDxW)
239.8 × 203.3 × 171.7 mm
Weight
3.61 kg
Shock
15 G peak, 11 ms (±1 ms)
Vibration
0.152 mm displacement, 1 G peak
Ambient temperature, max
0…50 °C (32…122 °F) without derating
Storage temperature
-40 °C
Relative humidity
5…95 % non-condensing
Certifications
Eurasian Economic CommunityCEKorean KCLloyd's RegisterAustralian RCMSafetySeismicSemiconductor ImmunityUL ListedUK Safety Certificate
