Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

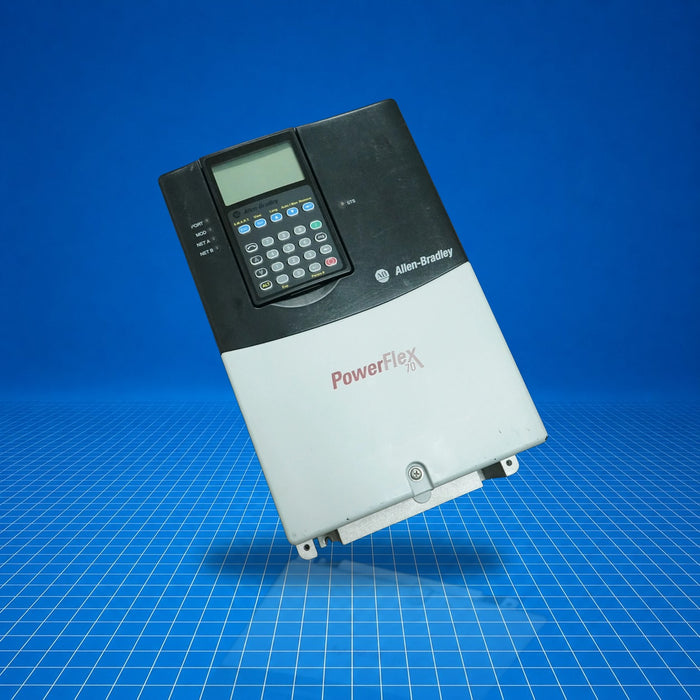

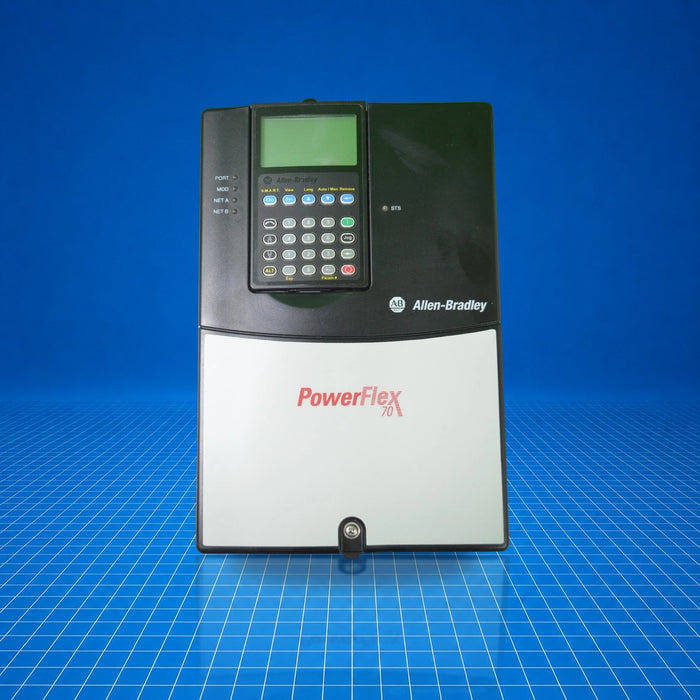

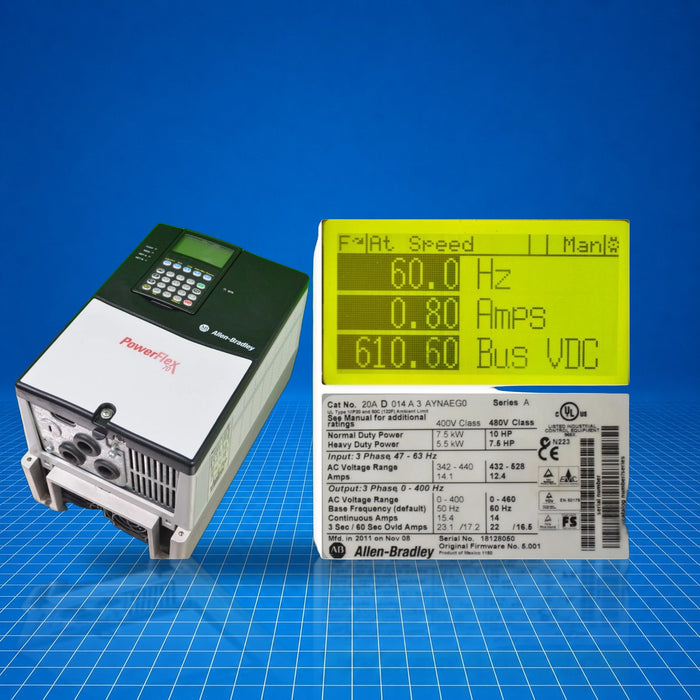

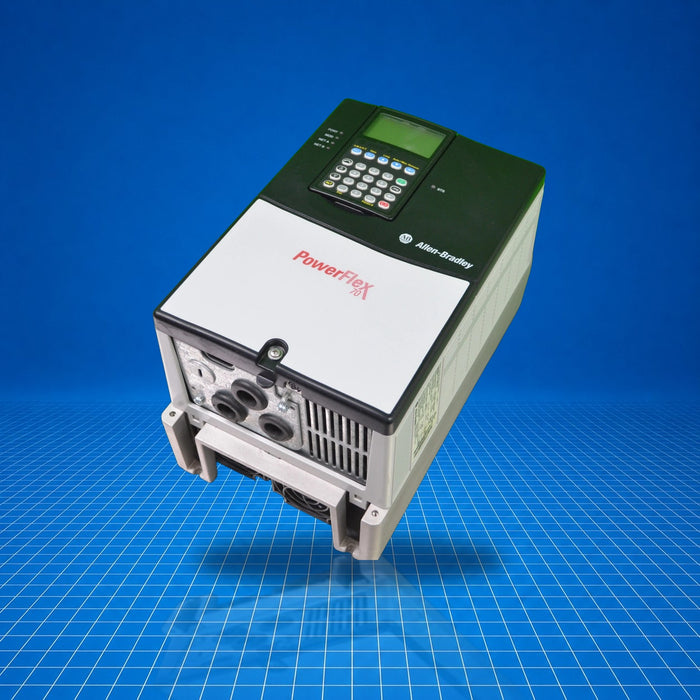

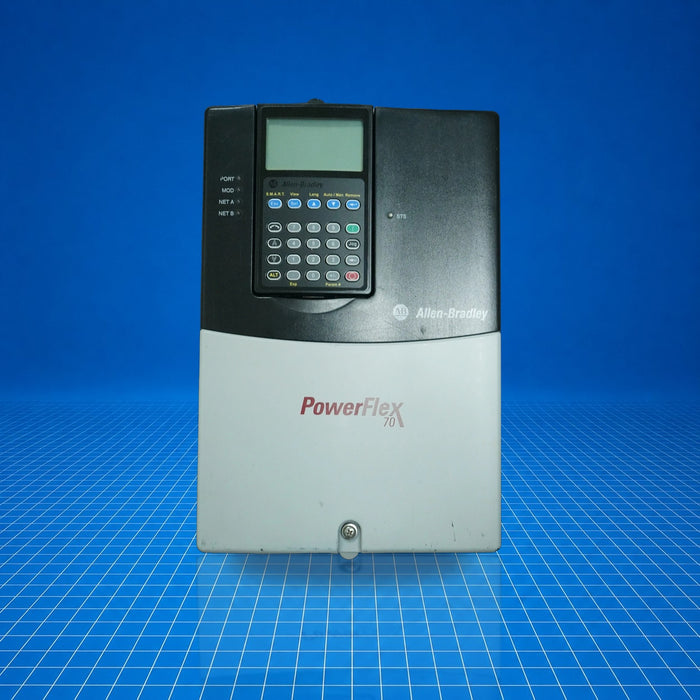

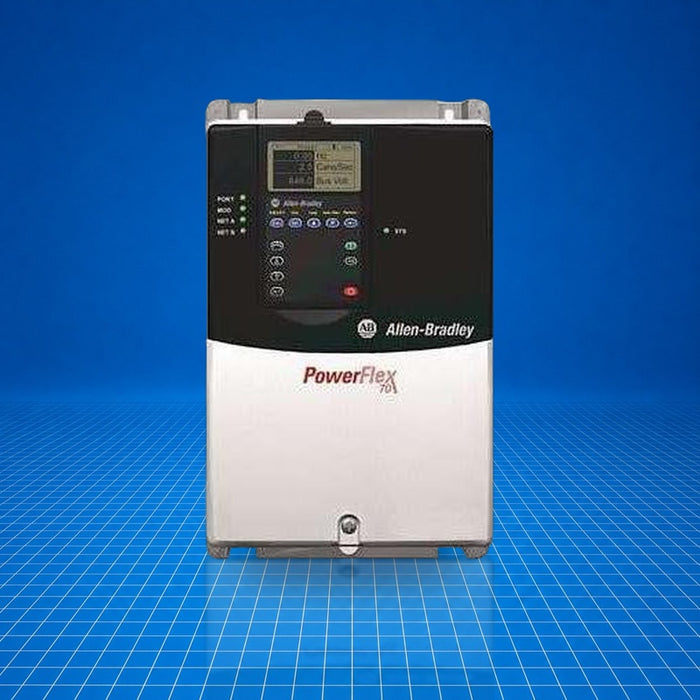

The 20AD014A3AYNAEG0 is an Allen-Bradley PowerFlex 70 adjustable-frequency AC drive in the "C" frame family, delivering 14 A continuous (10 hp). It is intended to regulate three-phase induction motor speed and torque in industrial machinery, conveyors, pumps, and general-purpose motor control systems. Its user interface and control architecture support enhanced control schemes such as V/Hz and sensorless vector, suitable for maintenance, retrofits, and OEM panel applications.
Best Suited For
- Motor speed and torque control for 10 hp three-phase motors
- Panel-mounted installations requiring standard NEMA Type 1/IP20 enclosure
- Applications needing built-in brake IGBT without an external resistor
- Environments where full-numeric LCD interface is required for parameter setup
Continuous Current
14 A
Horsepower (Normal Duty)
10 hp
Input Voltage
480 V AC, three-phase
Enclosure / Frame
IP20 / NEMA Type 1, Frame C
Human Interface
Full-numeric LCD, numeric keypad
Technical Specifications
I/O & Electrical
Input Voltage
480 V AC, three-phase
Output Current (continuous)
14 A
Brake IGBT
Installed
Communication & Power
Control Type
Enhanced Control
Feedback
None
Physical & Environmental
Enclosure / Frame
IP20 / NEMA Type 1, Frame C
Operating Temperature (ambient)
0…50 °C
Storage Temperature
-40 °C (min)
Altitude (max without derating)
1000 m (3300 ft)
Approx Dimensions (W × H × D)
185 × 300 × 179.8 mm
Approx Weight
6.89 kg
Certifications
EurAsian Economic Community
