Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

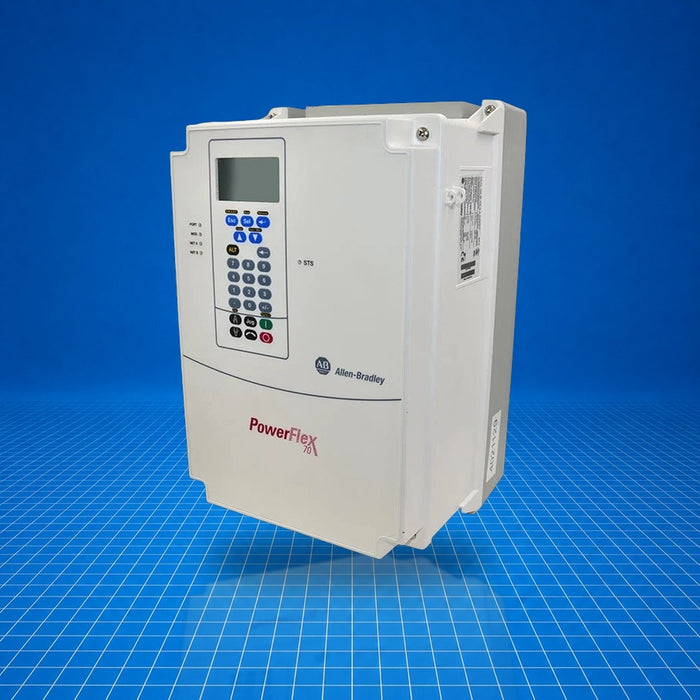

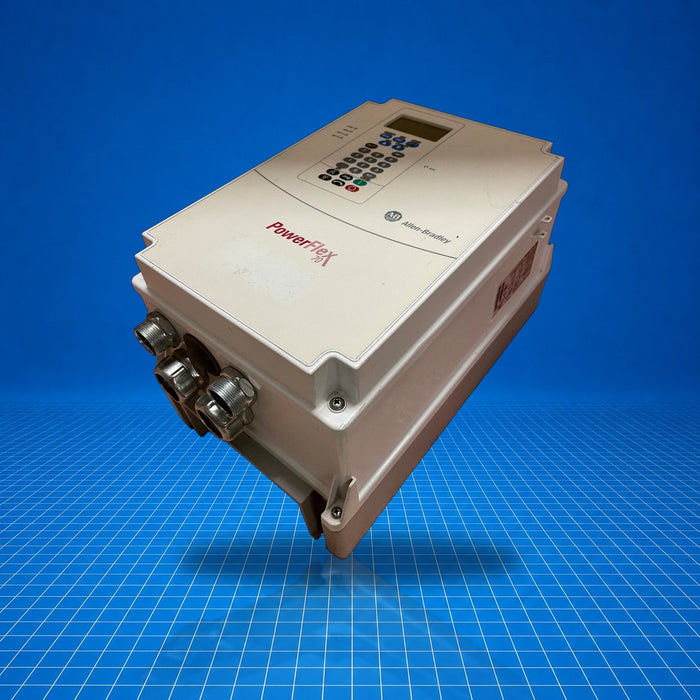

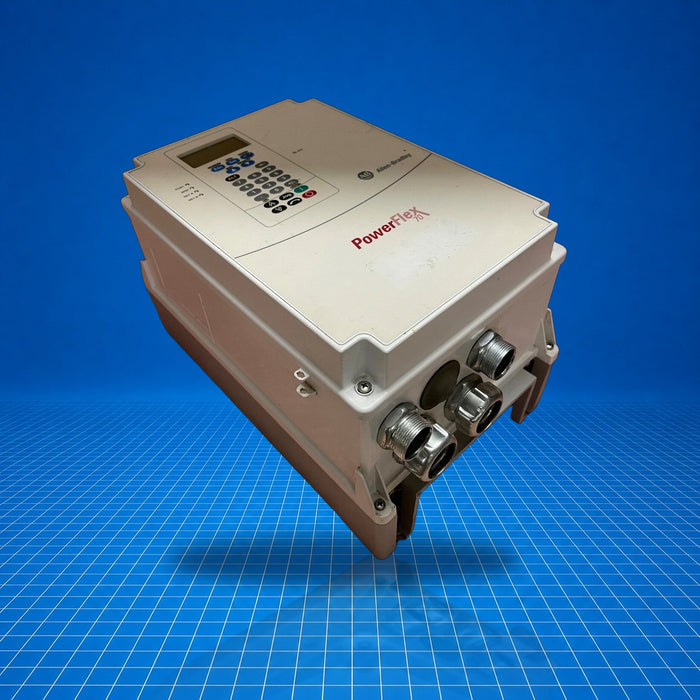

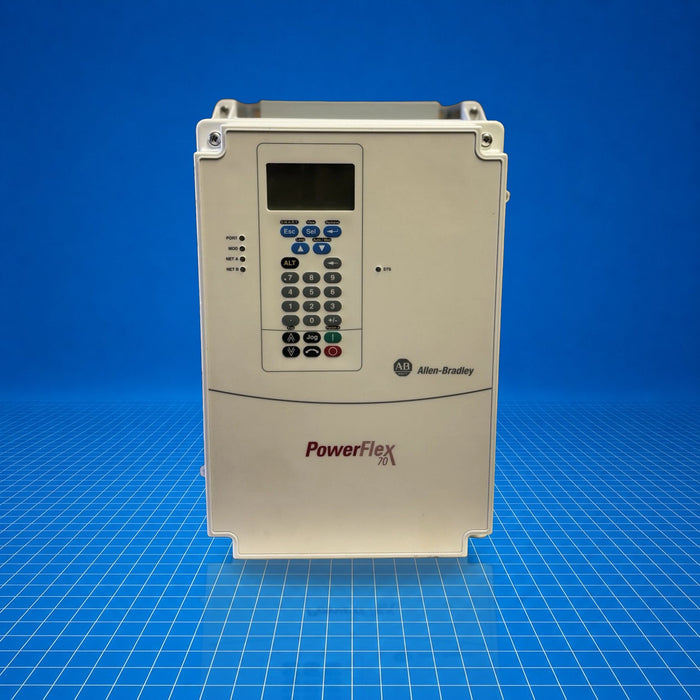

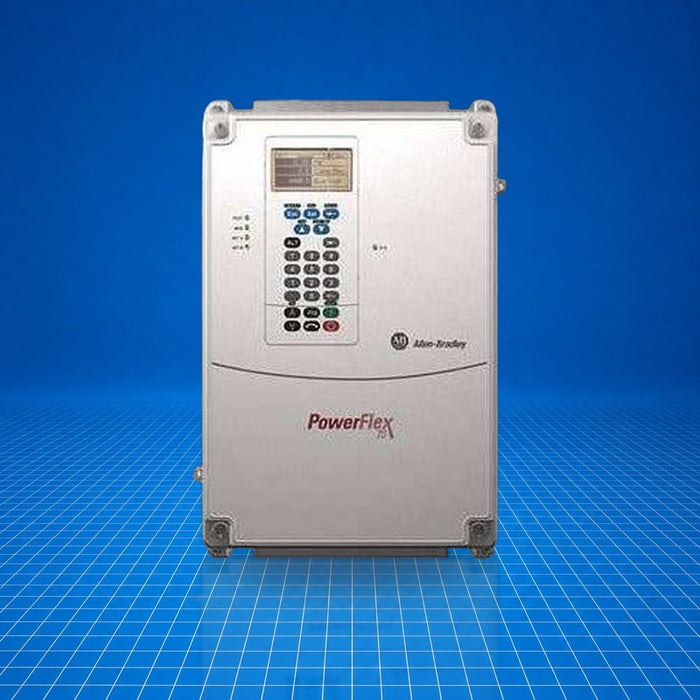

The 20AD040C3AYNANC0 is an Allen-Bradley PowerFlex 70 adjustable frequency drive (AC drive) rated at 22 kW (30 hp) and 40 A output, designed for three-phase 380-480 V AC motor control. It features an enhanced control module with a full numeric LCD interface and is supplied in an IP66 / NEMA 4X/12 enclosure for indoor wall or machine mounting. It's typically deployed in industrial applications for precise speed and torque control of motors in environments requiring operator interface and protection from washdown or dust.
Best Suited For
- Three-phase motor control in washdown or dusty environments
- Applications needing on-drive numeric operator interface
- Environments requiring 22 kW (30 hp) drive capacity
- Installations using IP66 / NEMA 4X/12 rated equipment
Output current
40 A
Power rating
22 kW (30 hp)
Input voltage
380-480 V AC, three-phase
Enclosure rating
IP66 / NEMA 4X/12 (indoor)
Operator interface
Full-numeric LCD
Technical Specifications
I/O & Electrical
Output current
40 A
Power rating
22 kW (30 hp)
Communication & Power
Input voltage
380…480 V AC, three-phase
Control type
Enhanced control
Physical & Environmental
Enclosure rating
IP66 / NEMA 4X/12 (indoor)
Dimensions (W×H×D)
219.9 mm × 350 mm × 210.7 mm
Weight
9.13 kg
Ambient temperature, max (no derating)
0…40 °C
Altitude, max (no derating)
1000 m (3300 ft)
