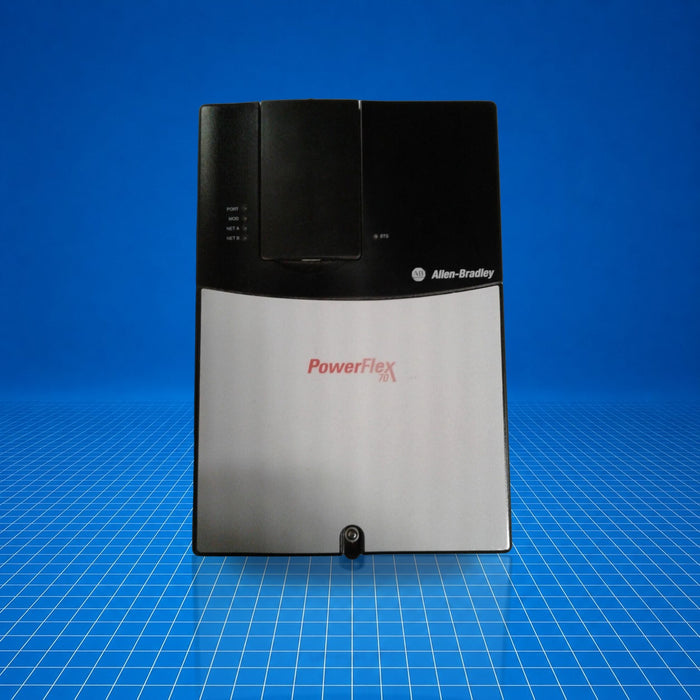

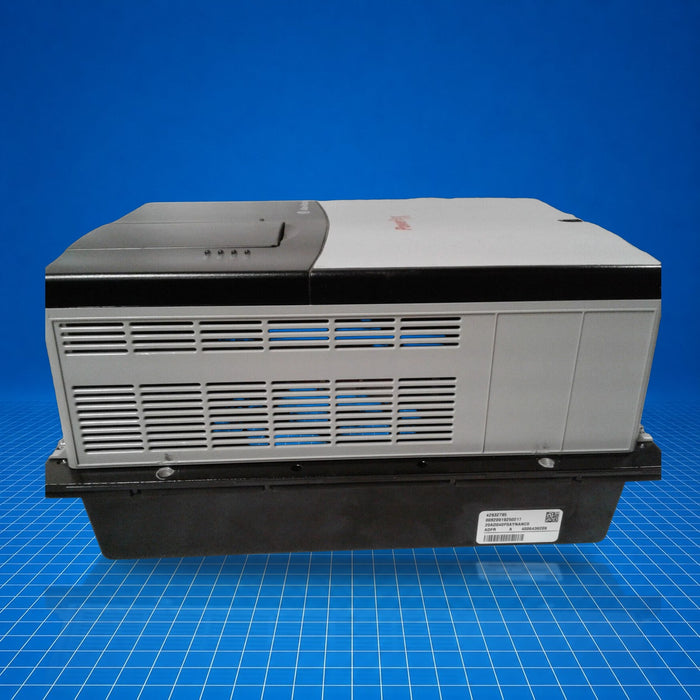

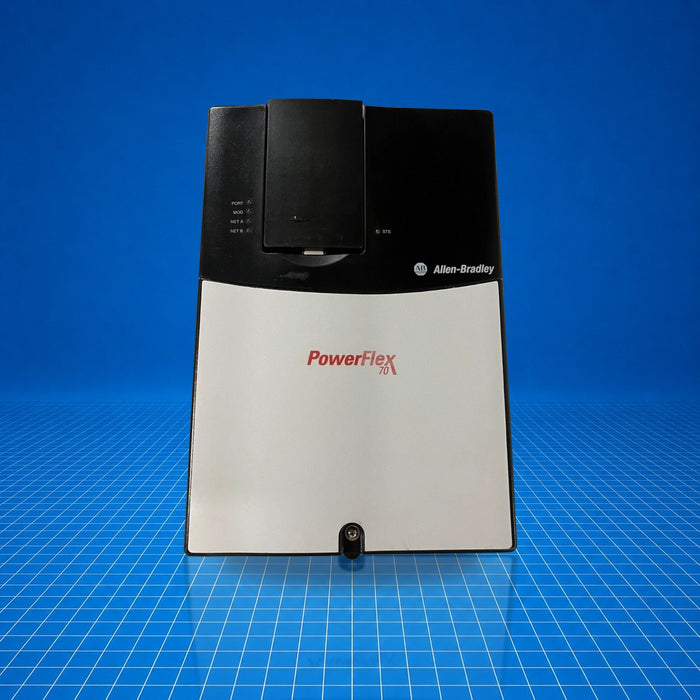

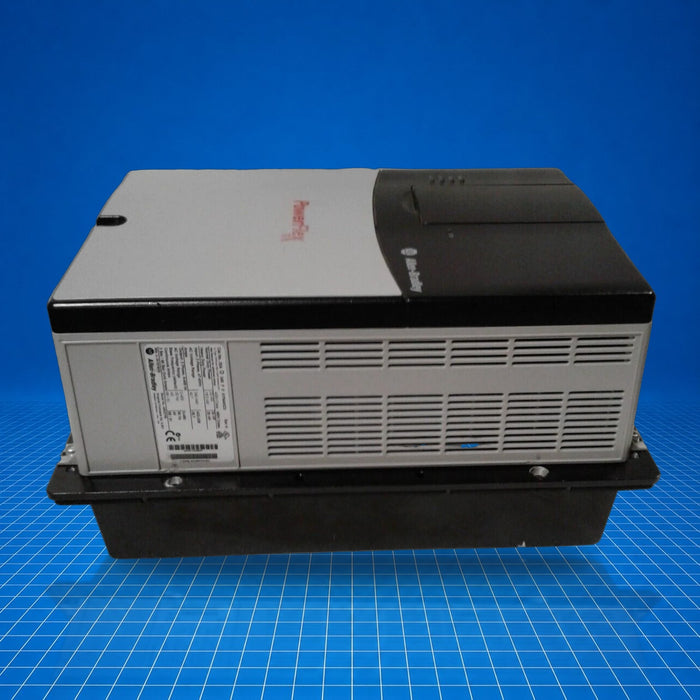

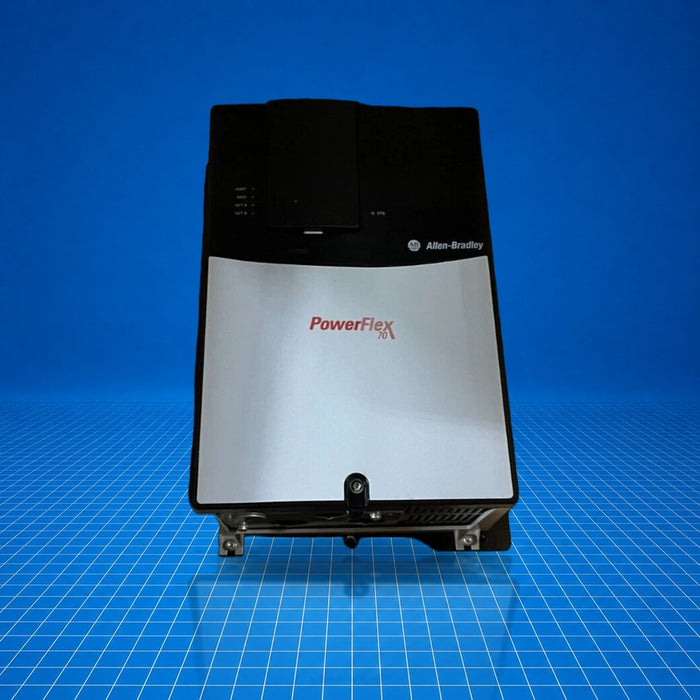

20AD040F0AYNANC0 Allen-Bradley
Original price
$0.00
-
Original price
$7,350.00
Original price
$7,350.00
$0.00
-
$7,350.00
Current price
$7,350.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 20AD040F0AYNANC0 is a PowerFlex 70 adjustable-frequency three-phase AC drive from Allen-Bradley, designed to control up to 40 A continuous current (approx. 30 hp) on 380-480 V AC systems. It provides precise motor speed and torque control in industrial applications such as conveyors, pumps, fans, HVAC systems, and general machinery requiring variable-frequency motor control. This drive integrates within PlantPAx and Logix-based control systems for modular, scalable power management. 20AD040F0AYNANC0 is part of the PowerFlex 70 family and is intended for cabinet or NEMA/UL Type 4X/12 installations.
Best Suited For
- Medium-duty three-phase motor speed control (up to ~30 hp)
- Conveyor, pump, fan, HVAC, general machinery applications
- Integration with PlantPAx/Logix automation platforms
- Indoor cabinet or frontal-heatsink NEMA Type 4X/12 environments
Output current (Cont.)
40 A
Input voltage
380-480 V AC, three-phase
Frame size
D
Mounting types
Flange-mount (IP20) or heatsink (front, IP66/NEMA 4X/12)
Drive series
PowerFlex 70
Technical Specifications
I/O & Electrical
Input voltage
380-480 V AC, three-phase
Output current (continuous)
40 A
Physical & Environmental
Frame size
D
Mounting / Enclosure rating
Flange-mount (IP20) or heatsink front (IP66 / NEMA 4X/12)
Height (approx.)
350 mm
Width (approx.)
219.9 mm
Depth (approx.)
210.7 mm
Weight (approx.)
9.13 kg
Certifications
Eurasian Economic CommunityKorean KCAustralian RCMUL Listed
