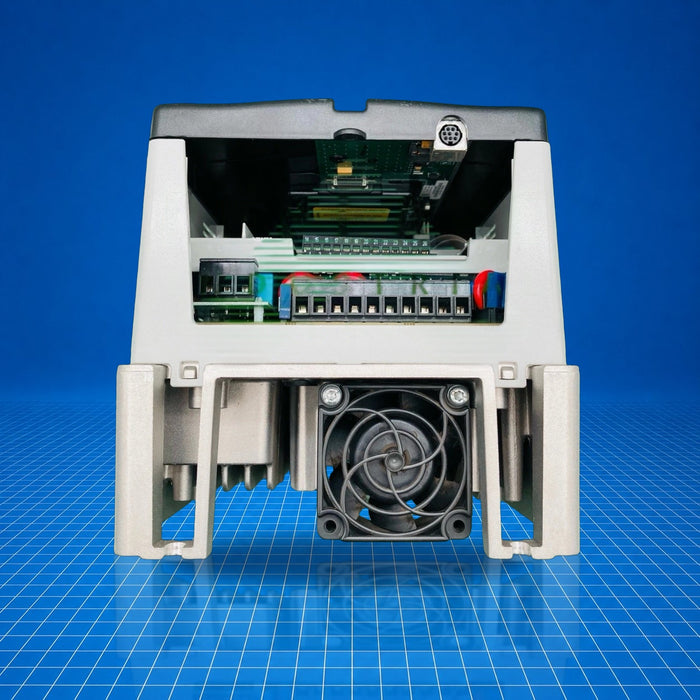

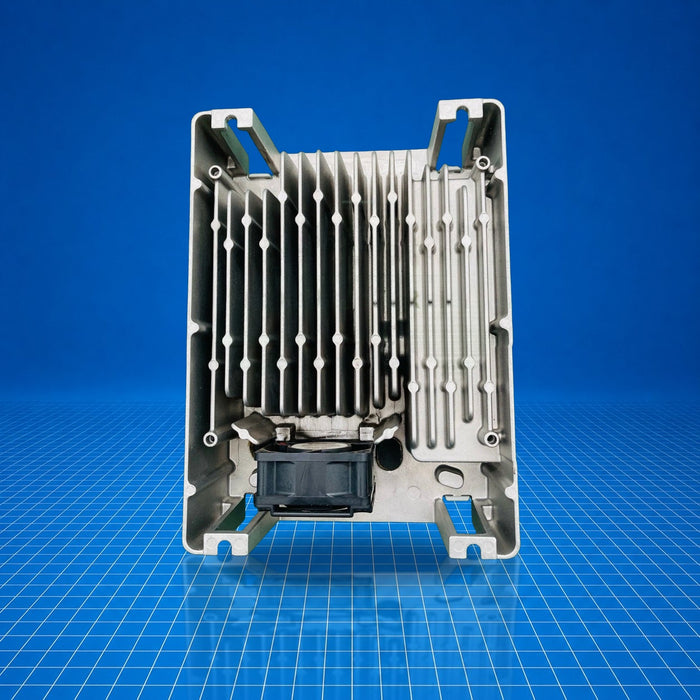

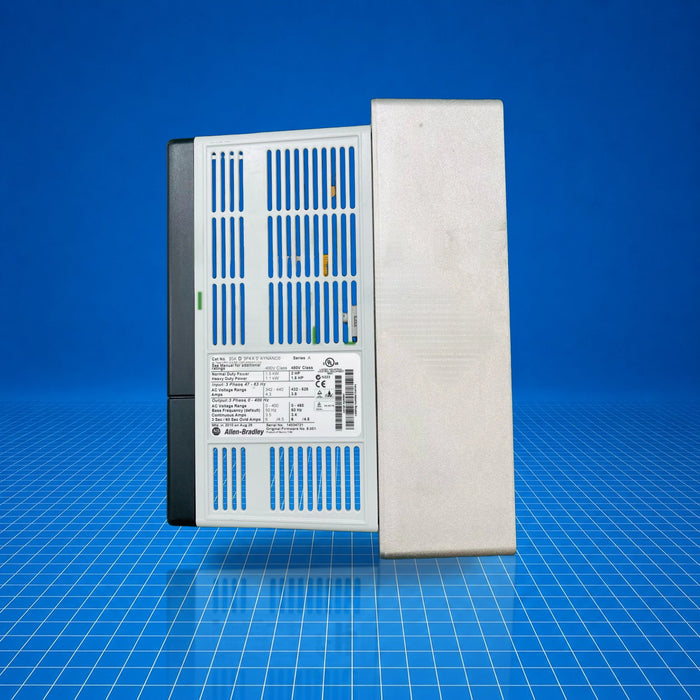

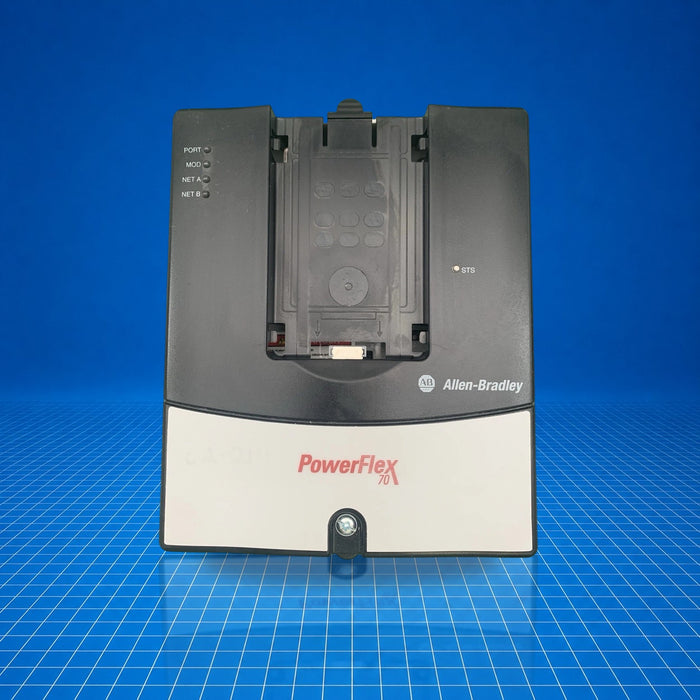

20AD3P4A0AYNANC0 Allen-Bradley
Original price
$591.25
-
Original price
$4,554.00
Original price
$591.25
$591.25
-
$4,554.00
Current price
$591.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 20AD3P4A0AYNANC0 is an Allen-Bradley PowerFlex 70 three-phase adjustable-frequency AC drive for 380-480 V input systems. It provides 3.4 A continuous output current, suitable for controlling motors up to approximately 2 HP (normal duty) or 1.5 HP (heavy duty). Used in industrial motor control applications, it offers enhanced control functions and a blank-cover interface module. This drive is part of the PowerFlex 70 family, typically panel-mounted in control panels for variable-speed motor operation.
Best Suited For
- Motor control with 380-480 V three-phase supply
- Applications requiring 2 HP normal-duty or 1.5 HP heavy-duty output
- Installation in IP20/NEMA Type 1 control panels
- Systems employing enhanced control logic without feedback
Output current
3.4 A continuous
Motor power rating
2 HP (normal), 1.5 HP (heavy)
Input voltage
380-480 V AC, three-phase
Frame / enclosure
A-frame, Panel Mount, IP20 / NEMA Type 1
Control interface
Blank cover (no keypad)
Technical Specifications
I/O & Electrical
Output current (continuous)
3.4 A
Motor power (normal duty)
2 HP
Motor power (heavy duty)
1.5 HP
Input voltage
380-480 V AC, three-phase
Communication & Power
Control type
Enhanced control
Interface module
Blank cover (no keypad)
Physical & Environmental
Enclosure rating
IP20 / NEMA Type 1
Frame size
A-frame
Altitude (max without derating)
1000 m (3300 ft)
Storage temperature
-40 °C
Relative humidity
5…95 % noncondensing
Certifications
Eurasian Economic CommunityUL ListedAustralian RCMKorean KCUKCA
