20AD8P0C3AYNNNC0 Allen-Bradley
Original price
$2,700.00
-
Original price
$8,175.00
Original price
$2,700.00
$2,700.00
-
$8,175.00
Current price
$2,700.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

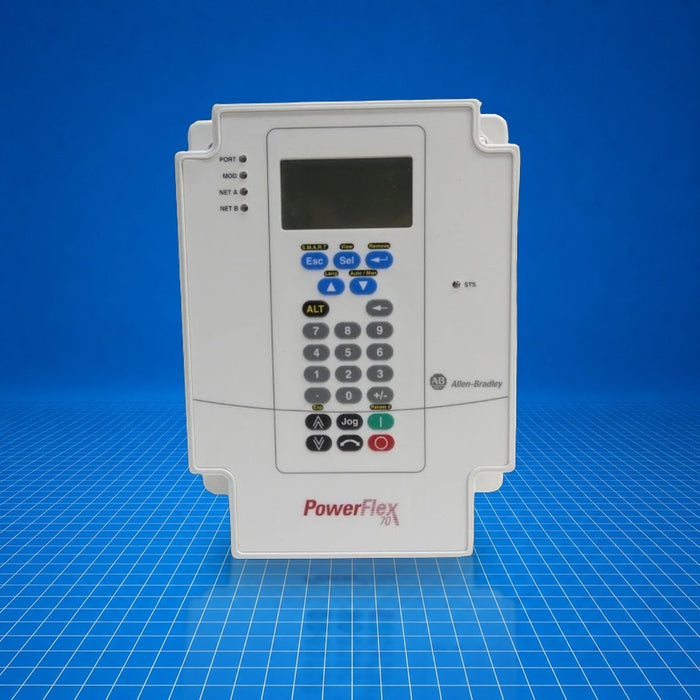

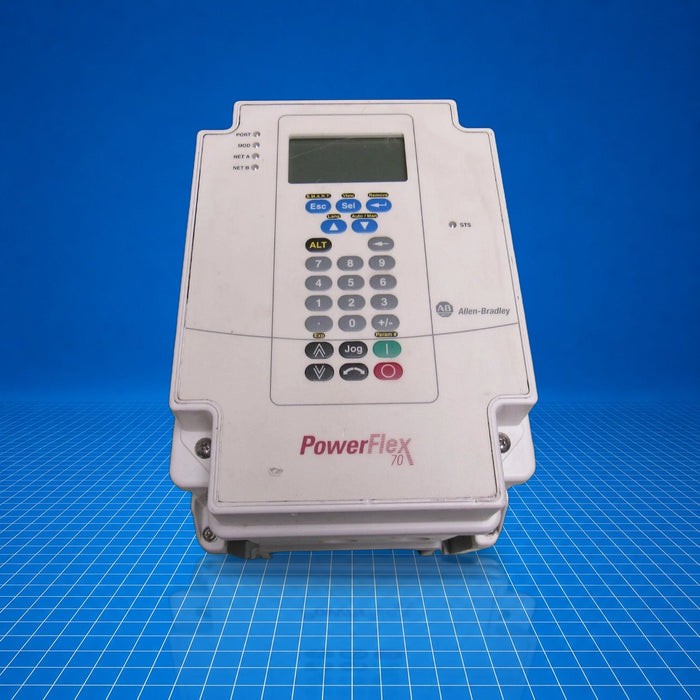

The 20AD8P0C3AYNNNC0 is an Allen-Bradley PowerFlex 70 three-phase AC drive, rated for approximately 5 HP (continuous) at 480 V AC. As part of the PowerFlex 70 family, it provides motor speed and torque control in industrial motor control panels and machine applications. It supports multiple communication protocols including EtherNet/IP and DeviceNet, and is suitable for demanding industrial environments requiring IP66/NEMA 4X protection. The 20AD8P0C3AYNNNC0 drive offers a numeric keypad and display interface for local configuration.
Best Suited For
- Motor speed and torque control in factory machines
- Panel or wall mounting in wash-down environments (IP66/NEMA 4X)
- Integration via EtherNet/IP or DeviceNet networks
- retrofit or replacement in existing PowerFlex 70 installations
Power rating
Approx. 5 HP continuous
Input voltage
380-480 V AC, three-phase
Protection rating
IP66 / NEMA 4X
Digital I/O
6 inputs, 2 outputs
Analog I/O
2 inputs, 1 output
Technical Specifications
I/O & Electrical
Digital inputs
6
Digital outputs
2
Analog inputs
2
Analog outputs
1
Communication & Power
Supported protocols
DeviceNet, EtherNet/IP, TCP/IP, PROFIBUS, CAN, Modbus
HW interfaces
RS-232 ×2, RS-485 ×2, USB ×2
Current rating
20 A
Physical & Environmental
Degree of protection
IP66 / NEMA 4X
Storage temperature
-40 °C
Altitude (max)
1000 m (3300 ft) without derating
Relative humidity
5-95 % noncondensing
Shock
15 G peak, 11 ms
Vibration
0.152 mm (0.006 in) displacement, 1 G peak
Certifications
CEKorean KCAustralian RCMEurasian Economic CommunityLloyd's Register
