20AE3P9F0AYNNNC0 Allen-Bradley
Original price
$0.00
-
Original price
$4,552.50
Original price
$4,552.50
$0.00
-
$4,552.50
Current price
$4,552.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

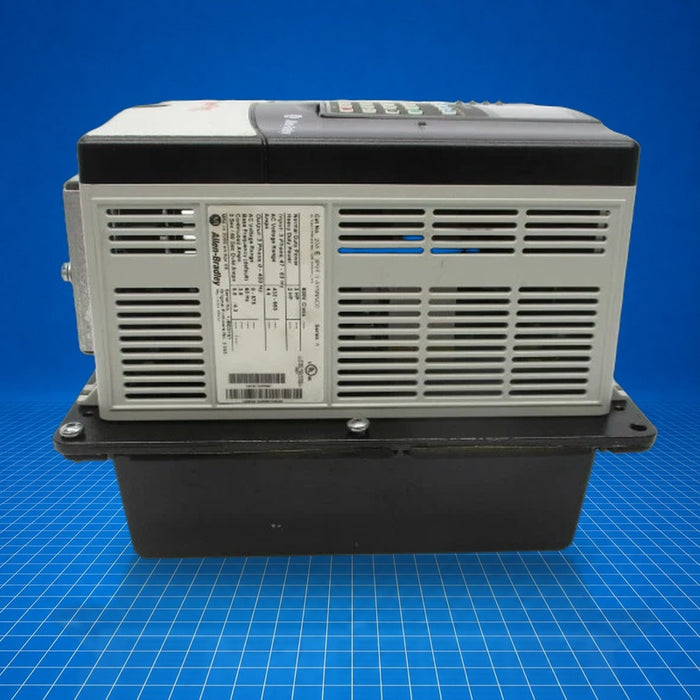

The 20AE3P9F0AYNNNC0 is an Allen-Bradley PowerFlex 70 adjustable-frequency AC drive, 600 V, 3-phase, rated at 3.9 A (3 hp normal-duty, 2 hp heavy-duty). It features enhanced control logic, an IGBT brake (no internal resistor), blank cover interface, and flange-style chassis with IP 20 front and IP 66/4X/12 rear heatsink. It is part of the PowerFlex 70 family, intended to regulate motor speed and torque in industrial automation systems such as fans, pumps, conveyors, extruders, and general machine drive applications. Typical use includes motor control and deceleration where dynamic braking is required.
Best Suited For
- Fan and pump constant-speed control
- Conveyor motor deceleration control
- Extruder speed regulation
- Retrofit machine drives without HMI interface
- Environments requiring conformal-coated drives
Rated current (A)
3.9 A
Voltage
600 V AC, 3-phase
Enclosure
Flange-mount, IP20 front / IP66 rear
Brake
IGBT installed, no resistor
Control
Enhanced, no HMI
Technical Specifications
I/O & Electrical
Digital inputs
6
Digital outputs
2
Analogue inputs
2
Analogue outputs
1
Communication & Power
Communication protocol support
DeviceNet, EtherNet/IP, TCP/IP, PROFIBUS, CAN, Modbus
RS-232 ports
2
RS-485 ports
2
USB ports
2
Efficiency
97.5 % at rated current, nominal voltage
Physical & Environmental
IP rating
Front IP20 / Rear heatsink IP66
Shock
15 G, 11 ms
Vibration
0.152 mm displacement, 1 G peak
Storage temperature
-40 °C
Relative humidity
5…95 % non-condensing
Altitude
≤ 1000 m (3300 ft) without derating
