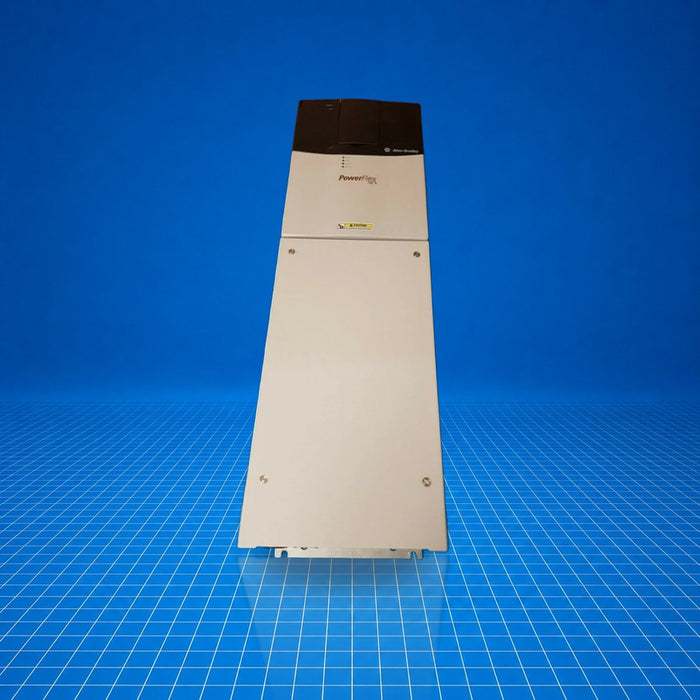

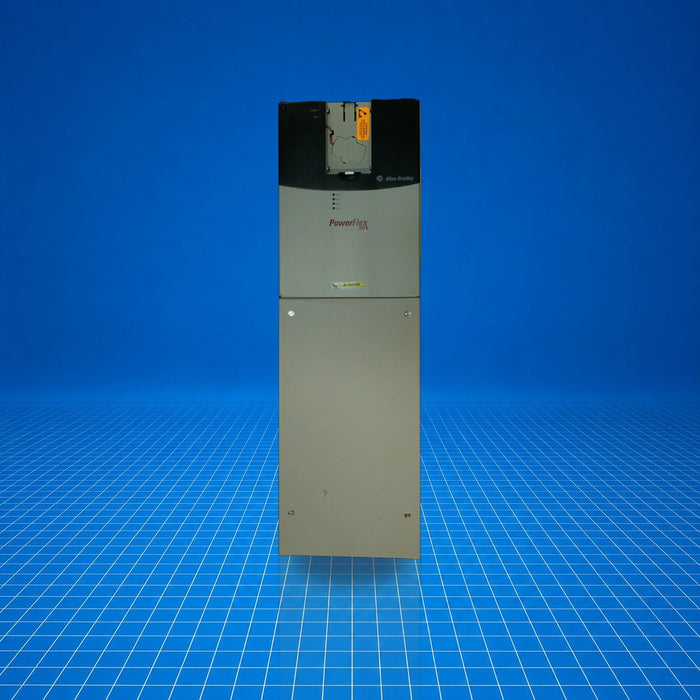

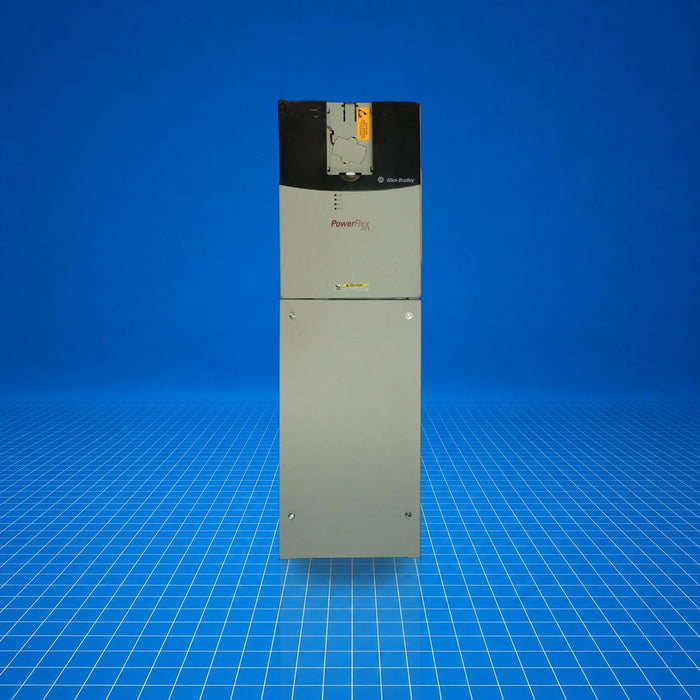

Product image is representative; revision or series may vary.
Contact us to request a specific version.

20BC085A0AYNANC0 Allen-Bradley

Name: 20BC085A0AYNANC0 Allen-Bradley
Brand: Allen Bradley
Price: 18415.0 USD
Availability: InStock

$12,622.49 - $18,415.00

$18,415.00

$12,622.49 - $18,415.00

$18,415.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 20BC085A0AYNANC0 is an Allen-Bradley PowerFlex 700 series AC drive (400 V, 3-phase, 85 A, 45 kW normal-duty) configured with vector control, 24 V I/O, brake IGBT installed, conformal coating, blank cover instead of HIM, EMC filter and common-mode choke, without internal brake resistor or communication module. It functions as a motor drive in plant automation, providing adjustable frequency control for medium-duty industrial motor applications. This drive is typically used in applications such as conveyors, pumps, fans, and general automation requiring torque-controlled AC motor operation.

Best Suited For

Medium-duty motor control (e.g., conveyors, fans, pumps)
Vector control for precision speed/torque regulation
Installation in IP20 / NEMA Type 1 enclosures
Environments requiring EMC filtering and conformal coating
Applications not requiring integrated network communication

Rated output current

85 A

Rated power

45 kW (normal-duty)

Control type

Vector control, 24 V I/O

Protection rating

IP20 / NEMA Type 1

Brake IGBT

Installed

Technical Specifications

I/O & Electrical

Analog inputs

2

Analog outputs

2

Digital inputs

6

Digital outputs

3

I/O voltage

24 V I/O

Communication & Power

Mains voltage (nominal)

400 V AC (3-phase, 380…480 V rating)

Max output frequency

420 Hz

Efficiency at rated current

97.5 %

Supported protocols

EtherNet/IP; DeviceNet; PROFIBUS; TCP/IP; CAN; Modbus; LON

Physical & Environmental

Operating temperature

45 °C (at 540 V DC)

Storage temperature

-40 °C

Relative humidity

5…95 % non-condensing

Shock resistance

15 G peak, 11 ms

Vibration resistance

0.152 mm displacement, 1 G peak

Altitude rating

1000 m (3300 ft) without derating

Certifications

EAC

Certified to Eurasian Economic Community directives as of 20 Nov 2025. Verify label for specific unit.
