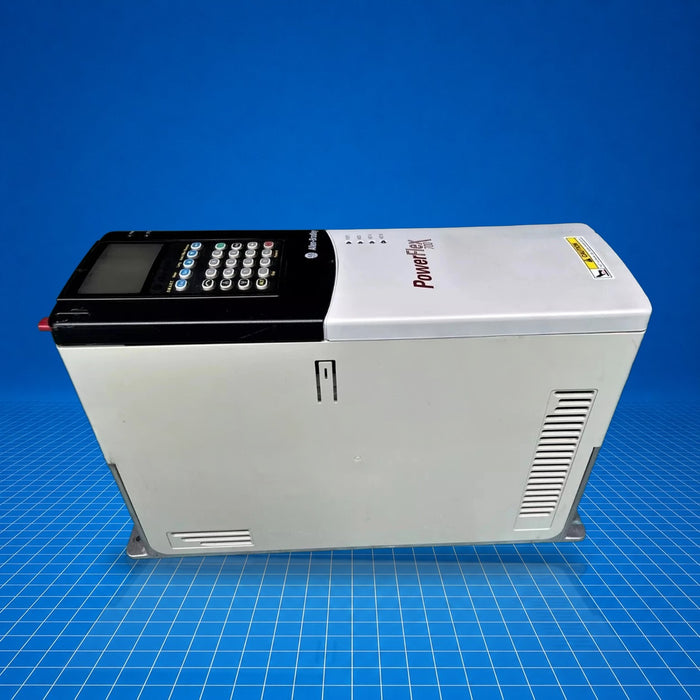

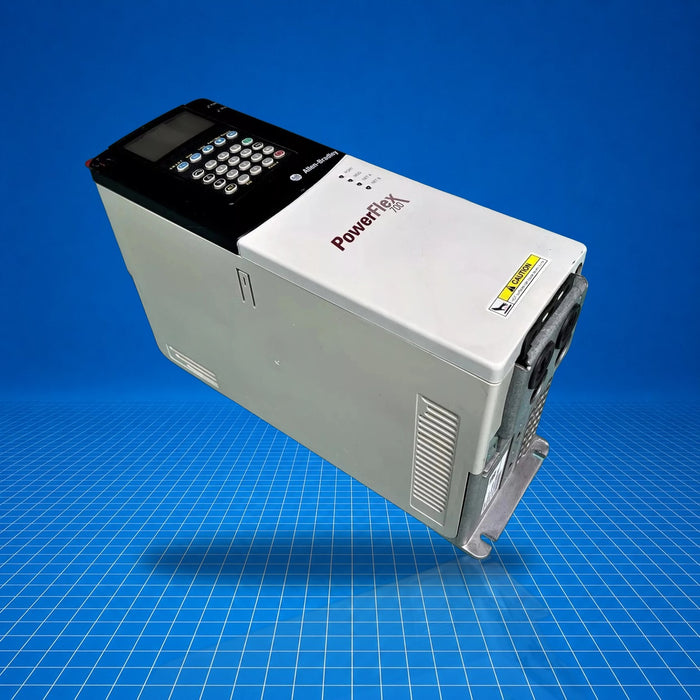

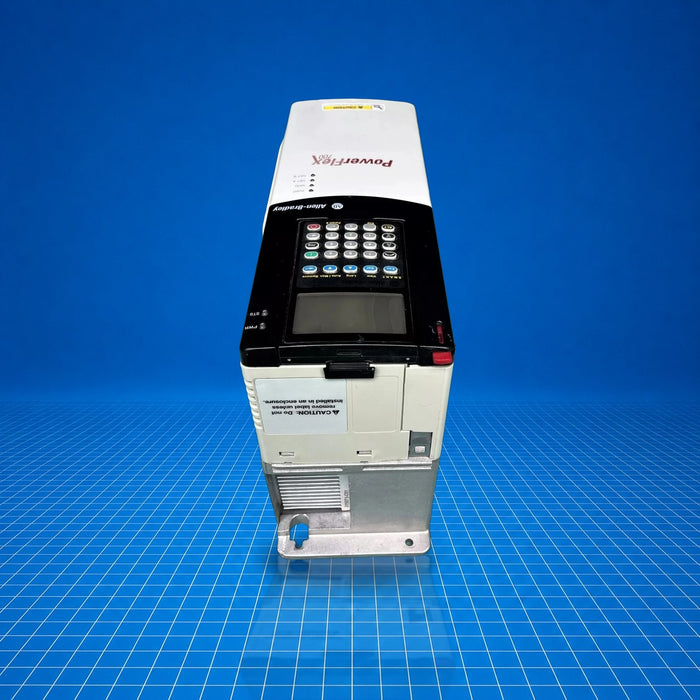

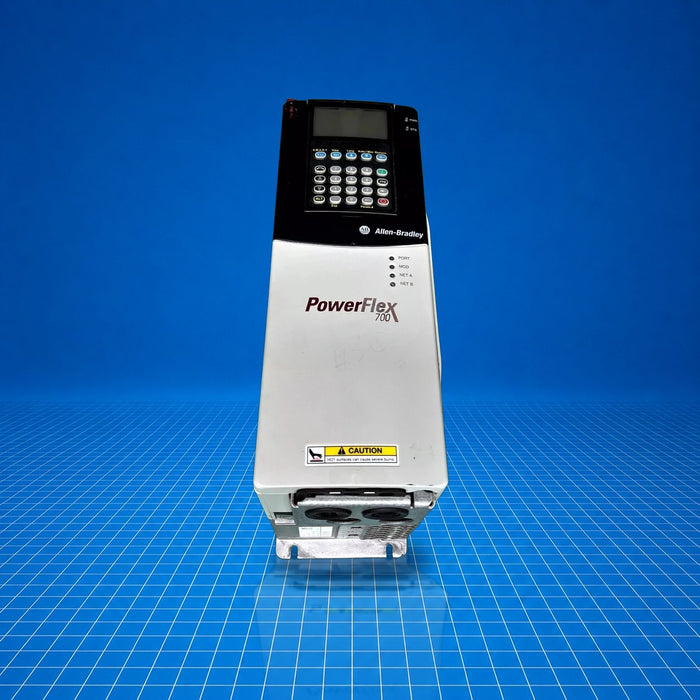

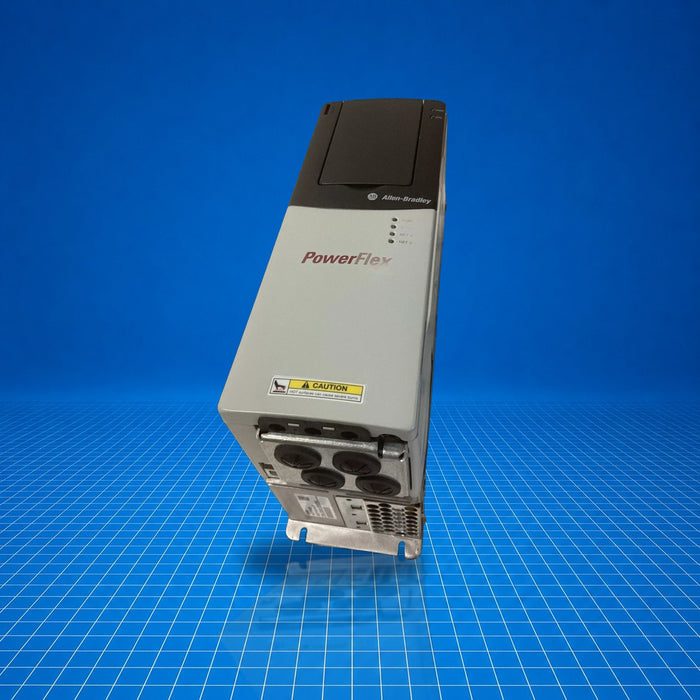

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
20BC2P1A0AYNANC0 Allen-Bradley
Original price
$3,080.00
-
Original price
$3,599.98
Original price
$3,080.00
$3,080.00
-
$3,599.98
Current price
$3,080.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 20BC2P1A0AYNANC0 is an Allen-Bradley PowerFlex 700 AC Drive (PowerFlex 700 family), frame 0, providing 0.75 kW (0.55 kW heavy-duty) single-phase output. It regulates three-phase motor speed/torque using sine-coded PWM. Typically applied in small machine control, conveyors, or pump systems requiring vector control without feedback. Part number 20BC2P1A0AYNANC0 is discontinued as of November 30, 2023.
Best Suited For
- Small-machine motor control (0.75 kW)
- Three-phase conveyors or pumps
- OEM machinery requiring PWM vector control
- Replacement for discontinued frame-0 PowerFlex 700 drives
Continuous output current
2.1 A
Input voltage
400 V AC, 3-phase, 50 Hz
Brake IGBT
Installed
IP rating
IP20 / NEMA 1
Discontinued
Yes (Nov 30, 2023)
Technical Specifications
I/O & Electrical
Input voltage
400 V AC, 3-phase, 50 Hz
Continuous output current
2.1 A @ 540 V DC
1 min output current
2.4 A @ 540 V DC
3 s output current
3.2 A @ 540 V DC
Fuse rating (time-delay)
3…6 A @ 400 V AC, 3-phase
Non-time-delay fuse rating
3…8 A @ 400 V AC, 3-phase
Circuit breaker max rating
15 A @ 400 V AC, 3-phase
Communication & Power
PWM frequency
4 kHz @ 540 V DC
Internal communication module
None
Supporting protocols
EtherNet/IP, DeviceNet (drive supports both depending on variant)
Physical & Environmental
IP/NEMA rating
IP20 / NEMA 1
Operating temperature
0…50 °C
Storage temperature
-40 °C
Relative humidity
5…95 % non-condensing
Shock & vibration
15 G peak / 0.152 mm @ 1 G peak
Weight
8.16 kg (with packaging)
Dimensions (WxHxD)
110 × 336 × 200 mm
Certifications
EAC
Eurasian Economic Community certification as of latest listing; check product label for validation.
