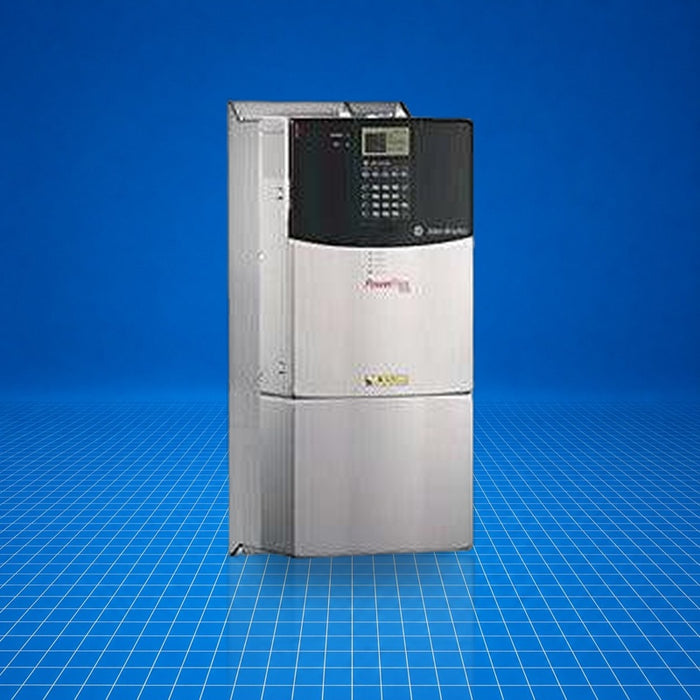

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
20BC5P0A0AYNANC0 Allen-Bradley
Original price
$1,955.10
-
Original price
$4,375.00
Original price
$1,955.10
$1,955.10
-
$4,375.00
Current price
$1,955.10
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

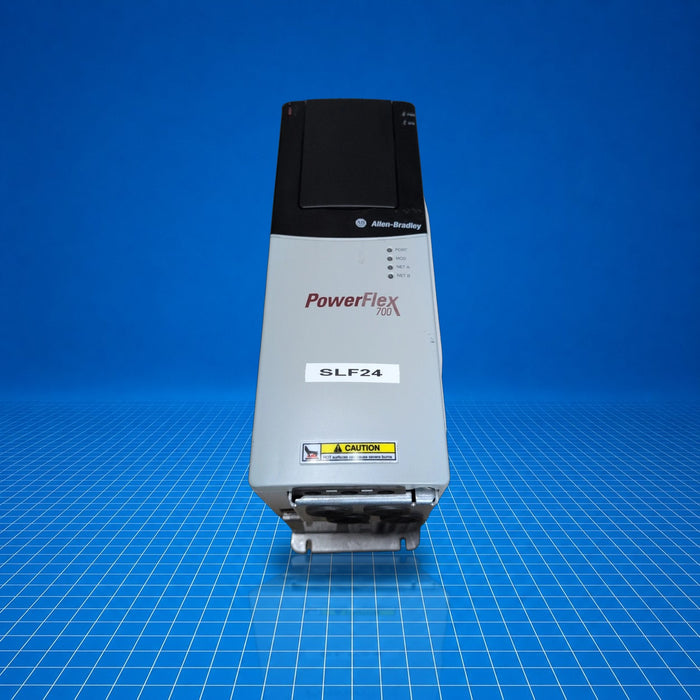

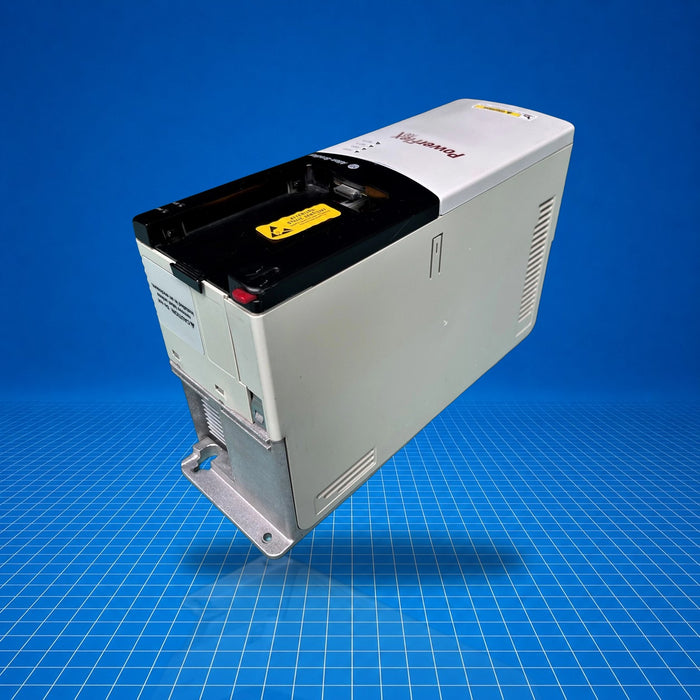

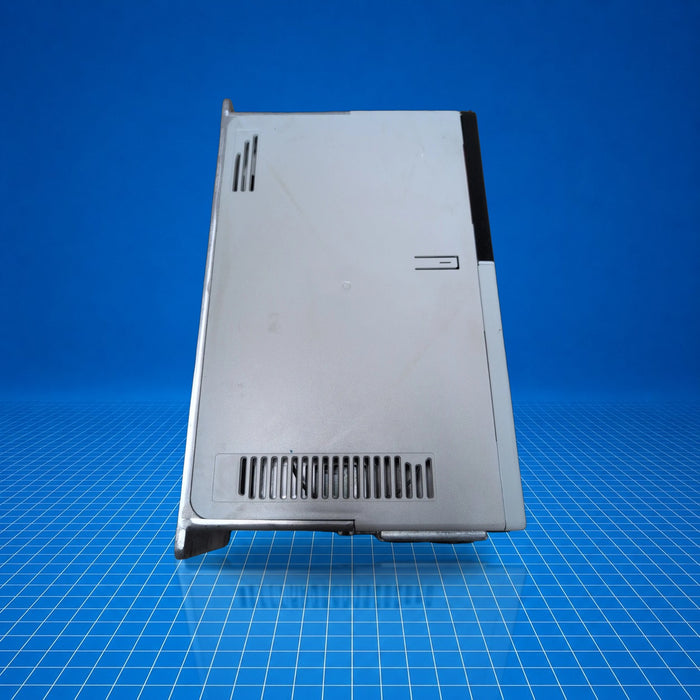

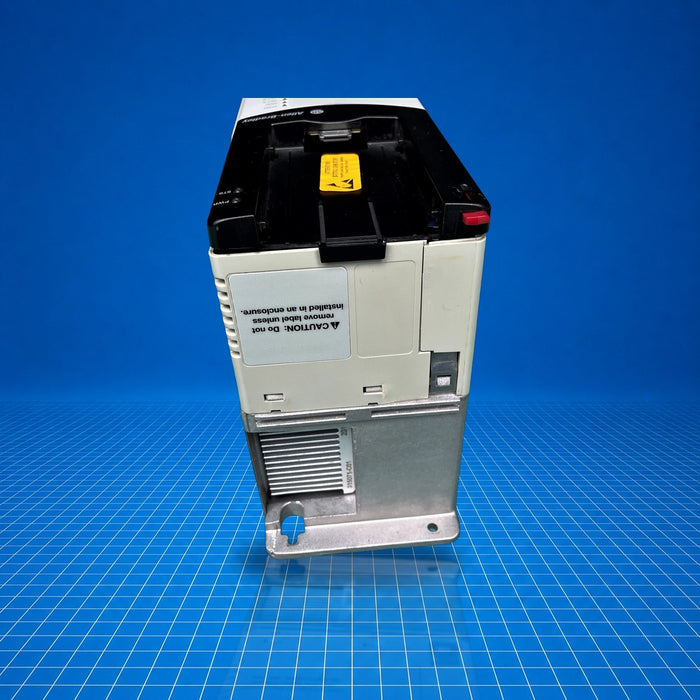

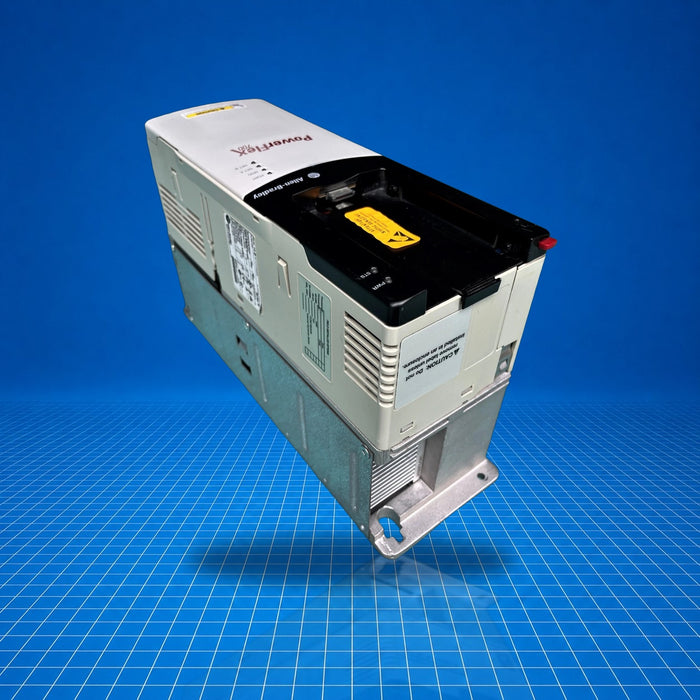

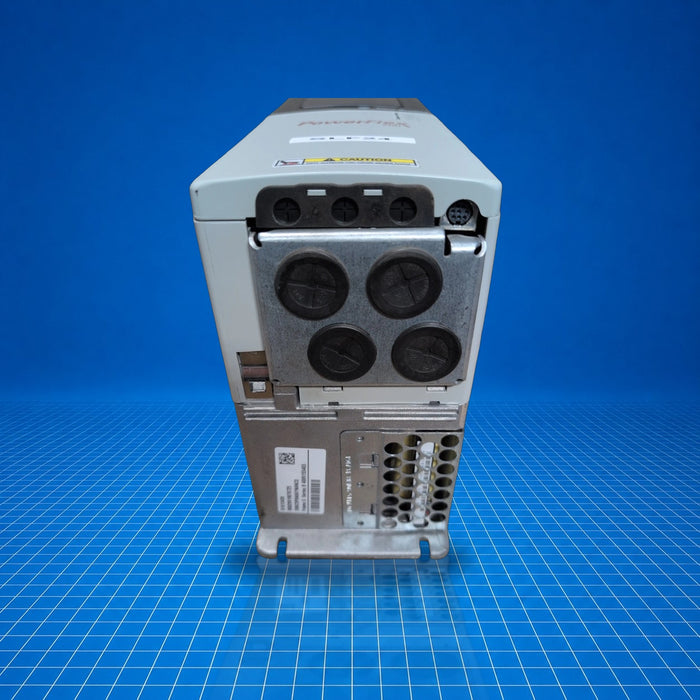

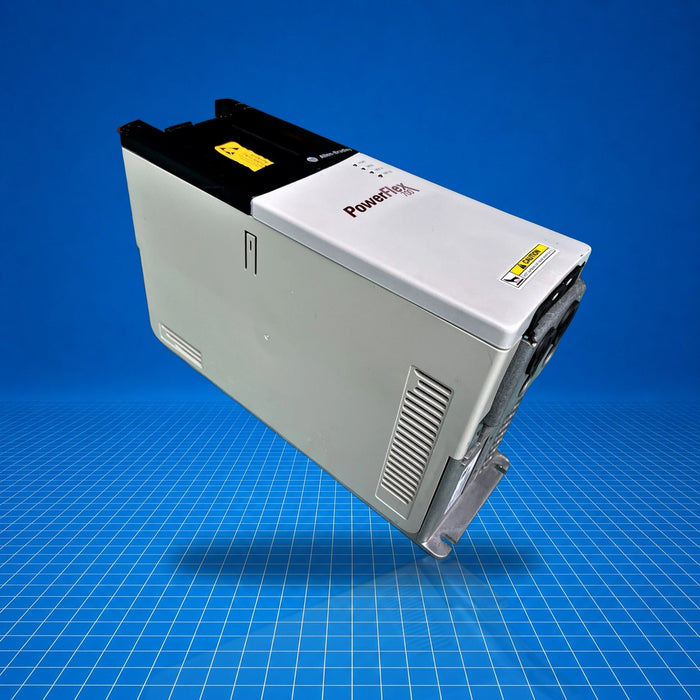

The 20BC5P0A0AYNANC0 is an Allen-Bradley PowerFlex 700 AC drive (catalog series 20B), rated for 5 A output current (normal duty) and 2.2 kW. It provides motor speed and torque control using vector control with 24 V DC I/O and supports multiple industrial communication protocols. It integrates with three-phase 400 V AC power systems and is used to manage motor-driven machinery in industrial applications such as conveyors, pumps, mixers, and packaging equipment.
Best Suited For
- Three-phase motor speed and torque control
- Industrial machinery such as conveyors and pumps
- Retrofit or replacement in installations using PowerFlex 700 drives
- Applications requiring diverse protocol support (EtherNet/IP, DeviceNet, LON, PROFIBUS, CAN, Modbus)
Frame / Rating
Frame 0, 5 A (2.2 kW normal duty, 1.5 kW heavy duty)
Input voltage
400 V AC, 3-phase (380…480 V)
Control method
Sensorless vector control with 24 V DC I/O
Protocols supported
EtherNet/IP, DeviceNet, LON, PROFIBUS, CAN, Modbus
Enclosure
IP20 / NEMA/UL Type 1
Technical Specifications
I/O & Electrical
Input voltage
400 V AC, 3-phase (380…480 V)
Output current (continuous)
5 A
Power rating (normal duty)
2.2 kW
Power rating (heavy duty)
1.5 kW
Number of digital inputs
6
Number of digital outputs
3
Number of analogue inputs
2
Number of analogue outputs
2
Internal watts loss
46 W @ 400 V, normal duty
Total watts loss
93 W @ 400 V, normal duty
Communication & Power
Control method
Vector control (sensorless) with 24 V DC I/O
EtherNet/IP support
True
DeviceNet support
True
LON support
True
PROFIBUS support
True
CAN support
True
Modbus support
True
Brake IGBT
Installed
EMC filter
With EMC filter and common mode choke
Physical & Environmental
Enclosure rating
IP20 / NEMA/UL Type 1
Operating temperature
0…50 °C (frame 0)
Storage temperature
-40 °C
Relative humidity
5…95% non-condensing
Altitude (max without derating)
1000 m
Shock resistance
15 g, 11 ms
Vibration resistance
0.152 mm displacement, 1 g peak
Certifications
UL ListedCEcULus
Certifications apply as of November 20, 2025; check product label for specific unit.
