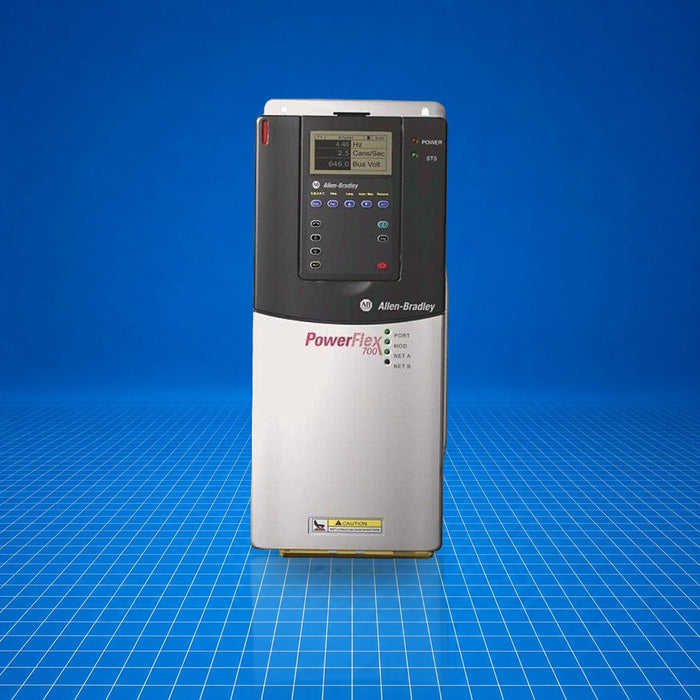

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
20BD022A3AYNANB0 Allen-Bradley
Original price
$0.00
-
Original price
$7,333.32
Original price
$7,333.32
$0.00
-
$7,333.32
Current price
$7,333.32
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley PowerFlex 700 AC Drive 20BD022A3AYNANB0 is a three-phase adjustable frequency drive rated for 22 A continuous (15 hp) for industrial motor control. It belongs to the PowerFlex 700 platform and functions as an AC motor drive module for controlling speed, torque, and direction in automated systems. Typical applications include conveyor drives, pump and fan control, material handling, HVAC systems, and general machine tool motor control.
Best Suited For
- Three-phase AC motor speed and torque control
- Conveyor and pump applications
- HVAC and material handling systems
- Machine tool drives
- Retrofit into existing PowerFlex 700 systems
Input voltage
480 V AC, 3-phase, 60 Hz
Continuous current
22 A
PWM frequency
4 kHz
Protection rating
IP20
Weight
9.98 kg
Technical Specifications
I/O & Electrical
Analog outputs
2
Communication & Power
Fuse rating
40 A @ 650 V DC
Bus nominal voltage
648 V DC
AC undervoltage trip
280 V AC
DC bus undervoltage fault
305 V DC
PWM frequency
4 kHz @ 650 V DC
Physical & Environmental
Degree of protection
IP20
Shock withstand
15 G peak, 11 ms
Vibration withstand
0.152 mm displacement, 1 G peak
Dimensions (W × H × D)
135 mm × 336 mm × 200 mm
Weight
9.98 kg
Certifications
EAC
Eurasian Economic Community certification noted on documentation; verify label for specific unit.
