20BD034A0AYNANC0 Allen-Bradley

Original price $5,173.49 - Original price $6,998.63
Original price
$5,173.49
$5,173.49 - $6,998.63
Current price $5,173.49
Surplus - Tested (With Warranty)
Need a Specific Revision?
$5,173.49
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$6,998.63
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

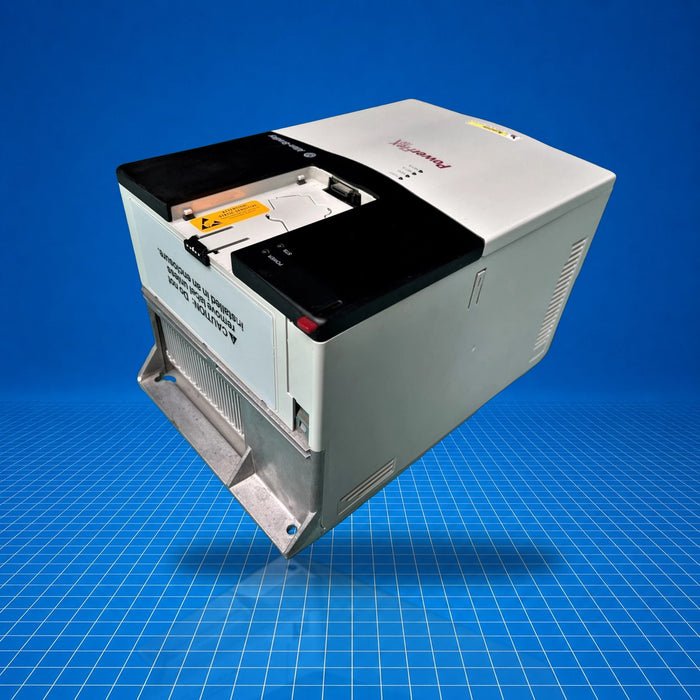

The 20BD034A0AYNANC0 is a PowerFlex 700 AC drive, rated 34 A (normal duty) at 25 HP (20 HP heavy duty). It has no human interface module (blank plate), includes a brake IGBT, conformal coating, no drive-mounted brake resistor, and supports vector control with 24 V I/O. It operates from 480 VAC, three-phase input and delivers up to 460 VAC output for motor control. It is part of the PowerFlex 700 family and is designed for industrial motor speed and torque regulation in applications such as pumps, conveyors, mixers, and fans.

Best Suited For

  • Industrial motor control (pumps, conveyors, fans)
  • Vector control applications requiring speed/torque precision
  • Environments needing conformal-coated IP20 drives
  • Retrofit installations replacing PowerFlex 700 units
Frame Rating
34 A Normal / 20 HP Heavy-Duty
Input Voltage
480 VAC, 3-phase, 60 Hz
Control Method
Vector control with 24 V I/O
Enclosure
IP20 / NEMA/UL Type 1
Lifecycle Status
Discontinued (Nov 30 2023)

Technical Specifications

I/O & Electrical

Input voltage
480 VAC, 3-phase, 60 Hz
Output voltage
0…460 VAC
Output current
34 A continuous (@650 V DC bus)
Output current (1 min)
40.5 A
Output current (3 s)
54 A

Communication & Power

Brake IGBT
Installed
Control options
Vector control with 24 V DC I/O
Internal communication module
None
Carrier frequency options
2, 4, 8, 10 kHz (rating based on 4 kHz)

Physical & Environmental

Enclosure rating
IP20 / NEMA/UL Type 1
Operating temperature
0…50 °C
Storage temperature
-40 °C
Shock
15 G peak, 11 ms
Vibration
0.152 mm displacement, 1 G peak
Weight
15.2 kg
Dimensions (H × W × D)
342.5 × 222 × 200 mm

Certifications

Eurasian Economic Community
