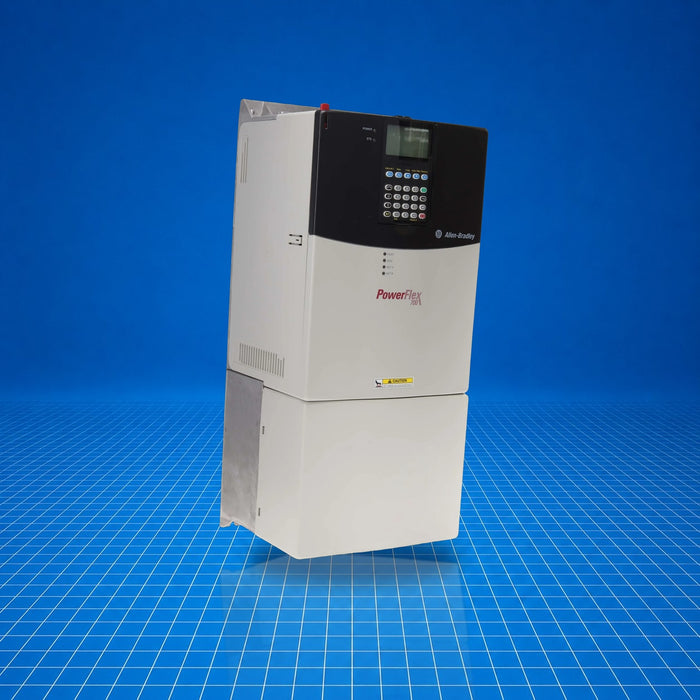

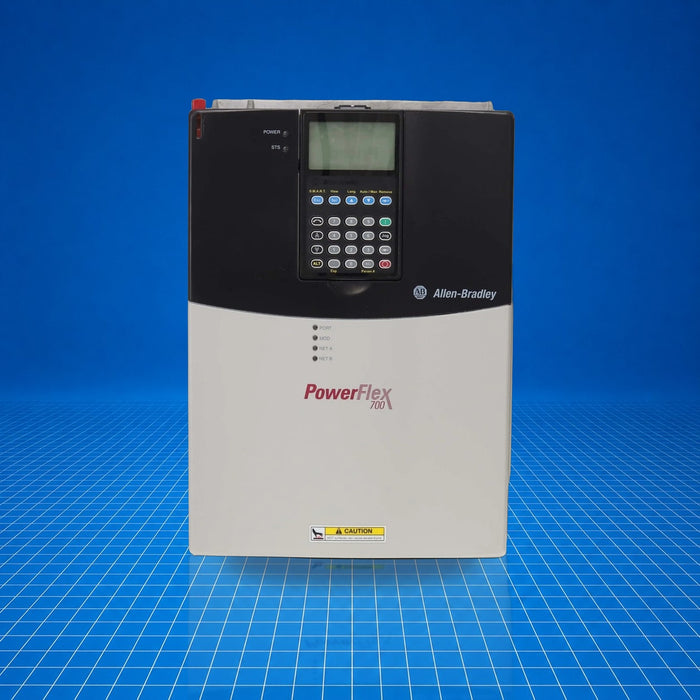

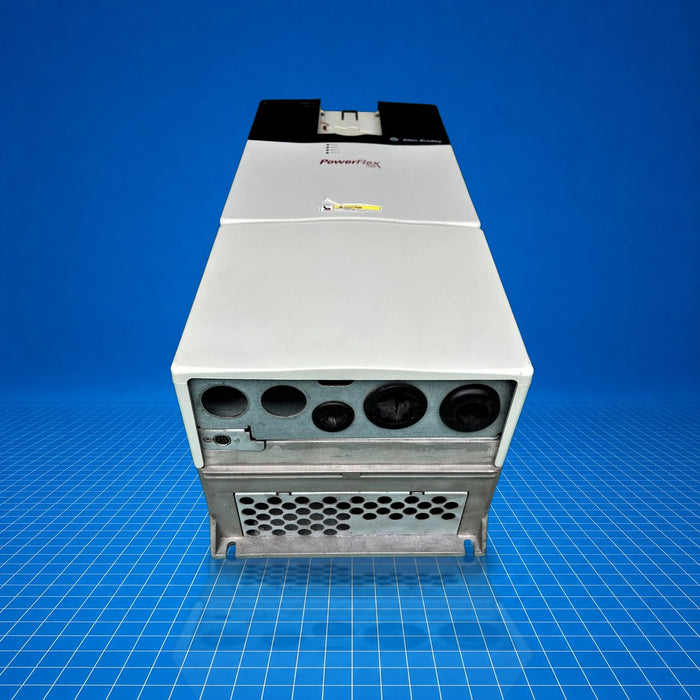

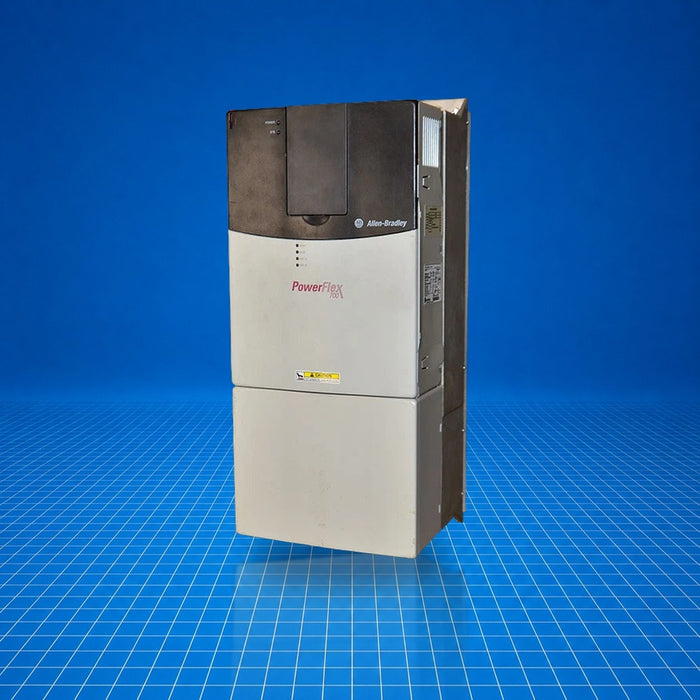

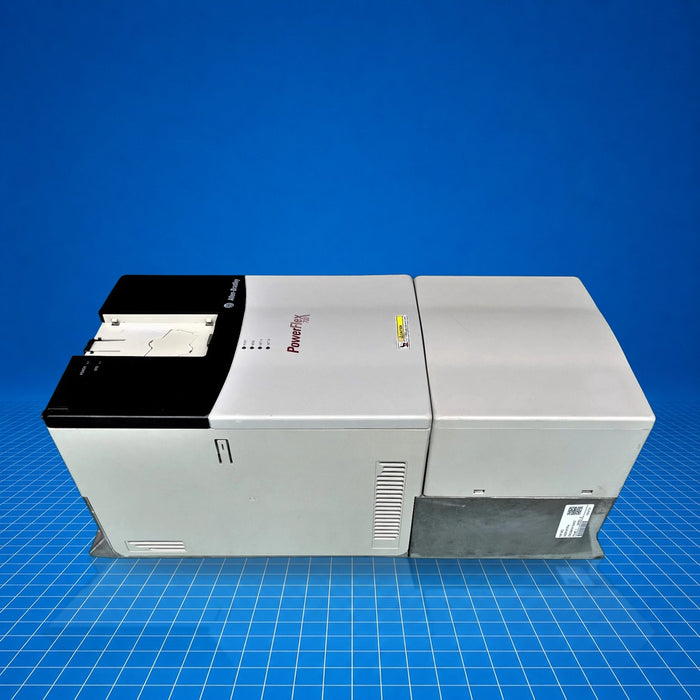

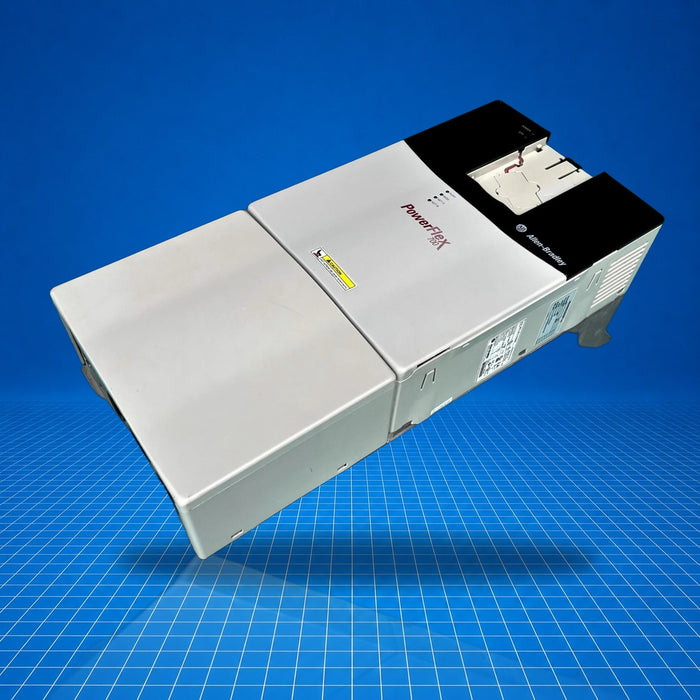

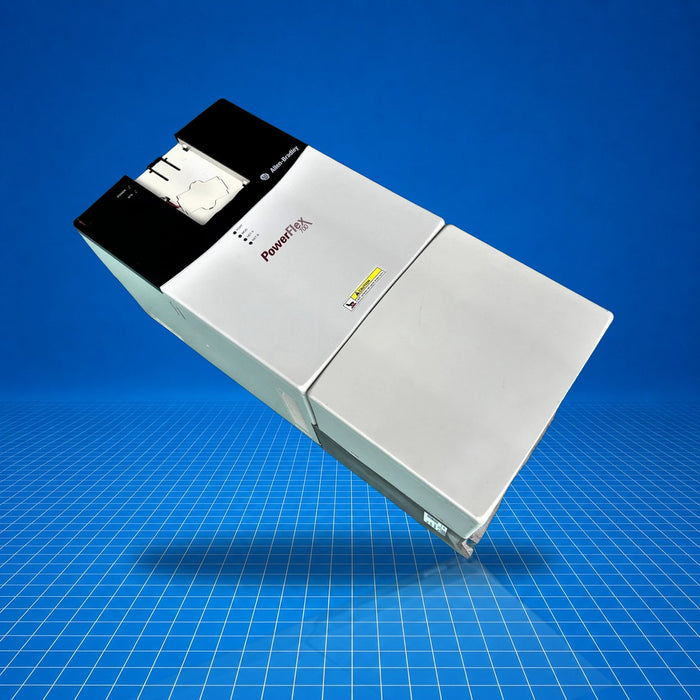

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
20BD040A0AYNAND0 Allen-Bradley
Original price
$4,875.00
-
Original price
$6,433.50
Original price
$4,875.00
$4,875.00
-
$6,433.50
Current price
$4,875.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 20BD040A0AYNAND0 is an Allen-Bradley PowerFlex 700 adjustable-frequency AC drive, rated for 40 A continuous output current, geared for approximately 30 HP motor applications. It belongs to the 20B family of drives, providing variable-frequency motor control in industrial systems. In a control setup, it serves as a motor speed and torque controller, handling vector or V/Hz control in material handling, conveyor systems, pumps, fans, or general-purpose motor control. 20BD040A0AYNAND0 integrates with standard control interfaces and supports EtherNet/IP and DeviceNet communications.
Best Suited For
- Three-phase motor speed control (up to ~30 HP)
- Material handling or conveyor drive applications
- Pump or fan VFD installations
- Integration into EtherNet/IP or DeviceNet control networks
Continuous output current
40 A
Nominal motor power
30 HP (~22 kW)
Input voltage
480 V AC, 3-phase, 60 Hz
Enclosure rating
IP20 / NEMA/UL Type 1
Communication support
EtherNet/IP, DeviceNet
Technical Specifications
I/O & Electrical
Input voltage
480 V AC, 3-phase, 60 Hz
Output current (continuous)
40 A
Output current (1 min)
51 A
Output current (3 s)
68 A
Internal watts loss
103 W @ 480 V, 30 HP normal duty
External watts loss
357 W @ 480 V, 30 HP normal duty
Total watts loss
459 W @ 480 V, 30 HP normal duty
Logic control ride-thru
0.5 s minimum, 2 s typical
Communication & Power
Supporting protocols
EtherNet/IP, DeviceNet
Encoder supply
12 V @ 250 mA (min 10 mA)
Carrier frequency
2, 4, 8, and 10 kHz (rating based on 4 kHz)
Physical & Environmental
Enclosure type
IP20 / NEMA/UL Type 1
Dimensions (W×H×D)
222 mm × 517.5 mm × 200 mm
Weight
22.68 kg (drive and packaging)
Operating temperature
0…50 °C (32…122 °F)
Storage temperature
-40 °C
Relative humidity
5…95%, non-condensing
Altitude
≤ 1000 m (3300 ft) without derating
Shock
15 g peak, 11 ms
Vibration
0.152 mm displacement, 1 g peak
