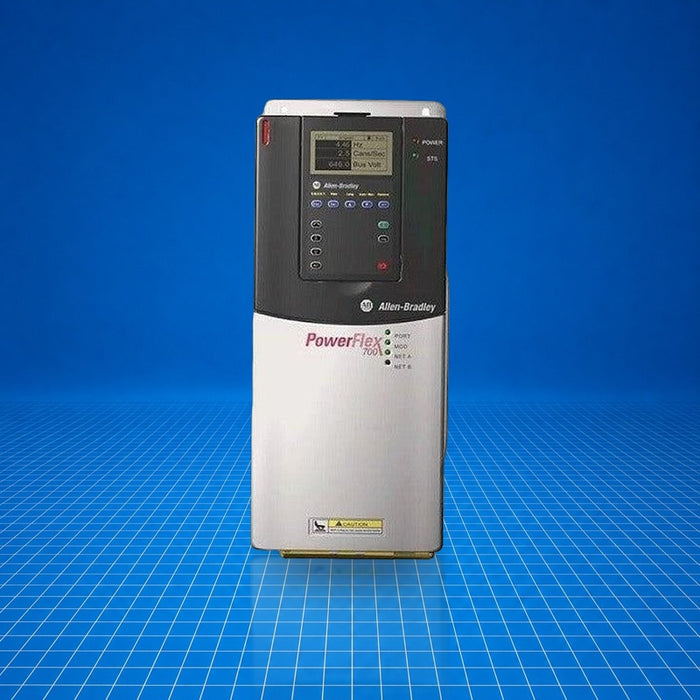

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

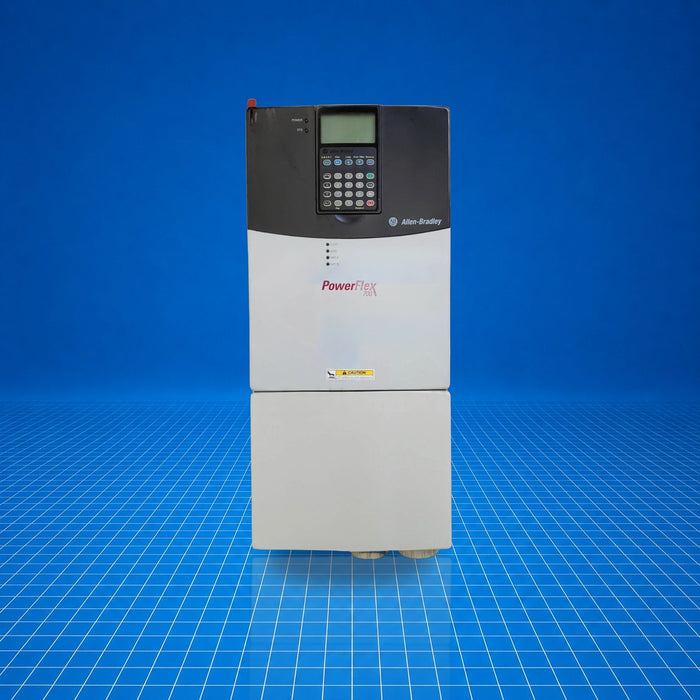

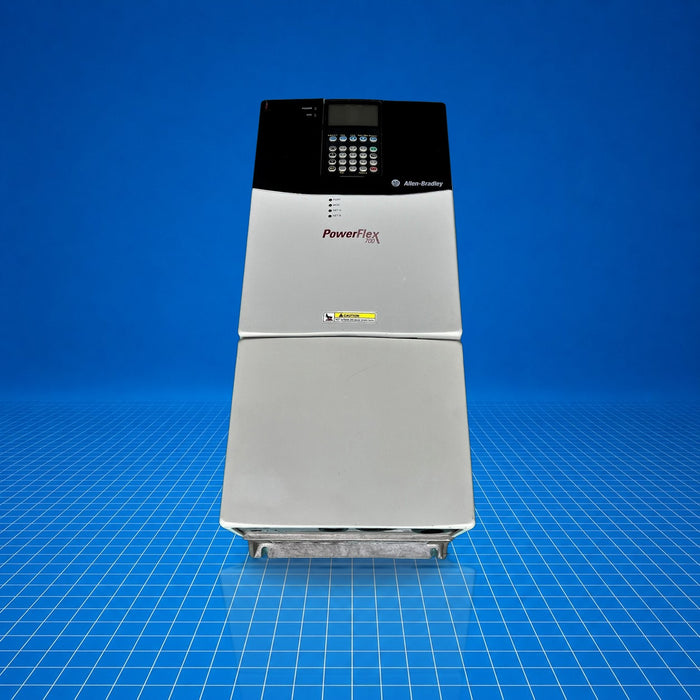

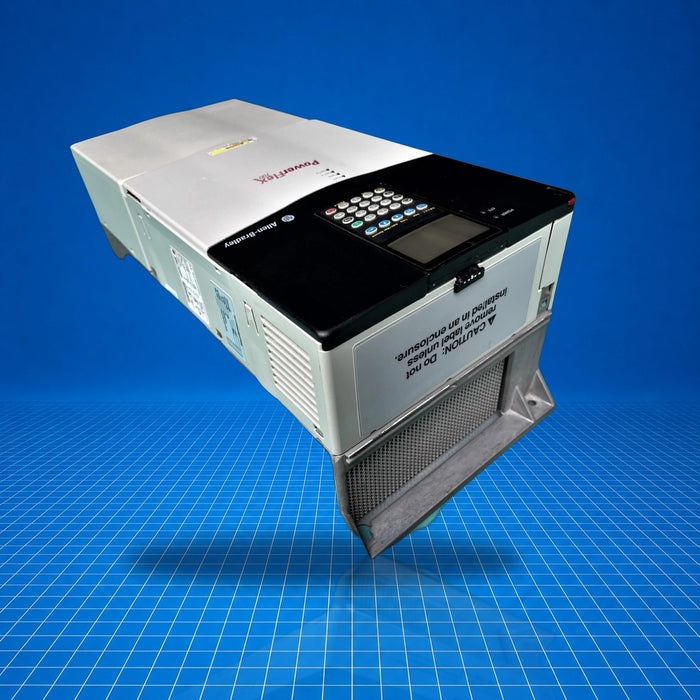

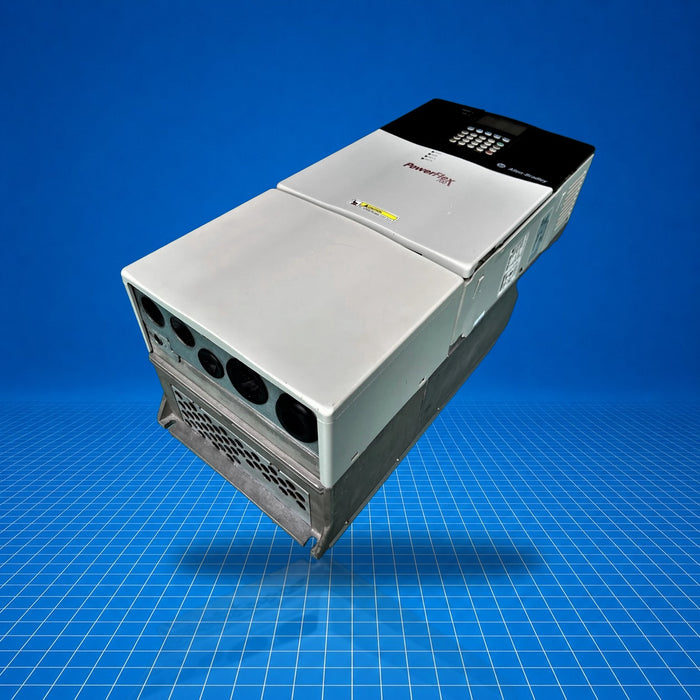

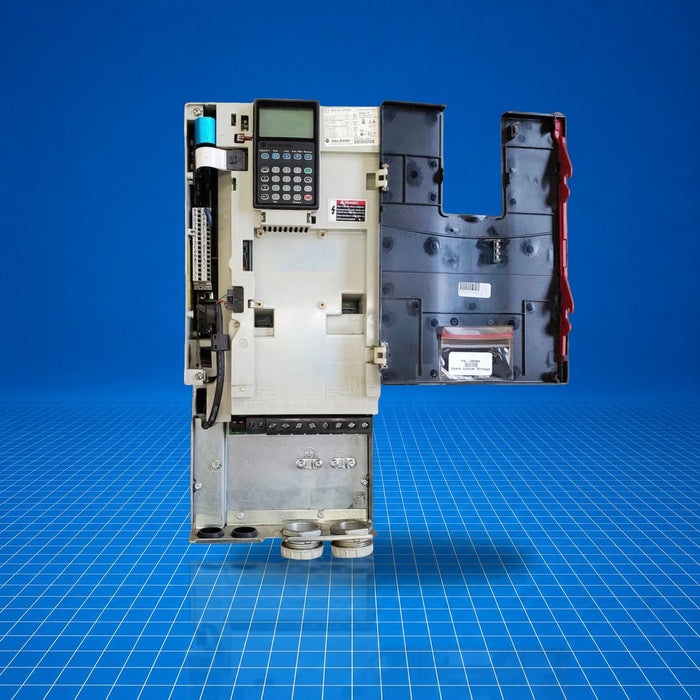

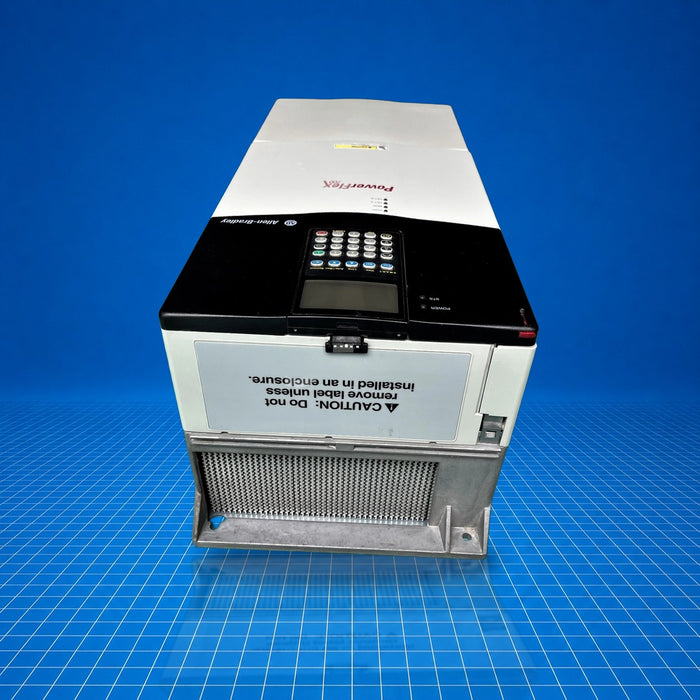

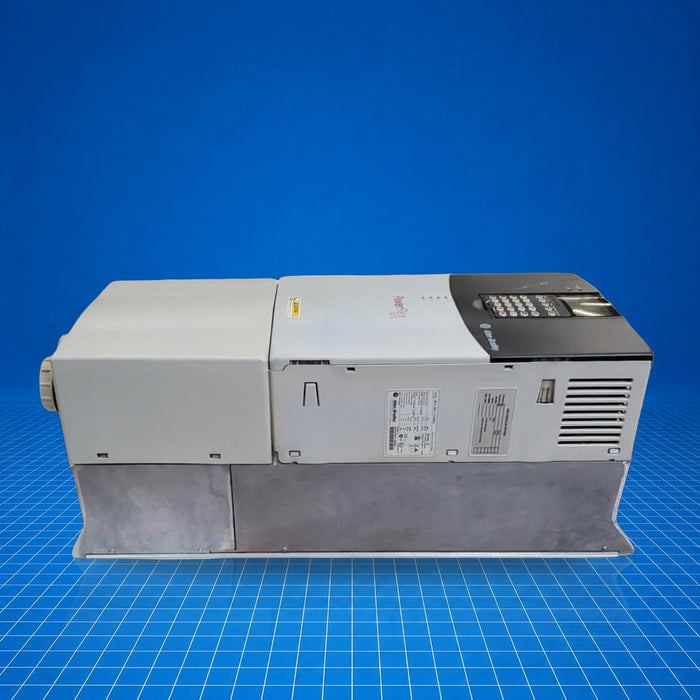

20BD065A3AYNANC0 Allen-Bradley
Original price
$5,968.50
-
Original price
$14,999.99
Original price
$5,968.50
$5,968.50
-
$14,999.99
Current price
$5,968.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley PowerFlex 700 AC Drive, catalog number 20BD065A3AYNANC0, is a three-phase variable frequency drive (VFD) rated approximately 65 A (50 hp) at 480 V AC. It belongs to the PowerFlex 700 platform and is designed to regulate motor speed and torque in industrial systems. In a control architecture it serves as the motor control module, interfacing with control networks and managing drive behavior. Applications include pump, fan, and conveyor drive control as well as general-purpose motion control in manufacturing and process environments. 20BD065A3AYNANC0
Best Suited For
- Three-phase 480 V AC motor speed control
- Integration with DeviceNet or EtherNet/IP (depending on option)
- Replacement or maintenance of discontinued PowerFlex 700 drives
- Industrial pump, fan, conveyor system control
Rated output current
65 A
Input voltage
480 V AC, 3-phase, 60 Hz
Enclosure rating
IP20 / NEMA/UL Type 1
DeviceNet / EtherNet-IP support
True (depending on variant)
Technical Specifications
I/O & Electrical
Input voltage
480 V AC, 3-phase, 60 Hz
Output current, continuous
65 A
Output current, 1 min
78 A
Output current, 3 s
104 A
Bus voltage, nominal
648 V DC
AC input undervoltage trip
280 V AC @ 480 V
Bus overvoltage trip
810 V DC
Communication & Power
Internal communication module
DeviceNet or EtherNet-IP depending on variant
Physical & Environmental
Degree of protection
IP20 / NEMA/UL Type 1
Surrounding air temperature
0…50 °C (0…122 °F)
Shock rating
15 G peak, 11 ms
Vibration
0.152 mm displacement, 1 G peak
Certifications
UL ListedCE
