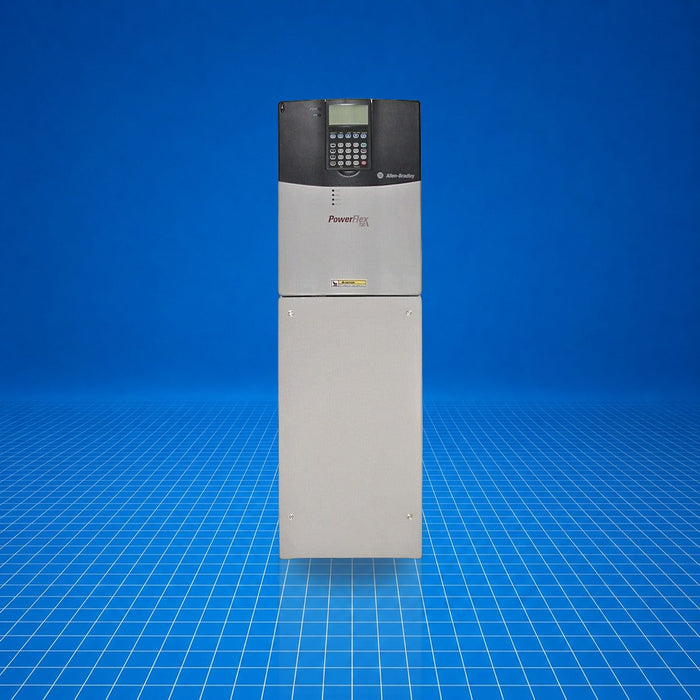

Product image is representative; revision or series may vary.
Contact us to request a specific version.

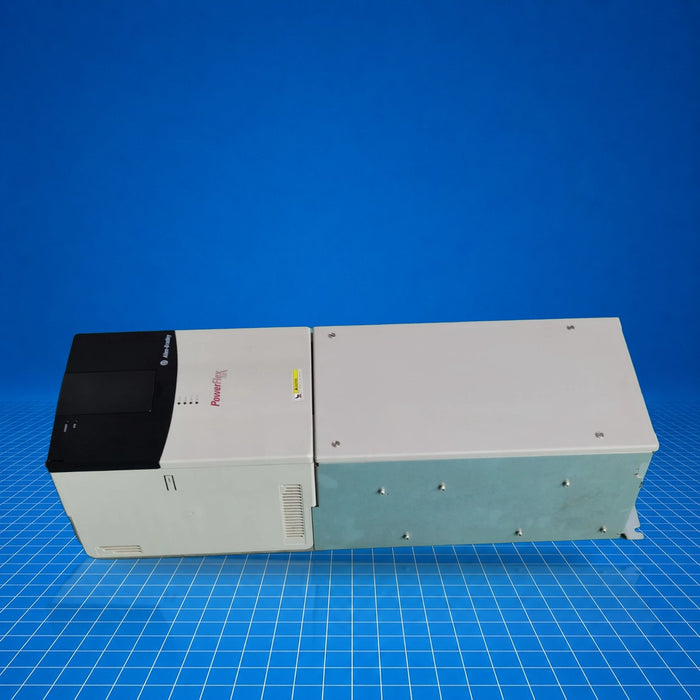

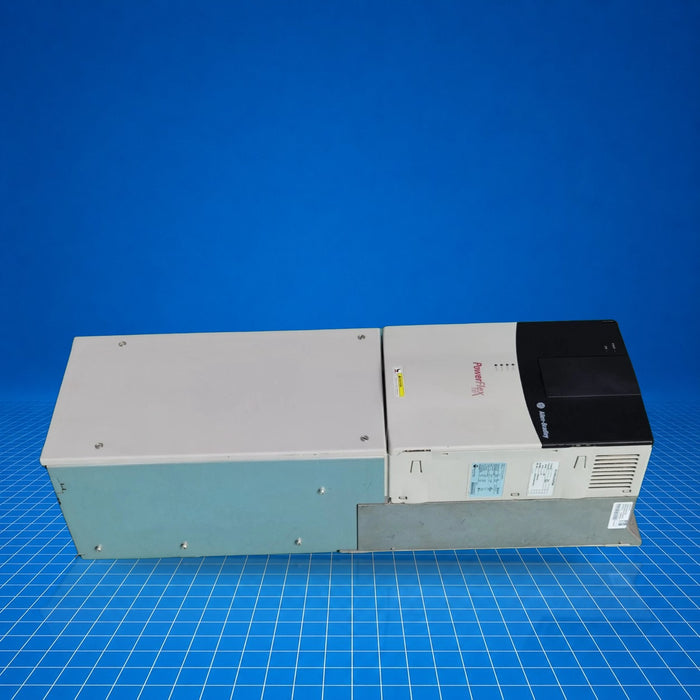

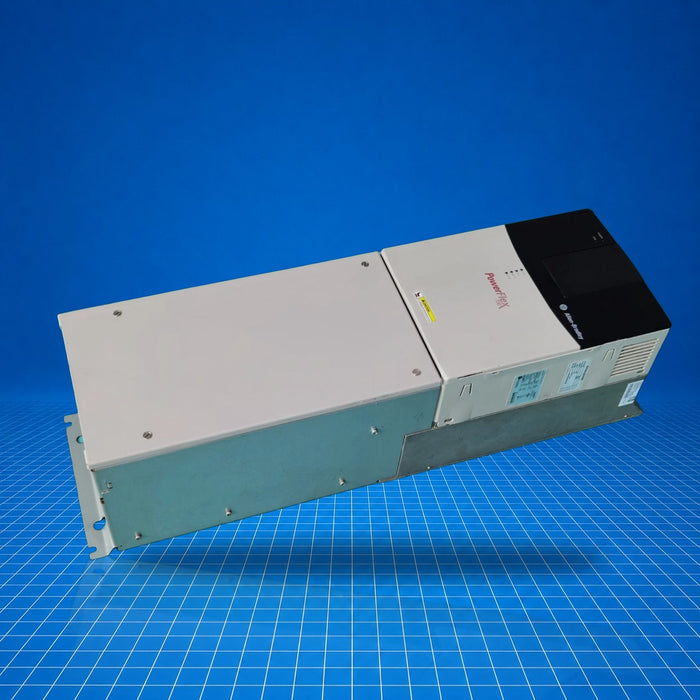

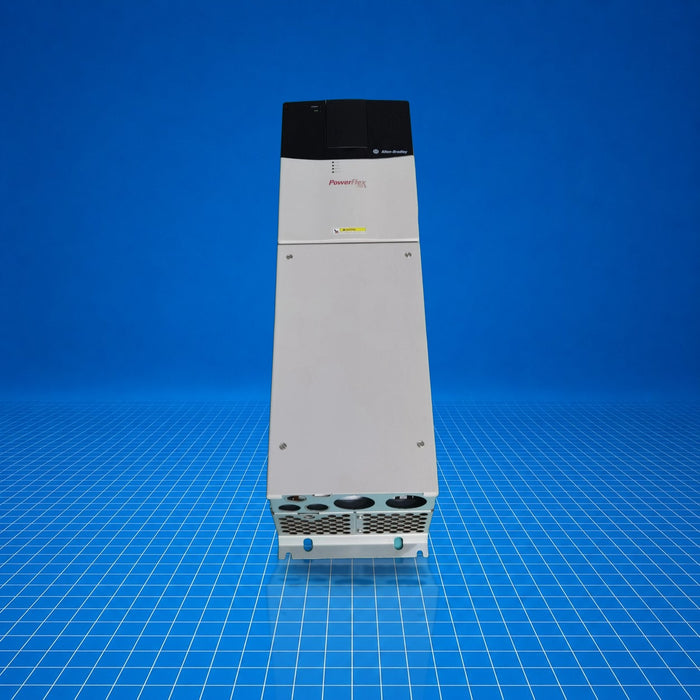

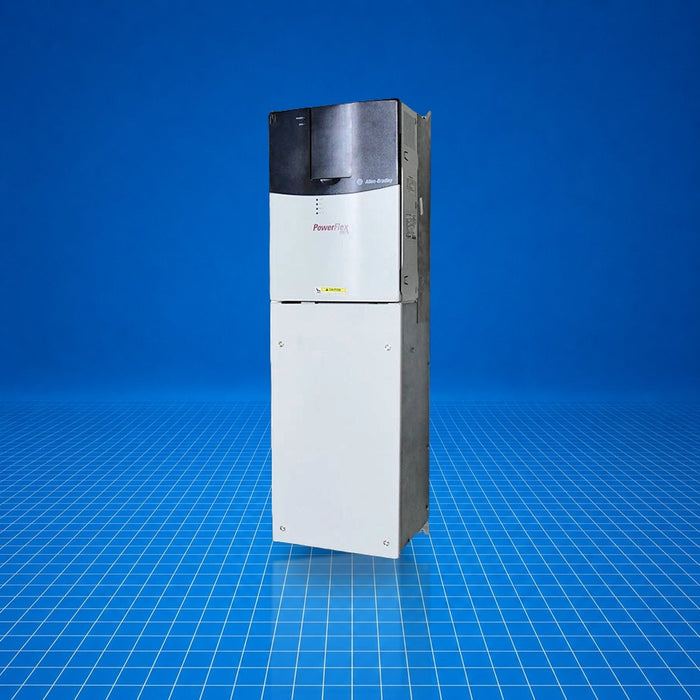

20BD077A0AYNANC0 Allen-Bradley

Name: 20BD077A0AYNANC0 Allen-Bradley
Brand: Allen Bradley
SKU: 20BD077A0AYNANC0
Price: 17398.93 USD
Availability: InStock

$17,398.93 - $23,925.00

$17,398.93

$17,398.93 - $23,925.00

$17,398.93

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley PowerFlex 700 AC Drive, catalog number 20BD077A0AYNANC0, is a three-phase variable-frequency drive rated for 480 VAC input and continuous output current of 77 A (60 HP normal duty, 50 HP heavy duty). Designed for vector control with 24 V DC I/O and integrating a brake IGBT, it performs motor speed and torque regulation in industrial motor control systems. The drive supports ControlNet communications and is suitable for applications such as pump, fan, conveyor, and general motor control in enclosure-mounted environments. The part is discontinued as of November 30, 2023.

Best Suited For

Replacing or repairing discontinued PowerFlex 700 drives
On-machine motor speed and torque control
Vector control motor applications with 24 V DC I/O
Enclosed industrial installations (IP20 / NEMA-1)
ControlNet-enabled control system integration

Input voltage

480 V AC, three-phase, 60 Hz

Continuous output current

77 A (60 HP normal duty)

Enclosure rating

IP20 / NEMA/UL Type 1

Control method

Vector control with 24 V DC I/O

Communications

ControlNet coaxial

Technical Specifications

I/O & Electrical

Input voltage

480 V AC, three-phase, 60 Hz

Output voltage

0…460 V AC (single-phase)

Continuous output current

77 A @ 650 V DC normal duty

1 min heavy duty output current

98 A @ 650 V DC

3 s heavy duty output current

130 A @ 650 V DC

Input current rating

84.5 A @ 650 V DC, 60 HP normal duty

Communication & Power

Control I/O

Vector control with 24 V DC I/O

Internal communication module

ControlNet coaxial

Fuse current rating

150 A @ 650 V DC

Carrier frequency

2, 4, 8, and 10 kHz (rating based on 4 kHz)

Input power rating

60.1 kVA @ 480 V AC, normal duty

Physical & Environmental

Degree of protection

IP20 / NEMA/UL Type 1

Height (approx)

758.8 mm

Width (approx)

220 mm

Depth (approx)

201.7 mm

Weight (approx)

29.03 kg

Operating temperature

0…50 °C (most ratings)

Storage temperature

-40 °C

Relative humidity

5…95% non-condensing

Shock

15 G peak, 11 ms

Vibration

0.152 mm displacement, 1 G peak

Pollution degree

1 (EN 61800-5-1)

Certifications

EAC

Certifications include Eurasian Economic Community; refer to product label for exact certifications.
