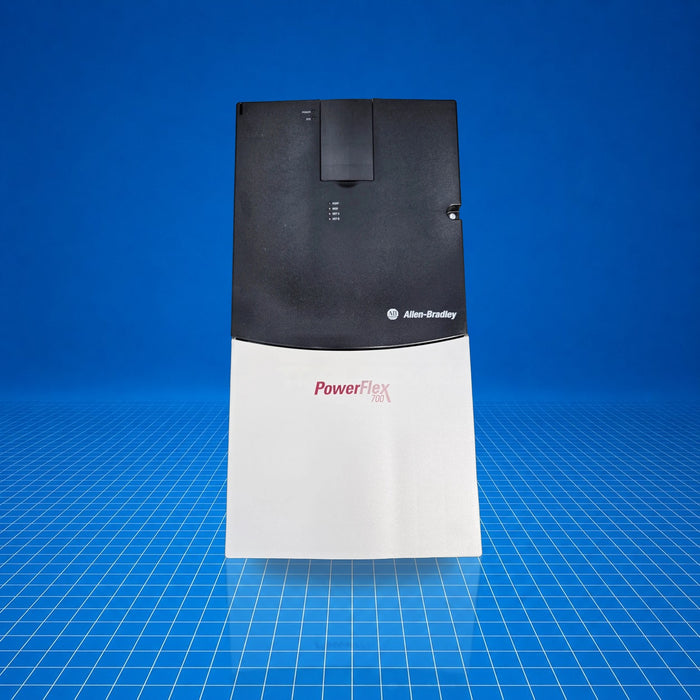

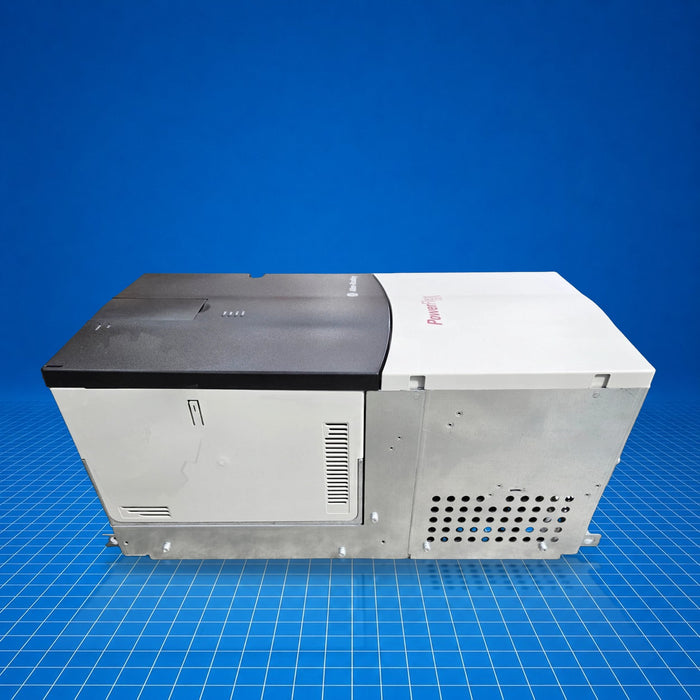

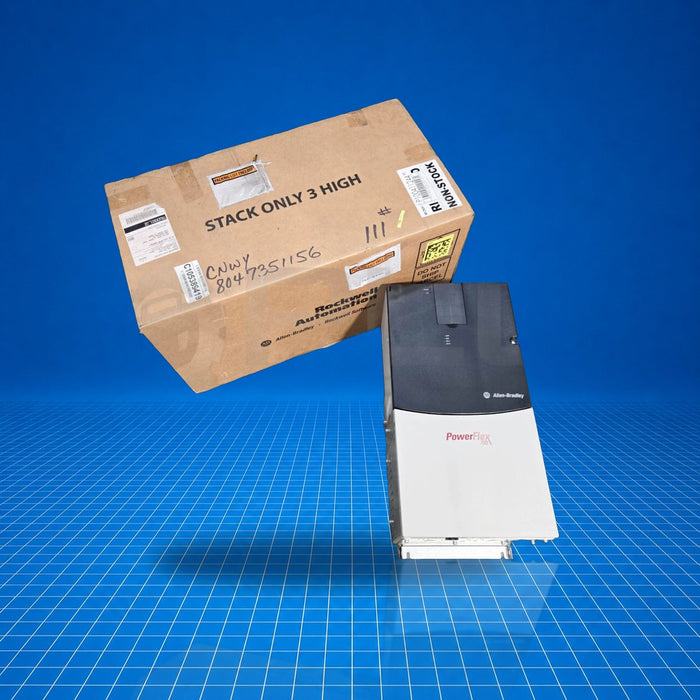

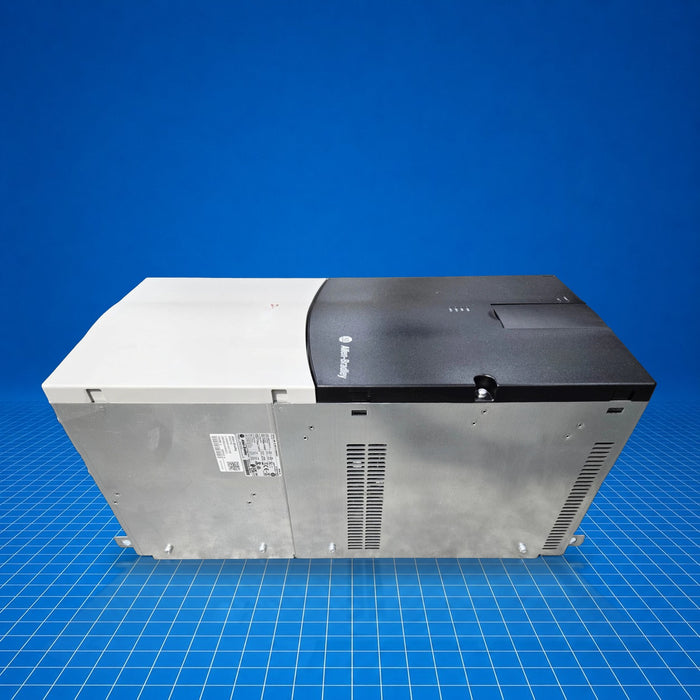

20BD096A0ANNANC0 Allen-Bradley
Original price
$0.00
-
Original price
$27,038.15
Original price
$27,038.15
$0.00
-
$27,038.15
Current price
$27,038.15
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 20BD096A0ANNANC0 is a PowerFlex 700 AC Drive, three-phase, rated for 96 A continuous and 75 Hp normal-duty at 480 V. It performs motor speed and torque control via vector control, suitable for industrial machinery requiring variable-speed AC motor drives. Applications include pump control, conveyor systems, mixers, and general automation requiring precise motor control under heavy load.
Best Suited For
- Heavy-duty motor speed control (up to 75 Hp normal-duty)
- Vector control applications with 480 V three-phase motors
- Machines requiring both DeviceNet and EtherNet/IP connectivity
- Industrial installations with IP20/NEMA 1 enclosure requirements
Continuous output current
96 A
Normal-duty horsepower
75 Hp
Input voltage rating
480 V AC, 3-phase, 60 Hz
Communication options
DeviceNet and EtherNet/IP support
Discontinued date
November 30, 2023
Technical Specifications
I/O & Electrical
Input voltage rating
480 V AC, 3-phase, 60 Hz
Continuous output current
96 A @ 480 V AC, 3-phase, normal duty
1-minute output current (heavy duty)
116 A
3-second output current (heavy duty)
154 A
Input current rating
90.1 A @ 480 V AC, 3-phase
Input power rating
74.9 kVA @ 480 V AC, 3-phase, normal duty
AC input undervoltage trip
280 V AC @ 480 V
Bus voltage, nominal
648 V DC @ 480 V
Bus undervoltage shutoff/fault
305 V DC @ 480 V
Bus overvoltage trip
810 V DC @ 480 V
Communication & Power
Internal communication module
Supports DeviceNet and EtherNet/IP
Carrier frequency
2, 4, 8, and 10 kHz (rating based on 4 kHz)
Physical & Environmental
Degree of protection
IP20 / NEMA Type 1
Shock resistance
15 G peak for 11 ms (±1.0 ms)
Vibration
0.152 mm displacement, 1 G peak
Surrounding air temperature
0…50 °C (0…122 °F) @ frames 5-6
Storage temperature
-40 °C
Altitude
1000 m (3300 ft) maximum without derating
Weight
154.68 kg (drive and packaging) [IP54/NEMA 12 approx]
Dimensions (W × D × H)
609.6 mm × 450.7 mm × 1574.8 mm (IP54/NEMA 12 standalone)
Certifications
Discontinued
Certified as of November 20, 2025; users must verify applicable certifications on the product label.
