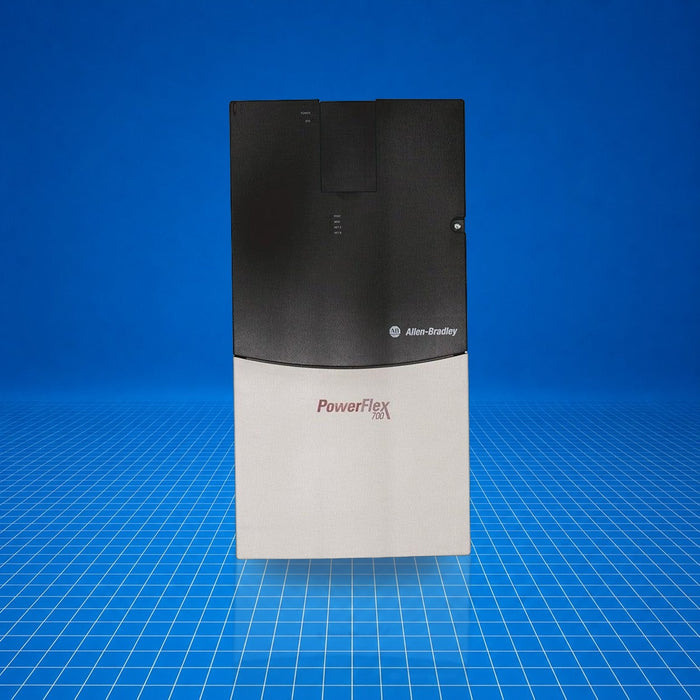

Product image is representative; revision or series may vary.
Contact us to request a specific version.

20BD096A3AYNANC0 Allen-Bradley

Name: 20BD096A3AYNANC0 Allen-Bradley
Brand: Allen Bradley
SKU: 20BD096A3AYNANC0
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley PowerFlex 700 AC Drive, catalog number 20BD096A3AYNANC0, is a frame 5, three-phase variable frequency drive rated for 96 A continuous (approximately 75 Hp) operation. It is part of the PowerFlex 700 family and is used for speed and torque control of AC motors in industrial motor control applications. Typically deployed in pumping, HVAC, conveyor, or general pump/ fan drive applications, it provides programmable vector and V/Hz control. 20BD096A3AYNANC0 integrates motor control, drive protection, and communication capabilities in a single module.

Best Suited For

Three-phase AC motor speed/torque control
Pump, HVAC, conveyor applications
Vector control without external feedback
Replacement for line-side drives in drive panels

Continuous output current

96 A

Voltage rating

480 V AC, 3-phase

Control modes

Sensorless vector and V/Hz

Enclosure rating

IP20 / NEMA 1 (standalone)

Technical Specifications

I/O & Electrical

Input voltage

480 V AC, 3-phase, 60 Hz

Output current (continuous)

96 A @ 480 V AC, 3-phase

Output current (1 min)

116 A @ 480 V AC, 3-phase

Output current (3 s)

154 A @ 480 V AC, 3-phase

Input current rating

90.1 A @ 480 V AC, 3-phase

Input power rating

74.9 kVA @ 480 V AC, 3-phase, normal duty

PWM carrier frequency

2, 4, 8, 10 kHz (rating based on 4 kHz)

Internal watts loss

286 W @ 480 V, normal duty (IP20)

External watts loss

873 W @ 480 V, normal duty (IP54)

Total watts loss

1107 W @ 480 V, normal duty (IP54)

Communication & Power

Control logic ride-thru

0.5 s min, 2 s typical

Control options

Vector control with 24 V DC I/O

Protocols supported

EtherNet/IP, DeviceNet, LON, TCP/IP, PROFIBUS, CAN, Modbus (True)

Physical & Environmental

Enclosure type

IP20 / NEMA/UL Type 1

Operating temperature

0…50 °C

Storage temperature

-40 °C

Relative humidity

5…95 % noncondensing

Altitude

1000 m max without derating

Shock tolerance

15 g peak, 11 ms (±1 ms)

Vibration

0.152 mm displacement, 1 g peak

Certifications

EAC

Certified to Eurasion Economic Community standards; refer to specific unit label for other certifications.
