20BD156A0ANNANC0 Allen-Bradley
Original price
$23,512.13
-
Original price
$31,900.00
Original price
$23,512.13
$23,512.13
-
$31,900.00
Current price
$23,512.13
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

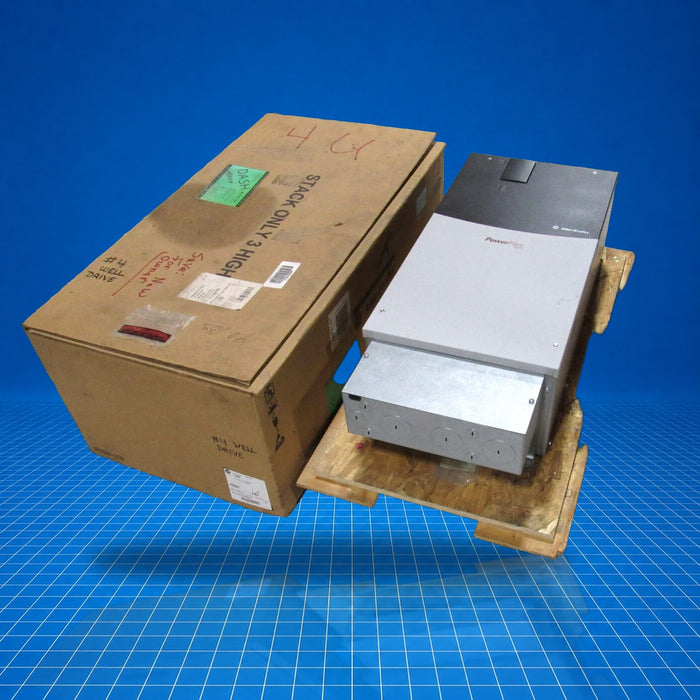

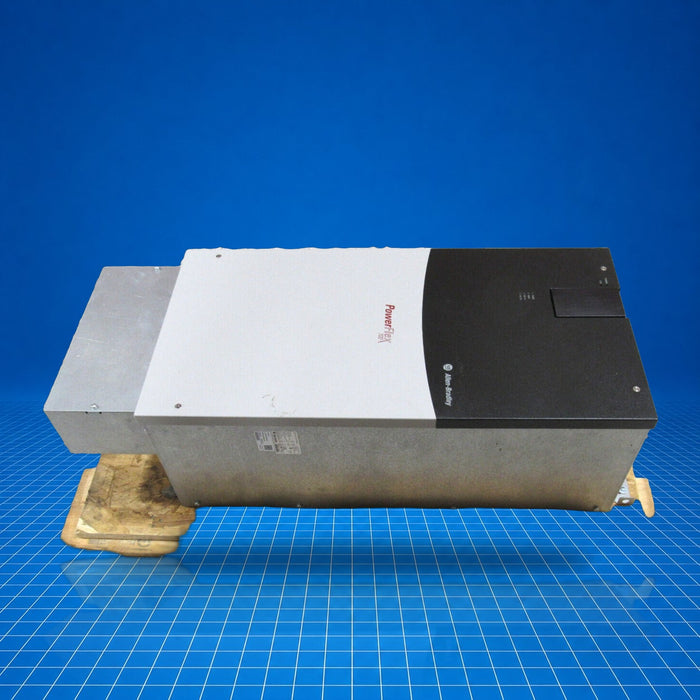

The 20BD156A0ANNANC0 is an Allen-Bradley PowerFlex 700 AC Drive (20B family), a variable-frequency drive designed to control three-phase AC motors in industrial automation systems. It serves as a motor controller to regulate speed, torque, and current for heavy-duty applications such as conveyors, pumps, compressors, or material handling systems. The drive integrates into control architectures for motion control, process automation, and motor protection. This listing covers 20BD156A0ANNANC0 in its discontinued yet documented configuration per manufacturer's technical data.
Best Suited For
- Three-phase AC motor control in industrial drives systems
- Heavy-duty applications requiring up to 156 A continuous current at 480 V AC
- Replacement or maintenance for PowerFlex 700 20B drives
- Integration into conveyor, pump, or compressor control loops
Continuous output current
156 A @ 480 V AC
Input voltage
480 V AC, three-phase, 60 Hz
Degree of protection
IP20
Operating temp range
0…50 °C (frames 5-6)
Storage temp
-40 °C
Technical Specifications
I/O & Electrical
Input voltage
480 V AC, three-phase, 60 Hz
Continuous output current
156 A @ 480 V AC, 3-phase, normal duty
1-min output current
188 A @ 480 V AC, 3-phase, heavy duty
3-sec output current
250 A @ 480 V AC, 3-phase, heavy duty
Input current rating
147 A @ 480 V AC, 3-phase
Bus nominal voltage
648 V DC @ 480 V
Bus undervoltage trip
305 V DC @ 480 V
Bus overvoltage trip
810 V DC @ 480 V
AC input undervoltage trip
280 V AC @ 480 V
Carrier frequencies
2, 4, 8, and 10 kHz (rating based on 4 kHz)
Communication & Power
Brake IGBT
Without brake IGBT
Internal communication module
None (model-specific, for ANNADC0 or others)
Physical & Environmental
Degree of protection
IP20
Operating temperature
0…50 °C (with top label, frames 5-6)
Storage temperature
-40 °C
Relative humidity
5…95 % non-condensing
Altitude
Max. 1000 m (3300 ft) without derating
Shock
15 G peak for 11 ms duration (±1.0 ms)
Vibration
0.152 mm displacement, 1 G peak
Sound level
72 dB @ 300 CFM fan velocity (Frame 6)
