20BD156A0ANNAND0 Allen-Bradley
Original price
$10,500.00
-
Original price
$31,900.00
Original price
$10,500.00
$10,500.00
-
$31,900.00
Current price
$10,500.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

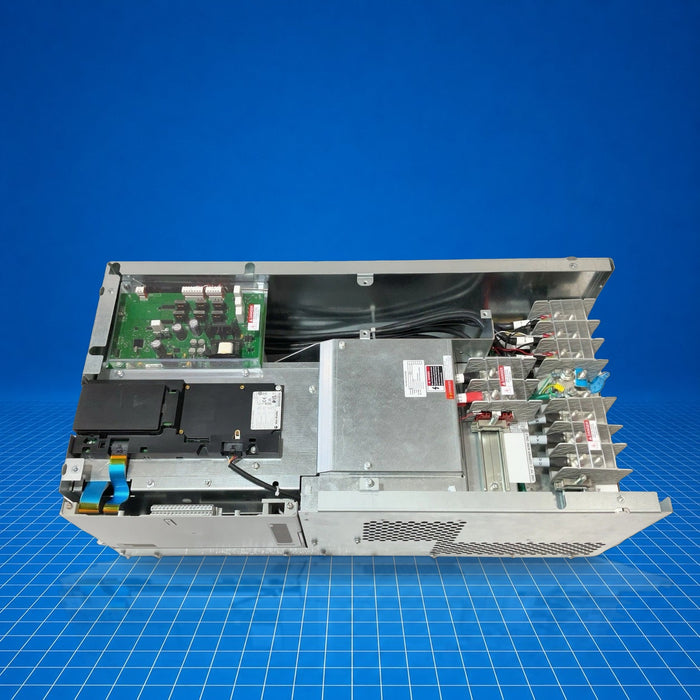

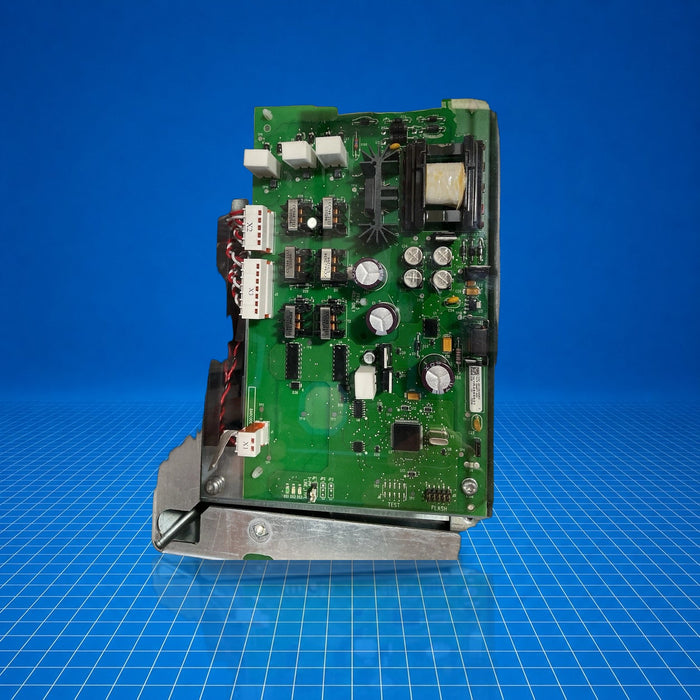

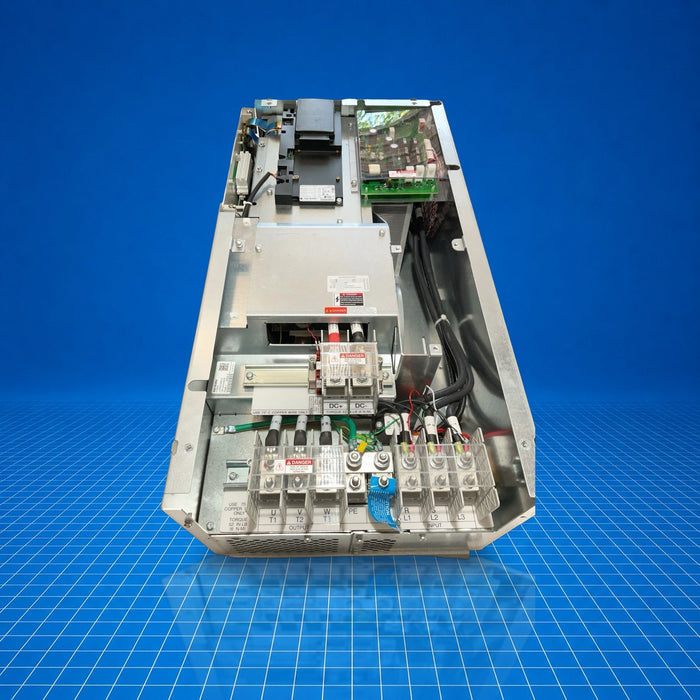

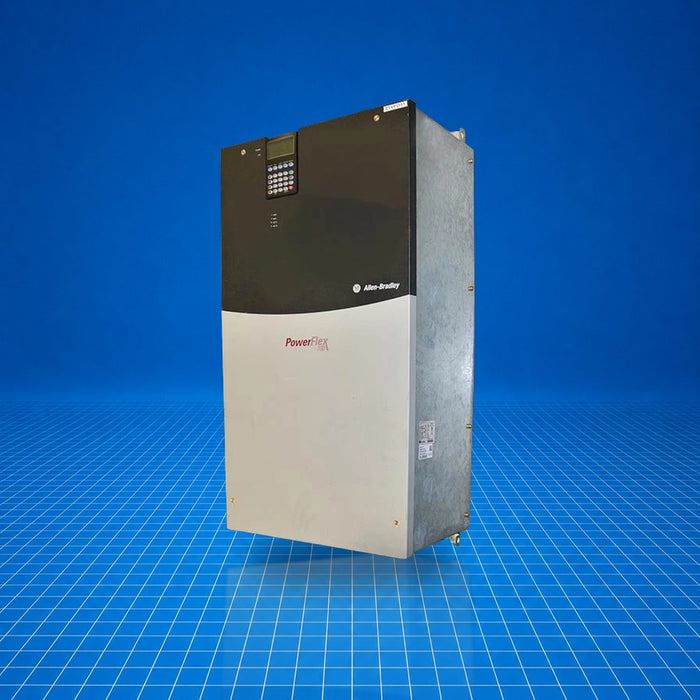

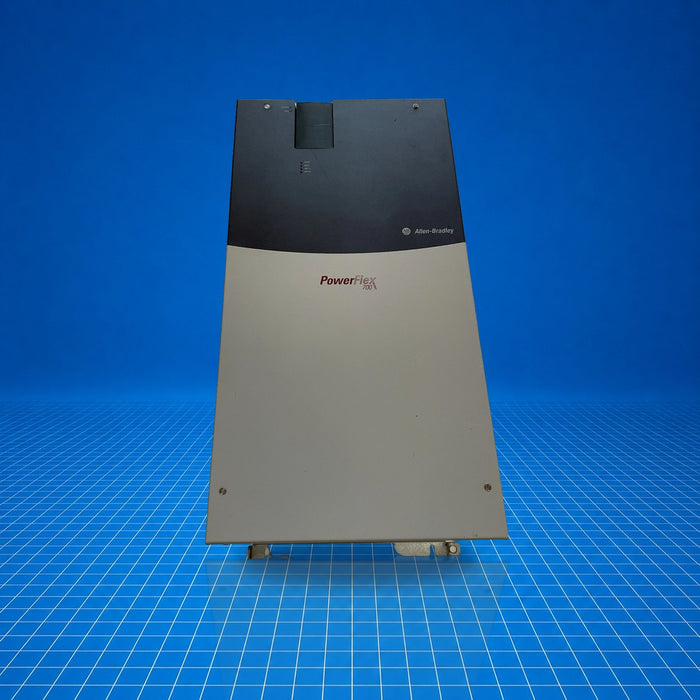

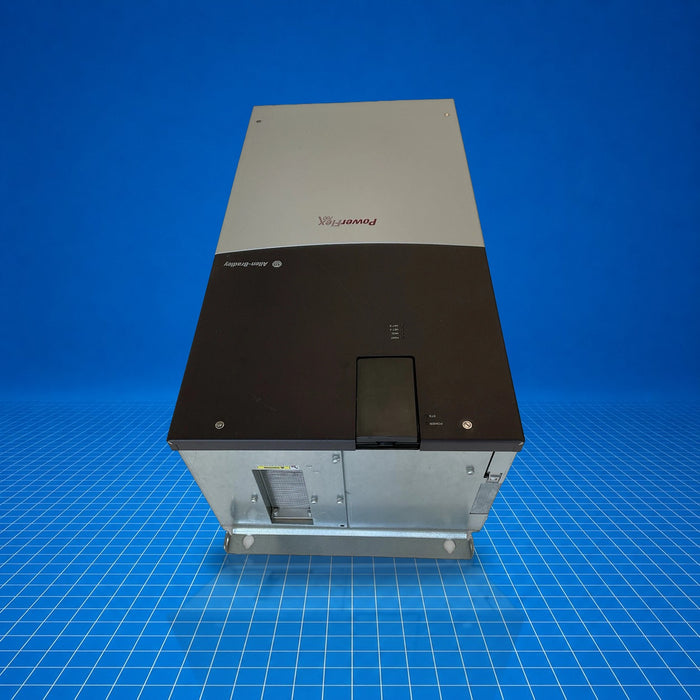

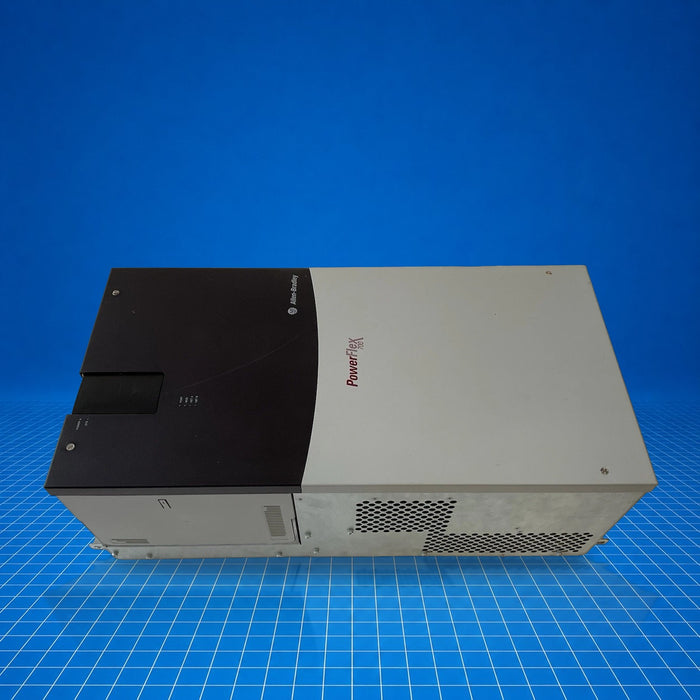

The Allen-Bradley PowerFlex 700 AC Drive 20B (catalog 20BD156A0ANNAND0) is a three-phase, 480 V AC variable frequency drive providing up to 156 A continuous output current. It controls motor speed and torque using vector control in industrial applications such as pump, fan, conveyor, and process motion control environments. As part of the PowerFlex 700 platform, it integrates into motor control systems requiring programmable acceleration/deceleration profiles and integrated protection features. 20BD156A0ANNAND0 supports programmable control and feedback mechanisms for flexible deployment.
Best Suited For
- Mid-power motor speed and torque control
- Pump, fan, or conveyor drive applications
- Vector control in industrial machinery
- Replacement in discontinued PowerFlex 700 20B series
Continuous output current
156 A
Input voltage
480 V AC, 3-phase, 60 Hz
IP rating
IP20
PWM frequency
4 kHz @ 480 V AC
Technical Specifications
I/O & Electrical
Input voltage
480 V AC, 3-phase, 60 Hz
Output current (continuous)
156 A @ 480 V AC, 3-phase, normal duty
Output current (1 min)
188 A @ 480 V AC, 3-phase, heavy duty
Output current (3 sec)
250 A @ 480 V AC, 3-phase, heavy duty
Input current
147 A @ 480 V AC, 3-phase
Carrier (PWM) frequency
2, 4, 8, and 10 kHz (drive rating based on 4 kHz)
Voltage trip (undervoltage)
280 V AC @ 480 V
Bus nominal voltage
648 V DC @ 480 V
Bus undervoltage shutoff/fault
305 V DC @ 480 V
Bus overvoltage trip
810 V DC @ 480 V
Communication & Power
Internal communication module
None
Physical & Environmental
Degree of protection
IP20
Shock rating
15 G peak, 11 ms (±1 ms)
Vibration
0.152 mm (0.006 in) displacement, 1 G peak
