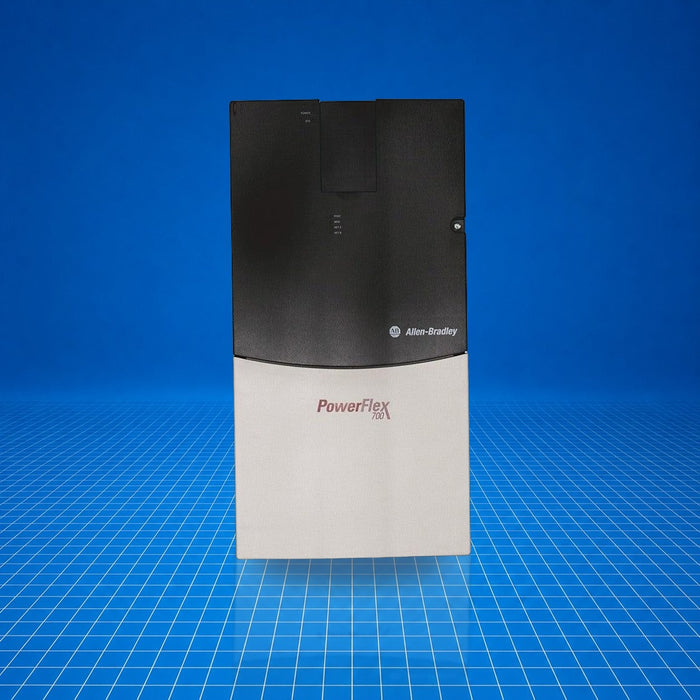

20BD180A0ANNANC0 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

20BD180A0ANNANC0 Allen-Bradley

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Surplus - Tested (With Warranty)
Get Pricing ~5 mins
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (0) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley PowerFlex 700 AC Drive model 20BD180A0ANNANC0 is a medium-voltage variable frequency drive (VFD) in the PowerFlex 700 family. It accepts 480 VAC three-phase input and delivers up to 180 A continuous (150 HP normal duty, 125 HP heavy duty) output for industrial motor speed and torque control. It features sensorless vector control, 24 V I/O, vector control with multiple safety and fault handling modes, and supports DeviceNet and EtherNet/IP communications, suitable for pump, fan, conveyor, and general machinery drive applications.

Best Suited For

  • HVAC pump and fan motor speed control
  • Conveyor drive in material handling
  • General machinery requiring 480 VAC variable speed control
  • Retrofit applications using DeviceNet or EtherNet/IP
Input voltage
480 V AC, 3-phase, 60 Hz
Continuous output current
180 A
Control method
Sensorless vector (24 V DC I/O)
Communication protocols
DeviceNet, EtherNet/IP
Enclosure rating
IP20 / Type 1

Technical Specifications

I/O & Electrical

Input voltage rating
480 V AC, 3-phase, 60 Hz
Output current rating, continuous
180 A
Output current rating, heavy-duty 1 min
234 A
Output current rating, heavy-duty 3 s
312 A
Number of analogue inputs
2
Number of analogue outputs
2
Number of digital inputs
6
Number of digital outputs
3

Communication & Power

Control method
Sensorless vector control with 24 V DC I/O
Communication protocols supported
DeviceNet (True), EtherNet/IP (True)
Carrier frequency
2, 4, 8, and 10 kHz (rating based on 4 kHz)
Efficiency
97.5 % at rated A, nominal line volts

Physical & Environmental

Enclosure type
IP20 / NEMA/UL Type 1
Operating environment
Ambient 0…50 °C (@ frames 5…6)
Storage temperature
-40 °C
Relative humidity
5…95 % non-condensing
Shock rating
15 G peak for 11 ms
Vibration
0.152 mm displacement, 1 G peak

Certifications

EAC

Certified for Eurasian Economic Community as of November 20, 2025; verify specific label for installed unit.
