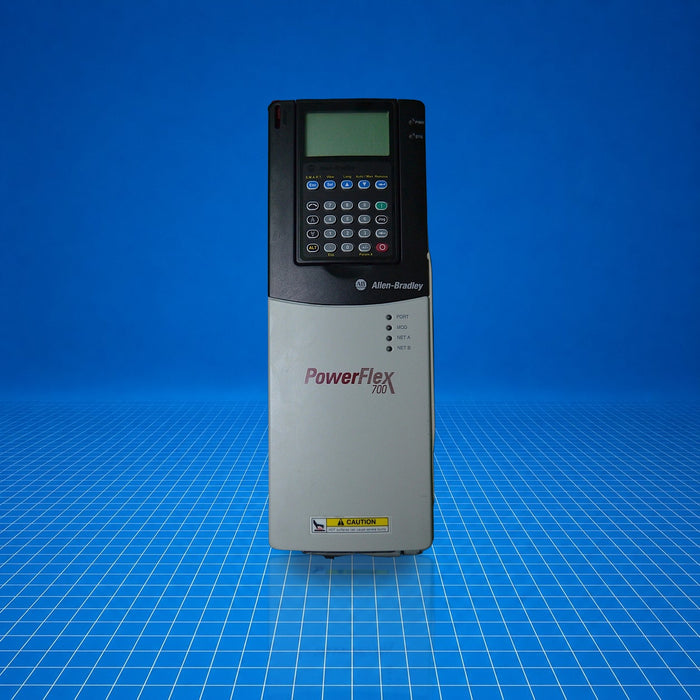

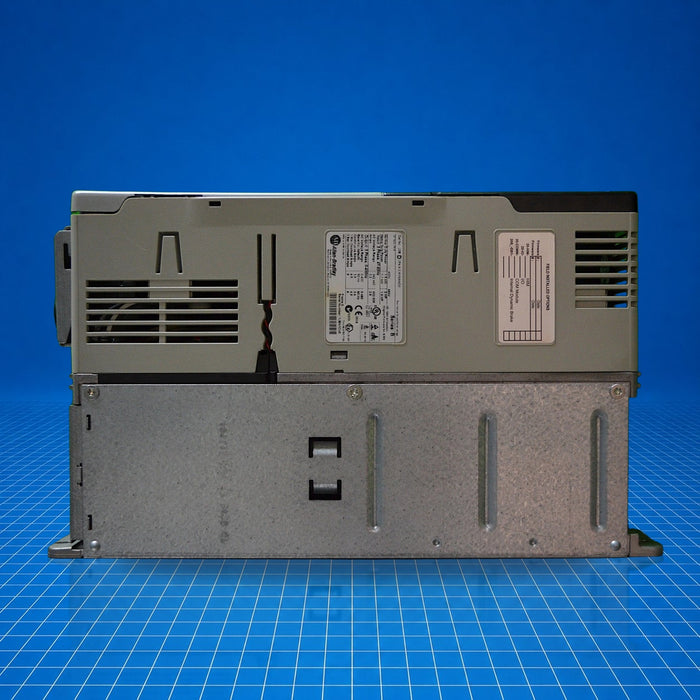

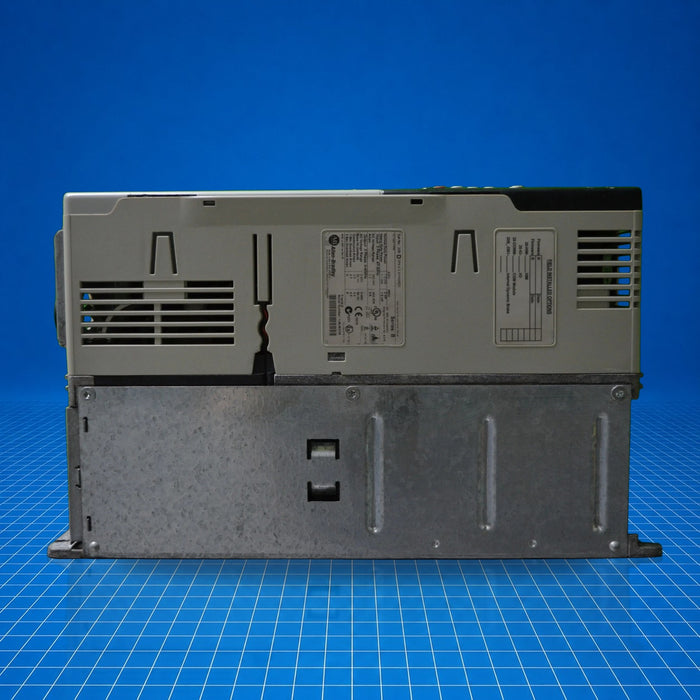

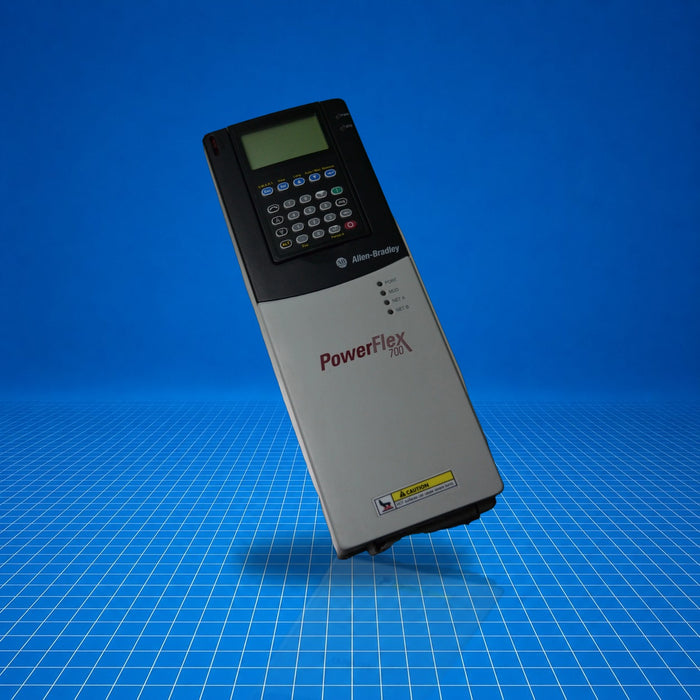

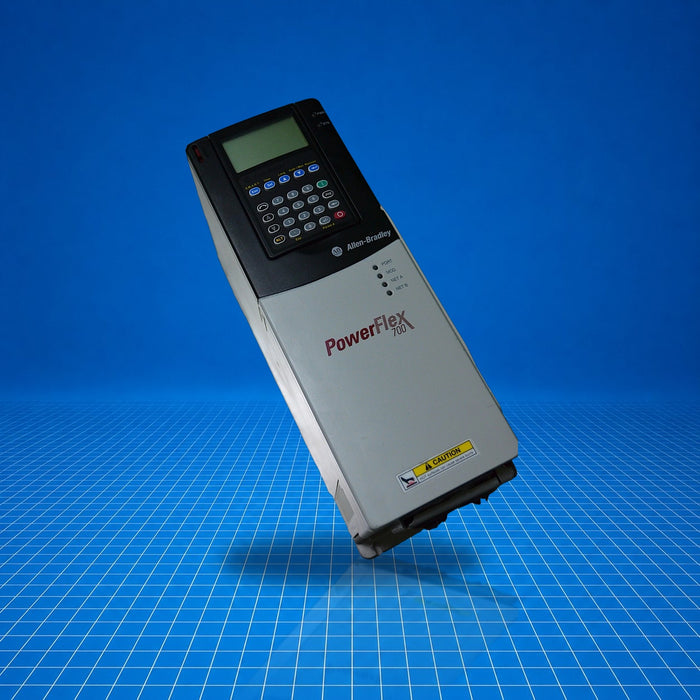

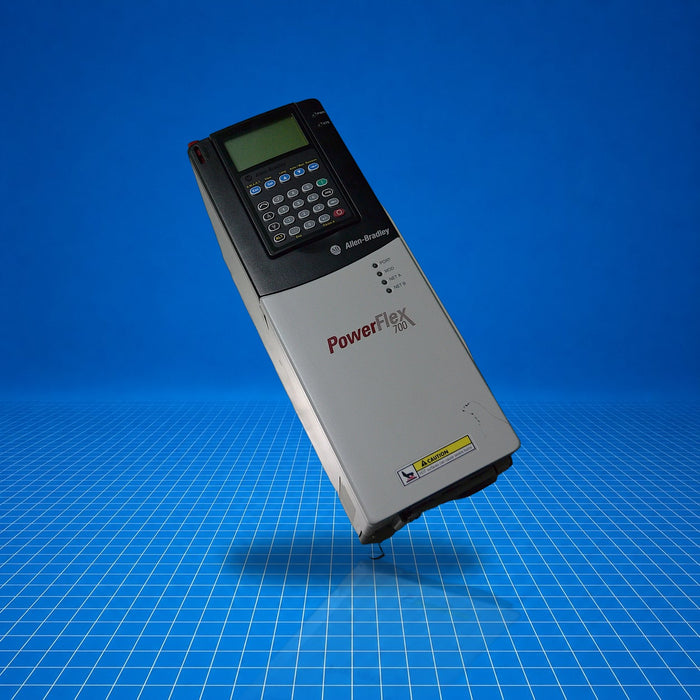

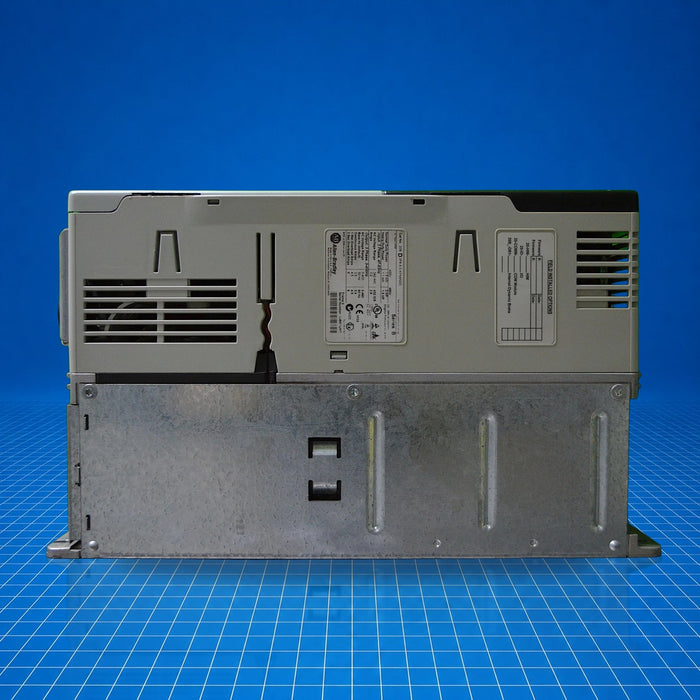

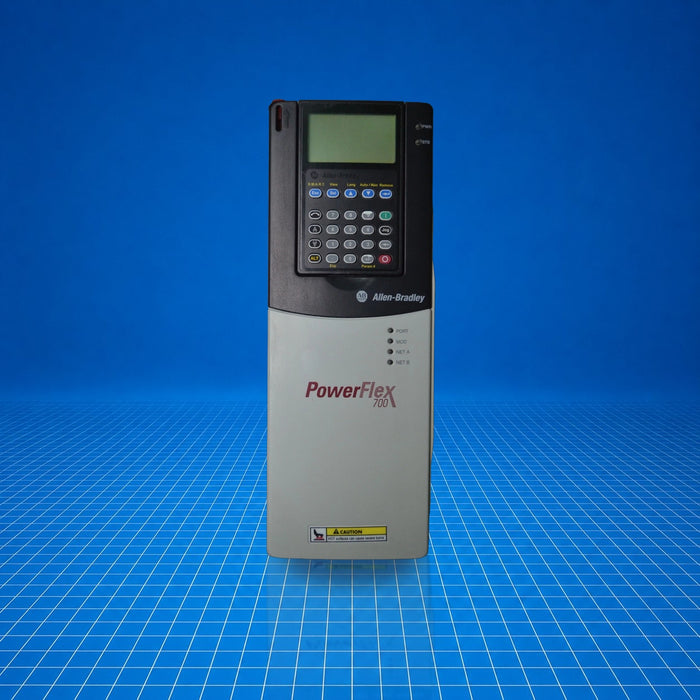

20BD3P4A0AYNAND0 Allen-Bradley
Original price
$958.76
-
Original price
$2,989.78
Original price
$958.76
$958.76
-
$2,989.78
Current price
$958.76
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 20BD3P4A0AYNAND0 is a PowerFlex 700 adjustable-frequency AC drive, offering 2 hp (normal duty), 3.4 A output and designed for 480 V AC, 3-phase operation. Featuring vector control, a built-in brake IGBT, EMC filter with common-mode choke and IP20/NEMA Type 1 enclosure, it occupies space in mid-range motor drives for precise speed and torque regulation in industrial motor control, conveyor systems, machine tools and general automation. The part is fully specified at Rockwell Automation and is now discontinued.
Best Suited For
- Variable-speed motor control in conveyor systems
- Machine tool speed/torque regulation
- 3-phase induction motor control in general automation
- Applications requiring braking IGBT with drive-mounted blank (no resistor)
Rated voltage
480 V AC, 3-phase
Output current
3.4 A (continuous)
Power rating
2 hp (normal duty)
Protection
IP20 / NEMA Type 1
Brake IGBT
Installed
Technical Specifications
I/O & Electrical
Input voltage
480 V AC, 3-phase, 60 Hz
Output current (continuous)
3.4 A
Output current (1 min)
4.5 A
Output current (3 s)
6 A
Fuse current rating
6 A @ 650 V DC
Circuit breaker rating, max
15 A @ 480 V AC, 3-phase
Communication & Power
Control method
Vector control (no I/O)
Brake IGBT
Installed
Brake resistor (internal)
Not installed
EMC filter/Common-mode choke
With EMC filter & CM choke
Physical & Environmental
Enclosure
IP20 / NEMA Type 1
Operating temp
0 °C to 40 °C
Operating humidity
5 % to 95 % non-condensing
Weight
~8.16 kg
Certifications
Discontinued
