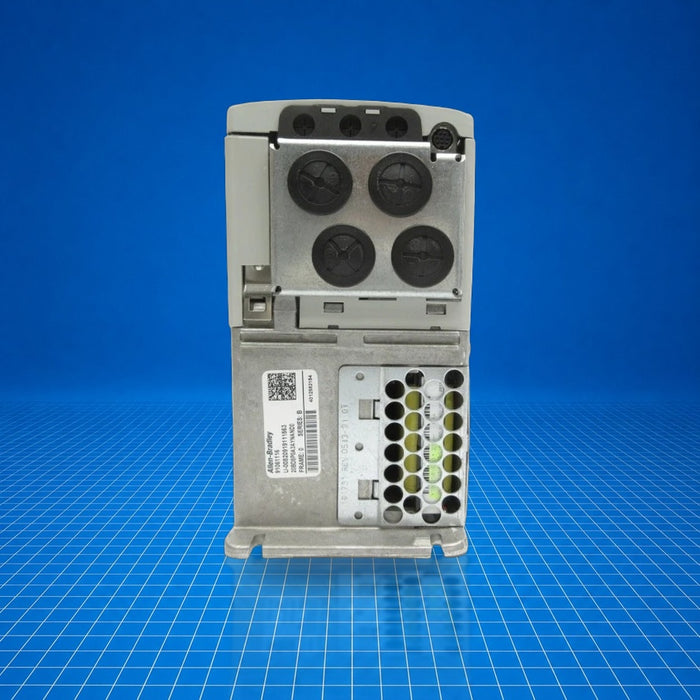

20BD8P0A3AYNAND0 Allen-Bradley

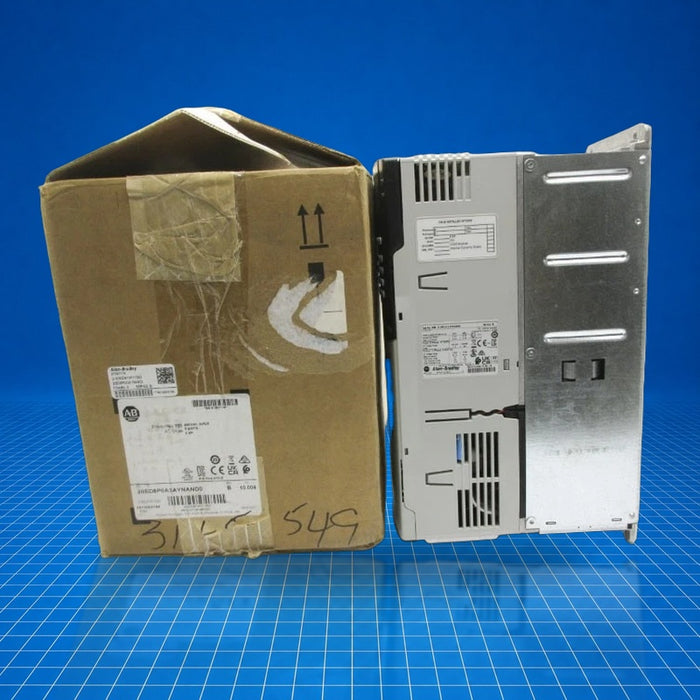

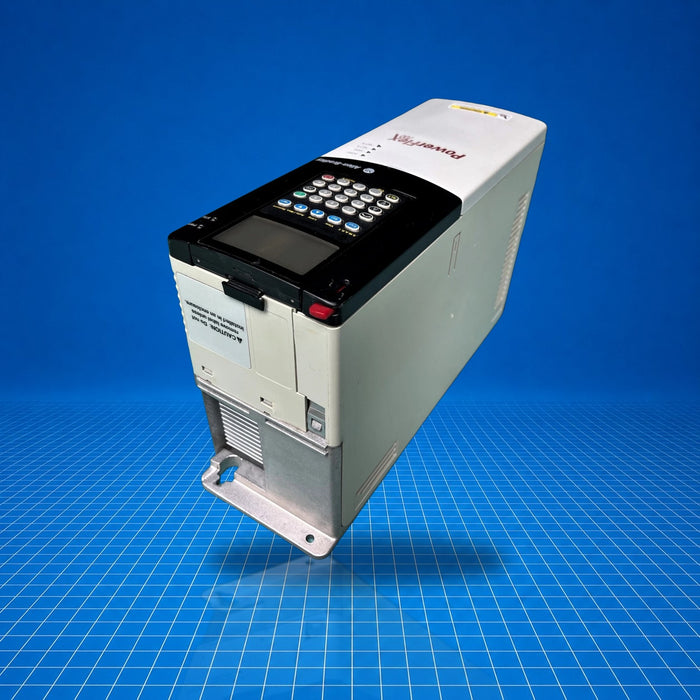

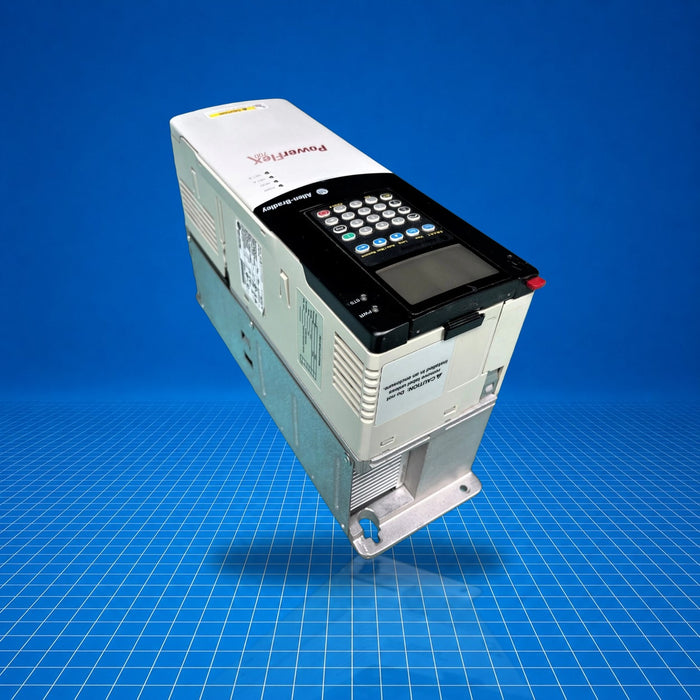

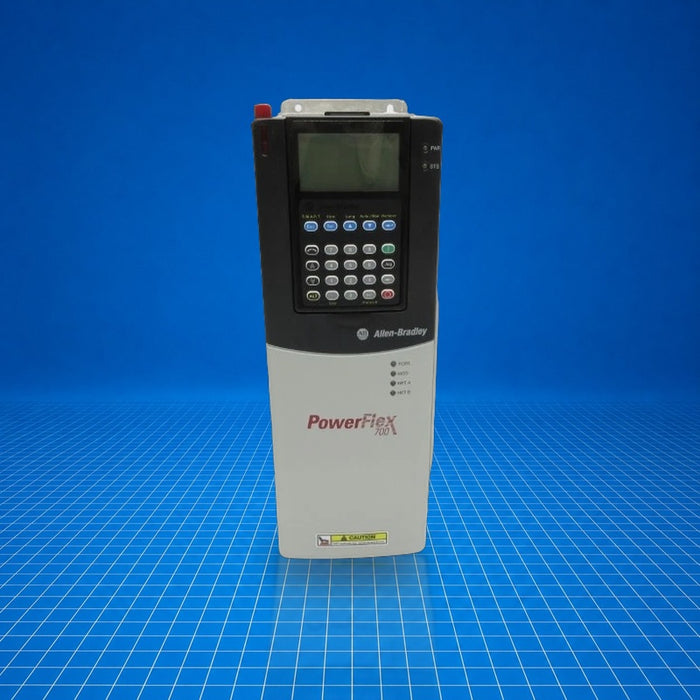

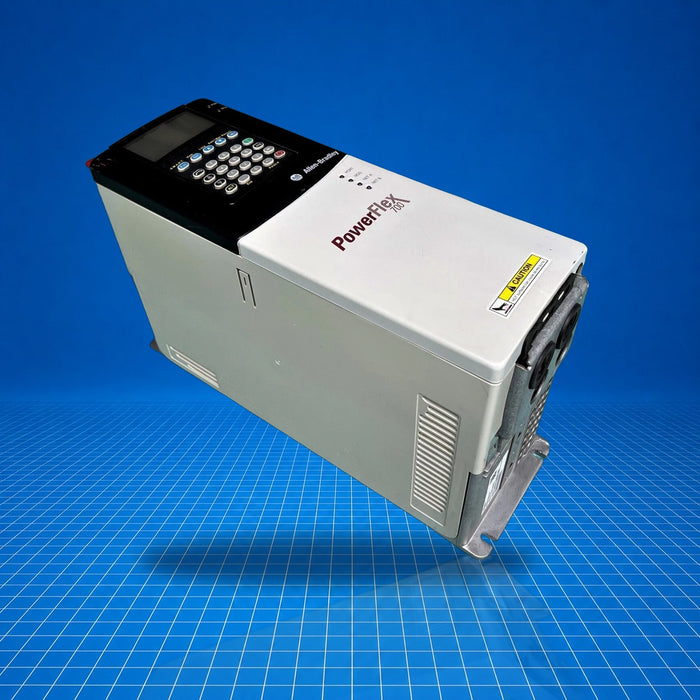

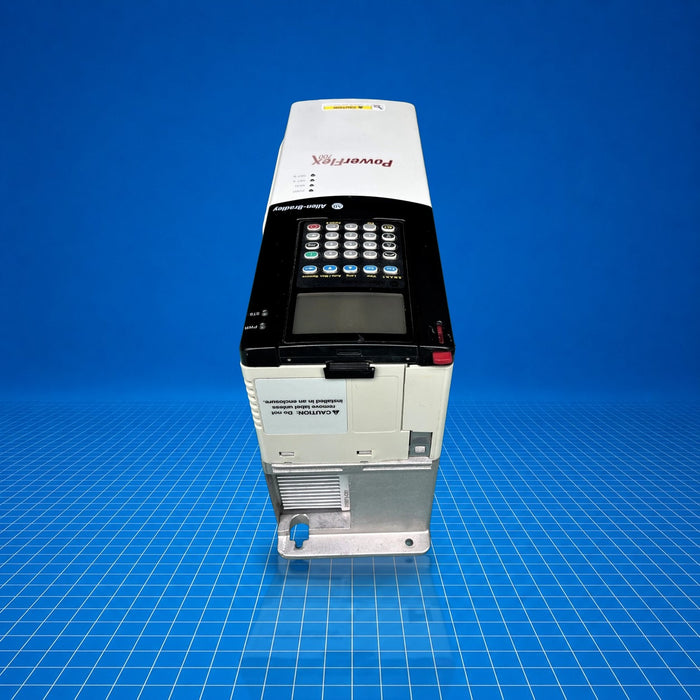

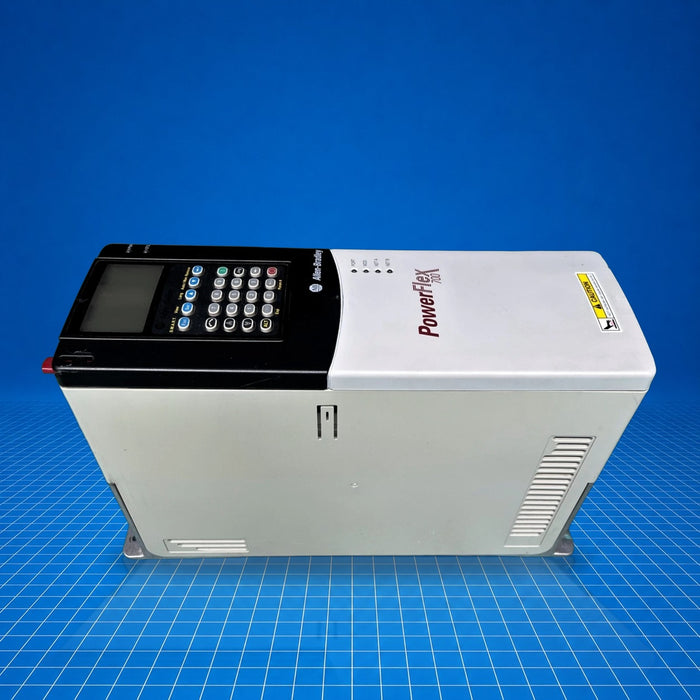

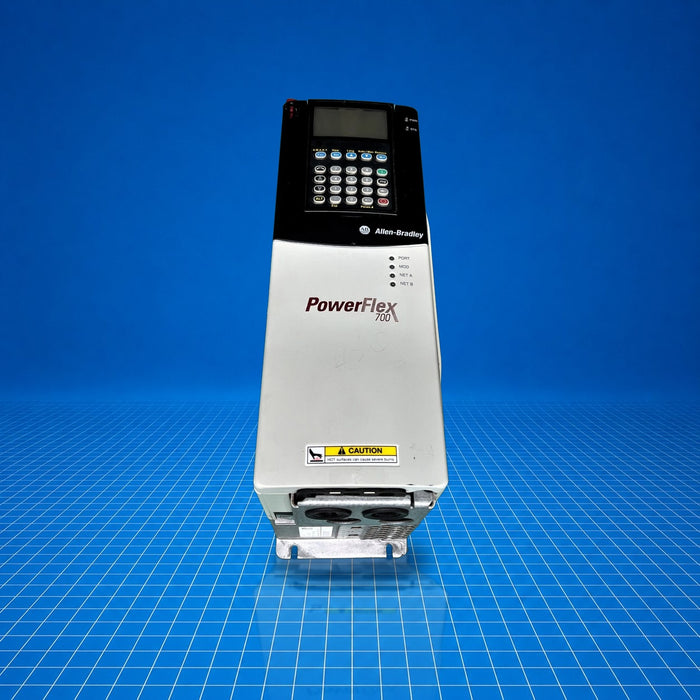

Product image is representative; revision or series may vary.
Contact us to request a specific version.

20BD8P0A3AYNAND0 Allen-Bradley

$2,447.55 - $11,286.00
$2,447.55
$2,447.55 - $11,286.00
$2,447.55
Surplus - Tested (With Warranty)
Need a Specific Revision?
$2,447.55
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$11,286.00
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 20BD8P0A3AYNAND0 is a PowerFlex 700 three-phase adjustable-frequency AC drive designed to deliver 8 A continuous (5 hp) motor control. It provides sine-coded PWM output with selectable carrier frequencies (supporting 4 kHz @ 650 V DC nominal), integrated braking via Brake IGBT (no internal resistor), and a human interface comprising an LCD display with full numeric keypad. It supports vector control and interfaces via DeviceNet and EtherNet/IP. The drive typically serves in industrial motor control for pumps, conveyors, fans, and general-machine automation. Part number 20BD8P0A3AYNAND0 is listed here once.

Best Suited For

  • Vector control of 3-phase 460 V AC motors up to 5 hp
  • Applications requiring braking IGBT without internal braking resistor
  • Systems using DeviceNet or EtherNet/IP connectivity
  • Mounting in NEMA Type 1 (IP20) enclosures
Continuous output current
8 A
Nominal bus voltage
648 V DC
Control method
Vector control
Interface
LCD display with numeric keypad
Protection rating
IP20/NEMA Type 1

Technical Specifications

I/O & Electrical

Input voltage
480 V AC, 3-phase, 60 Hz
Bus nominal voltage
648 V DC
AC input undervoltage trip
280 V AC
AC input overvoltage trip
570 V AC
Bus undervoltage fault
305 V DC
Bus overvoltage trip
810 V DC
Output current, continuous
8 A
Output current, 1 min
8.8 A
Output current, 3 sec
12 A
Internal watts loss
87 W
External watts loss
78 W
Total watts loss
164 W

Communication & Power

Communication protocols
DeviceNet, EtherNet/IP
Carrier frequency options
2, 4, 8, 10 kHz (drive rating based on 4 kHz)
PWM frequency
4 kHz @ 650 V DC

Physical & Environmental

Enclosure rating
IP20/NEMA Type 1
Shock resistance
15 G peak, 11 ms
Vibration
0.152 mm displacement, 1 G peak

Certifications

EAC

Certified to Eurasian Economic Community standards as of 2025-11-20. Additional UL/CE/cULus certifications not specified in available documentation.
