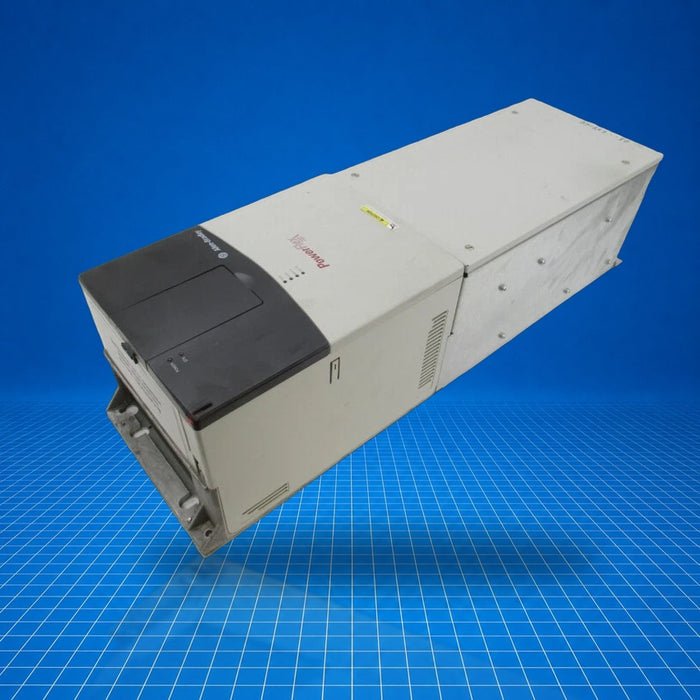

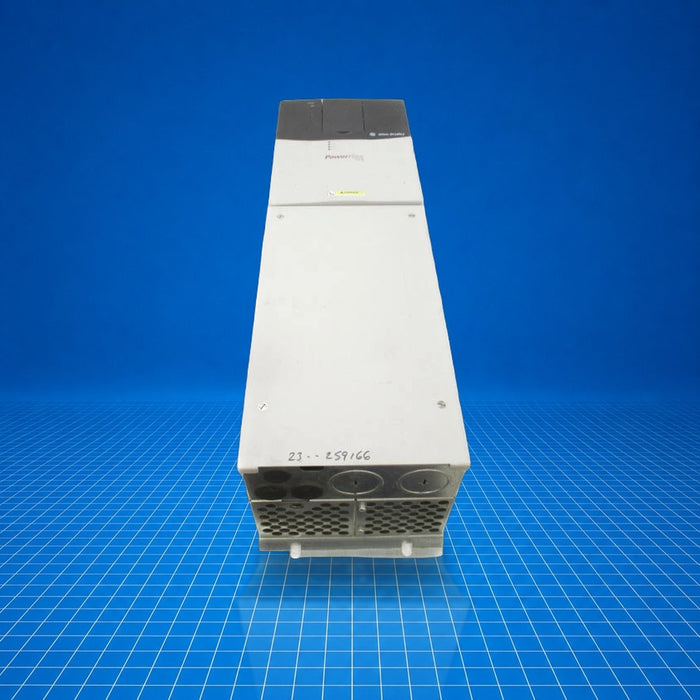

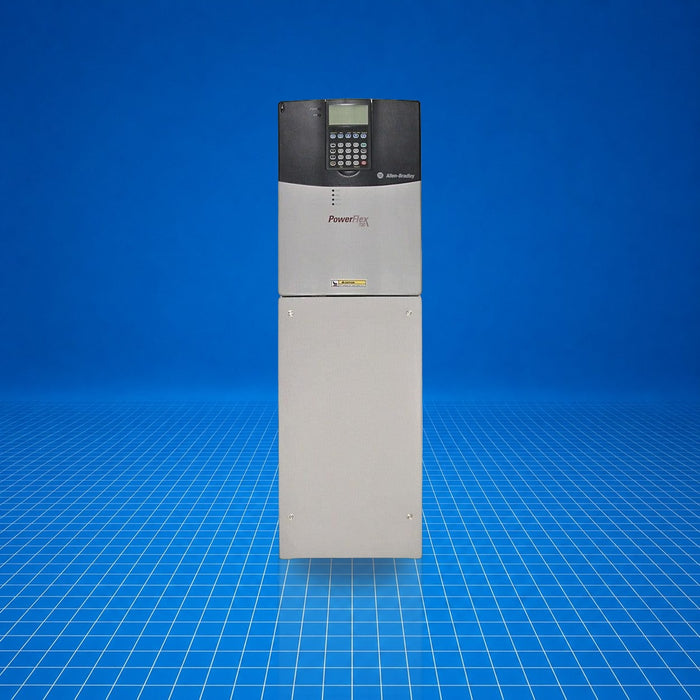

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
20BE062A0AYNANC0 Allen-Bradley
Original price
$0.00
-
Original price
$47,850.00
Original price
$47,850.00
$0.00
-
$47,850.00
Current price
$47,850.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 20BE062A0AYNANC0 is a PowerFlex 700 AC drive, 62 A / 60 HP, 600 V AC (three-phase), frame size 4, designed for vector control of industrial motors. It provides adjustable frequency motor control with integrated EMI suppression (EMC filter and common-mode choke), brake IGBT installed, and blank operator interface. Typically used in industrial motion control, conveyor systems, pumps and fans, and general-purpose motor speed control. The part number 20BE062A0AYNANC0 appears in the PowerFlex 700 series technical data listing and McNaughton-McKay's distributor entry.
Best Suited For
- Vector-controlled motor speed and torque regulation
- Applications requiring integrated EMC filtering
- Systems needing brake IGBT control
- Indoor IP20/NEMA 1 industrial environments
Voltage / Phase
600 V AC, three-phase
Continuous Output Current
62 A
Control Type
Vector control with 24 V I/O
EMC Filter / Common-Mode Choke
Yes
Technical Specifications
I/O & Electrical
Input voltage
600 V AC, 3-phase, 60 Hz
Output current, continuous
62 A @ 810 V DC nominal bus
Number of analog inputs
2
Number of analog outputs
2
Number of digital inputs
6
Number of digital outputs
3
Encoder supply
12 V @ 250 mA (10 mA minimum)
Brake IGBT
Installed
Communication & Power
Motor control
Vector control with 115 V AC I/O
EMC filter / common-mode choke
Yes
Efficiency
97.5 % at rated current, nominal line voltage
Carrier frequency
2, 4, 8, and 10 kHz (rating based on 4 kHz)
Physical & Environmental
Enclosure rating
IP20 / NEMA/UL Type 1
Dimensions (W × D × H)
220 mm × 201.7 mm × 758.8 mm
Weight
29.03 kg
Operating temperature
0…50 °C
Storage temperature
-40 °C
Shock
15 G peak, 11 ms duration
Vibration
0.152 mm displacement, 1 G peak
