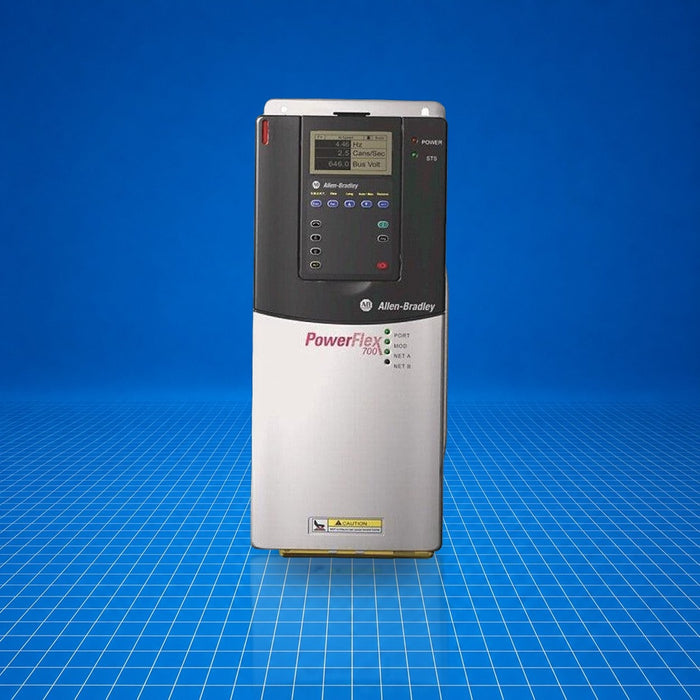

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
20BE6P1A0AYNANC0 Allen-Bradley
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 20BE6P1A0AYNANC0 is an Allen-Bradley PowerFlex 700 series AC drive, rated for approximately 6.1 A output (5 HP) suitable for three-phase motor control. It functions as a variable frequency drive (VFD) to regulate motor speed and torque in industrial systems such as conveyors, pumps, fans, and machine tools. The part belongs to the PowerFlex 700 platform and provides programmable control and protection. 20BE6P1A0AYNANC0 is now discontinued; this listing describes the original intended function and typical application context.
Best Suited For
- Controlling three-phase induction motors (approx. 5 HP/6.1 A)
- Conveyor and material-handling systems
- Pumps and fans requiring speed regulation
- Retrofit/upgrades of discontinued PowerFlex 700 drives
Frame output current (cont.)
6.1 A
Input voltage
600 V AC, 3-phase, 60 Hz
Enclosure rating
IP20 / NEMA Type 1
Weight (approx.)
8.16 kg
Technical Specifications
I/O & Electrical
Continuous output current
6.1 A
Input voltage
600 V AC, 3-phase, 60 Hz
Output voltage
0…575 V AC
Communication & Power
Internal communication module
EtherNet/IP (on similar variant 20BE6P1A0AYNAED0)
Carrier frequency
Programmable 2, 4, 8, 10 kHz (rating based on 4 kHz)
Input power rating
5.5 kVA @ 600 V AC
Physical & Environmental
Enclosure type
IP20 / NEMA Type 1
Dimensions (H×W×D)
336 mm × 110 mm × 200 mm
Weight
8.16 kg
Operating temperature
0…50 °C
Storage temperature
-40 °C
Shock
15 G, 11 ms
Vibration
0.152 mm displacement, 1 G peak
Altitude
Up to 1000 m without derating
