20F11FD014JA0NNNNN Allen-Bradley

Name: 20F11FD014JA0NNNNN Allen-Bradley
Brand: Allen Bradley
SKU: 20F11FD014JA0NNNNN
Price: 5550.0 USD
Availability: InStock

$0.00 - $5,550.00

$5,550.00

$0.00 - $5,550.00

$5,550.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

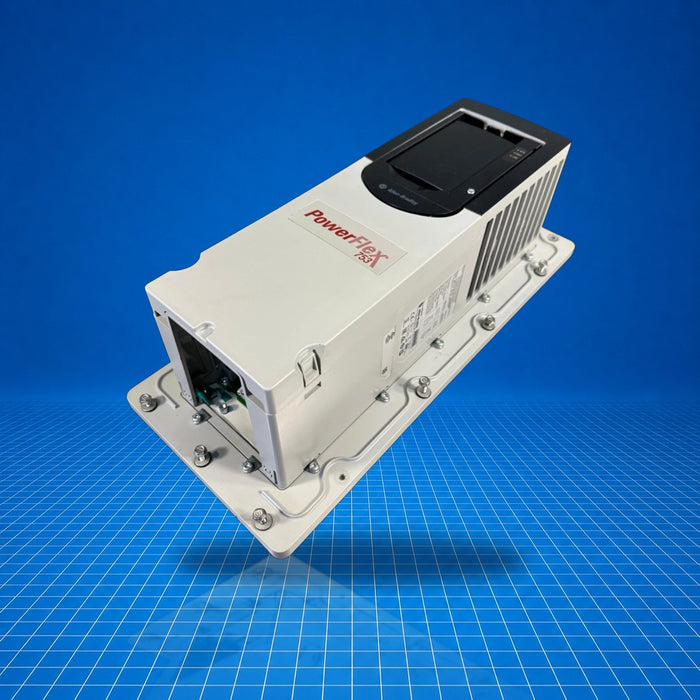

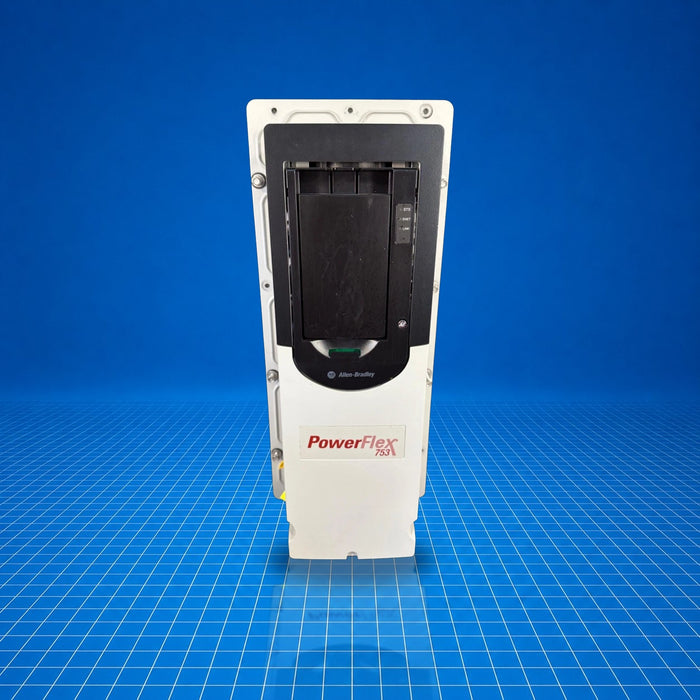

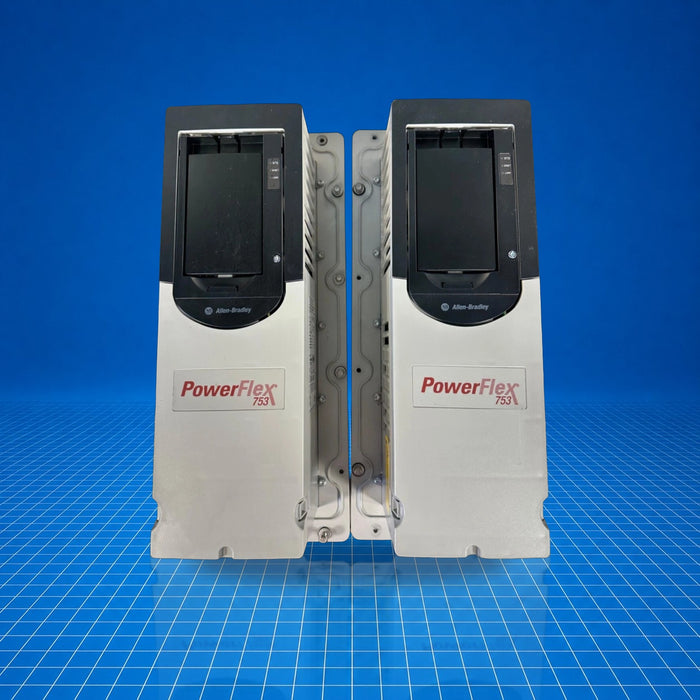

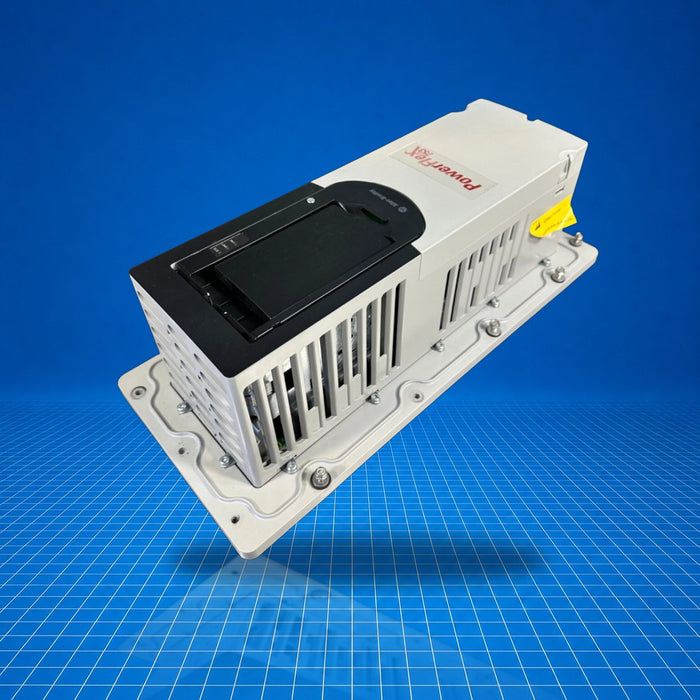

The Allen-Bradley PowerFlex 753 AC Drive (catalog number 20F11FD014JA0NNNNN) is a flange-mount three-phase AC motor drive with embedded I/O, part of the PowerFlex 753 family. It provides adjustable motor control for industrial applications, delivering 10 hp under continuous (normal-duty) operation and 7.5 hp under heavy-duty conditions at 480 VAC. It includes dynamic braking via a transistor and filtered input with common-mode jumper installed. This drive is used in mid-size motor control, conveying material handling systems, pump control, and factory automation processes. Part number 20F11FD014JA0NNNNN.

Best Suited For

Mid-size three-phase motor control
Conveyor and material handling systems
Pump and fan drive applications
Embedded I/O systems requiring flange-mount installation

Normal-duty output

10 hp, 14 A

Heavy-duty output

7.5 hp, 11 A

Voltage class

480 VAC (three-phase)

Dynamic braking

DB transistor

Enclosure type

Flange-mount, filtered input

Technical Specifications

I/O & Electrical

Voltage class

480 VAC, three-phase

Normal-duty output current

14 A

Heavy-duty output current

11 A

Normal-duty horsepower

10 hp

Heavy-duty horsepower

7.5 hp

Dynamic braking

DB transistor

EMC filtering

Filtered, common-mode jumper installed

Physical & Environmental

Mounting type

Flange-mount

Frame size

Frame 2

Certifications

ATEXUL ListedAustralian RCMKorean KCCEEurasian Economic Community
