20F11NC030JA0NNNNN Allen-Bradley

Name: 20F11NC030JA0NNNNN Allen-Bradley
Brand: Allen Bradley
Price: 4256.88 USD
Availability: InStock

$4,256.88 - $4,499.22

$4,256.88

$4,256.88 - $4,499.22

$4,256.88

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

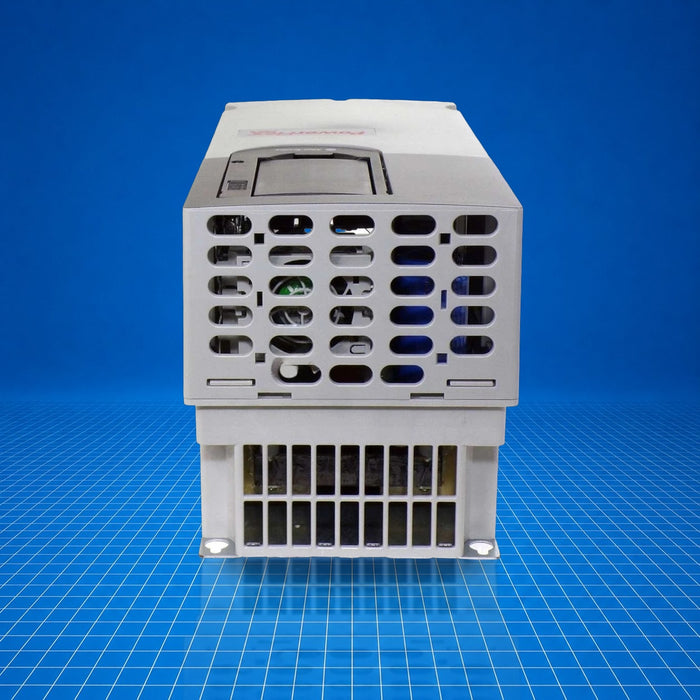

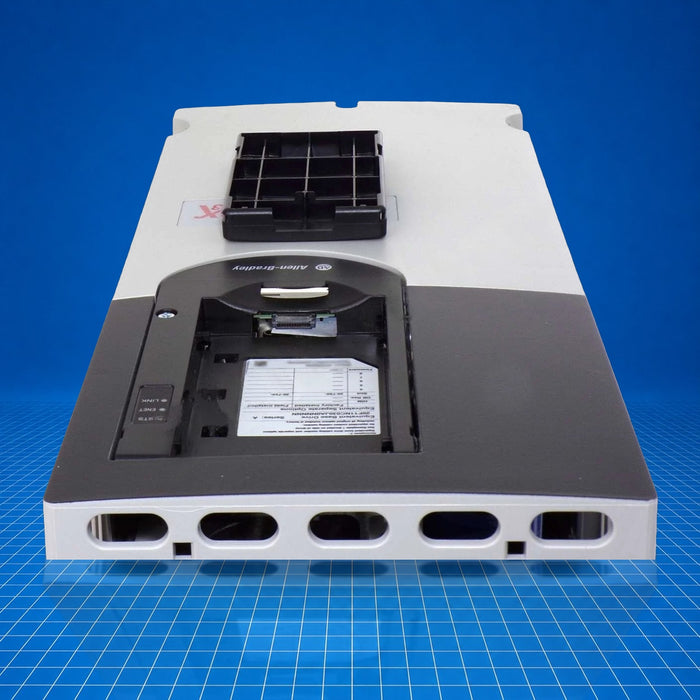

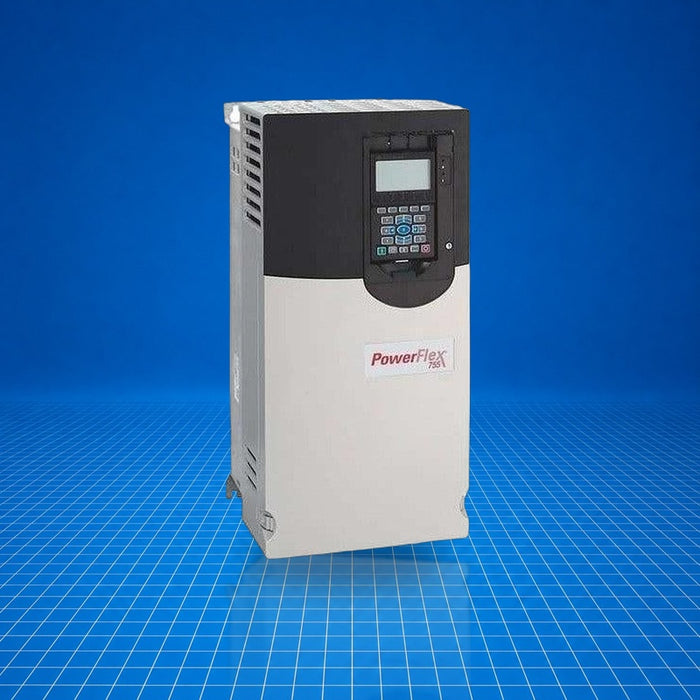

The 20F11NC030JA0NNNNN is an Allen-Bradley PowerFlex 753 air-cooled AC variable frequency drive (VFD) in a Frame 3 IP20 / NEMA open-type enclosure. It provides 15 kW (20 hp) output with a continuous current capacity of 30 A at a nominal supply of 380-400 V AC three-phase. It integrates standard protection, forced-air cooling, filtered input with precharge, a common-mode jumper, and a dynamic-braking transistor. It is suitable where control or modulation of three-phase motors is required. 20F11NC030JA0NNNNN conforms with PowerFlex 753 family standards for industrial motor control.

Best Suited For

Three-phase induction motor speed control
Panel-mounted industrial drive installations
Applications requiring dynamic braking
Replacement of discontinued 20F11NC030AA0NNNNN

Power rating (Normal Duty)

15 kW

Rated current (continuous)

30 A

Voltage class

380-400 V AC / 540 V DC

Enclosure type

IP20, NEMA/UL Type Open

Dynamic braking

Transistor included

Technical Specifications

I/O & Electrical

Output power

15 kW

Continuous current

30 A

Voltage class

380-400 V AC / 540 V DC

Filtered input with precharge

Yes

Communication & Power

Common-mode capacitor jumper

Installed

Dynamic braking

Transistor

Option slots (feedback/safety/comm)

3 available (conf. medium)

Physical & Environmental

Enclosure rating

IP20, NEMA/UL Open

Cooling method

Forced air

Mounting orientation

Vertical panel mount (typical)

Frame size

3

Weight

30 lbs (13.61 kg) (conf. medium)

Certifications

UL ListedCEATEXRCMKCUKCA

Certifications include Australian RCM, CE, ATEX, American Bureau of Shipping, Registro Italiano Navale, Korean KC, UL Listed, Eurasian Economic Community, UK CA as of May 19, 2026.
