Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

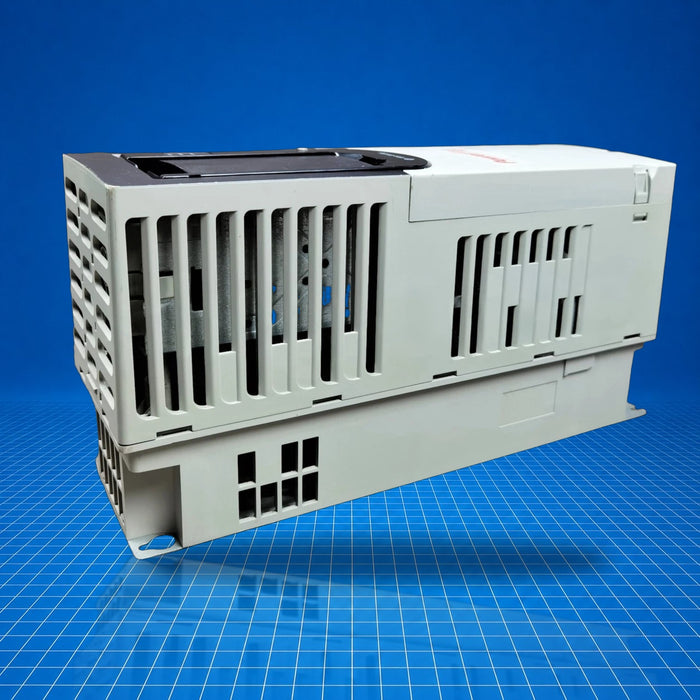

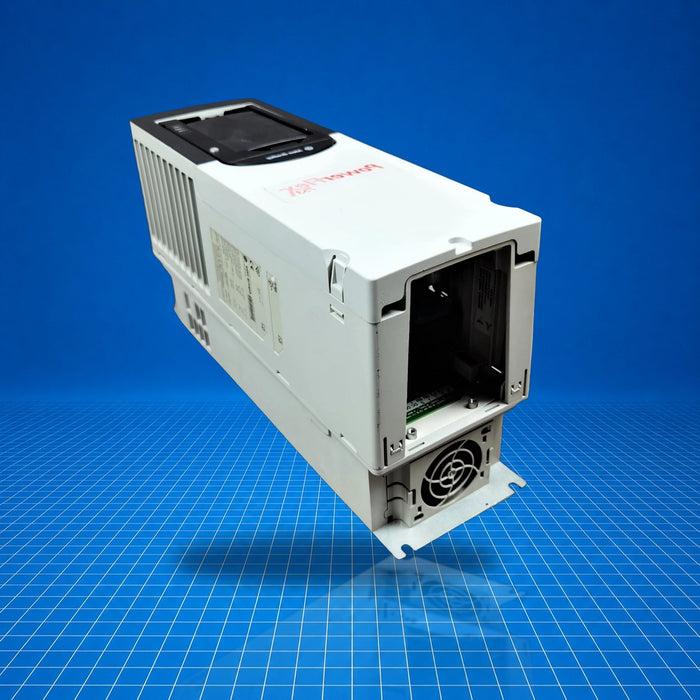

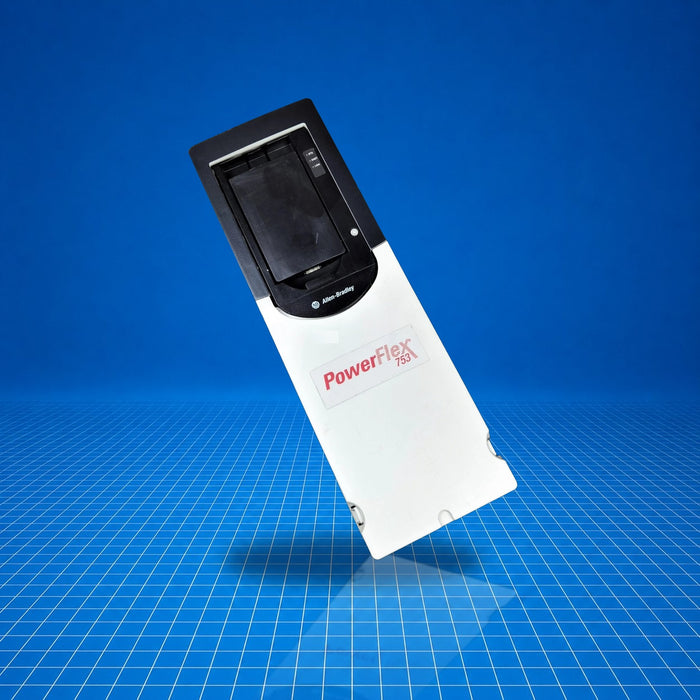

The Allen-Bradley 20F11NC3P5JA0NNNNN is a PowerFlex 753 air-cooled, open-type AC drive with embedded I/O. It belongs to the PowerFlex 753 packaged drive family and provides AC motor speed control in systems that require adjustable drive performance. The drive accepts a 3-phase 400 VAC input and outputs up to 3.5 A (1.5 kW normal duty, 0.75 kW heavy duty, frame size 2), featuring filtered input, common-mode jumper, dynamic braking transistor, and no human interface module installed. 20F11NC3P5JA0NNNNN is appropriate for applications requiring integrated I/O and compact power control.
Best Suited For
- Variable-speed control of motors in modular production systems
- Replacement of discontinued 753 drives with similar frame and current ratings
- Installation where embedded I/O reduces cabinet wiring
- Applications requiring AC 400 V, 3 PH, frame 2 with dynamic braking
Input voltage
400 VAC, 3 ph
Output current
3.5 A
Power rating (normal duty)
1.5 kW
Frame size
2
Dynamic braking
DB transistor
Technical Specifications
I/O & Electrical
Power input
400 VAC, 3 ph
Output current
3.5 A
Power rating (normal duty)
1.5 kW
Power rating (heavy duty)
0.75 kW
Communication & Power
Dynamic braking
DB transistor
EMC filtering
Filtered, CM jumper installed
Embedded I/O
Yes
Human interface module
None (blank)
Physical & Environmental
Enclosure type
Open type, frame 2
