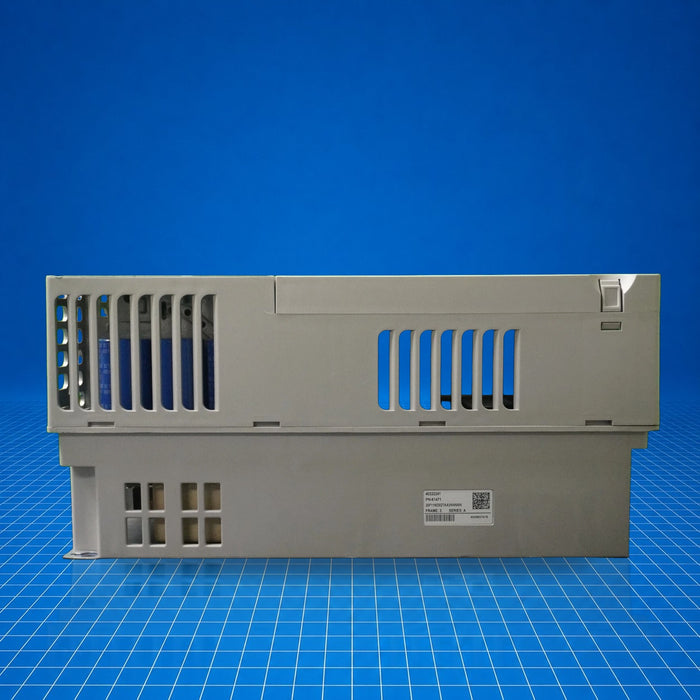

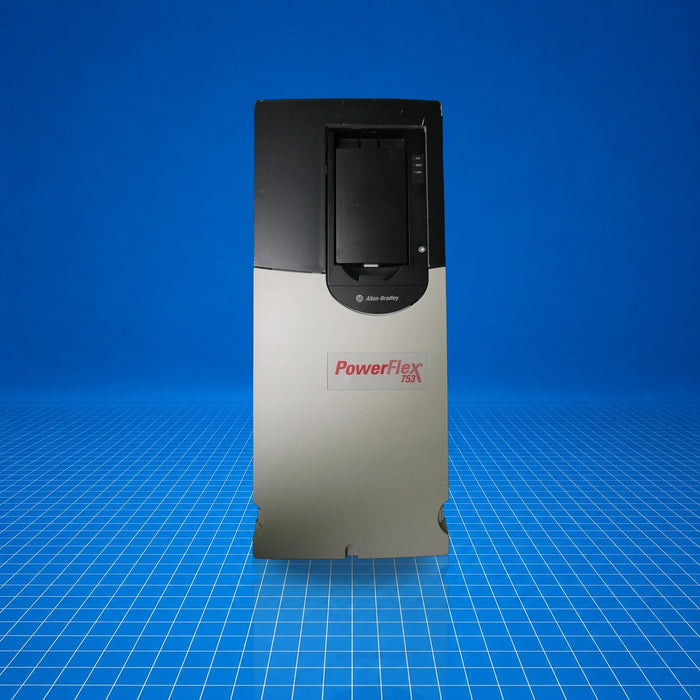

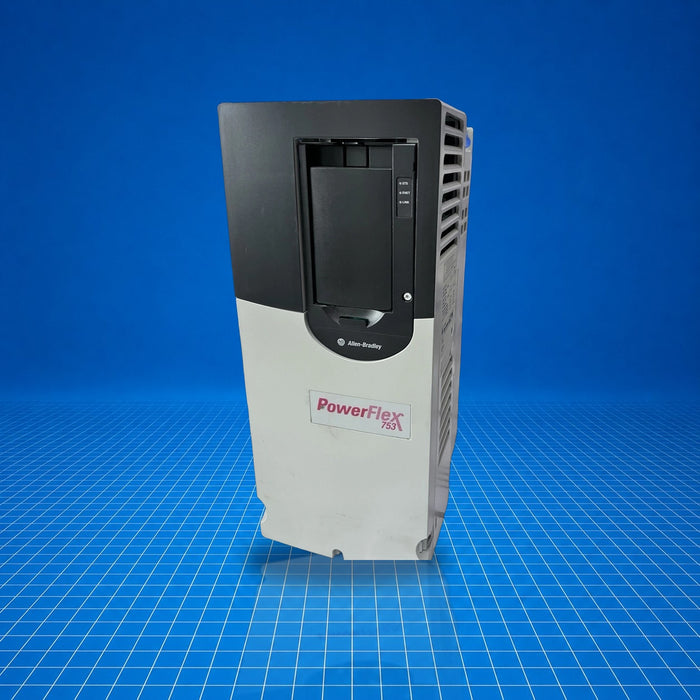

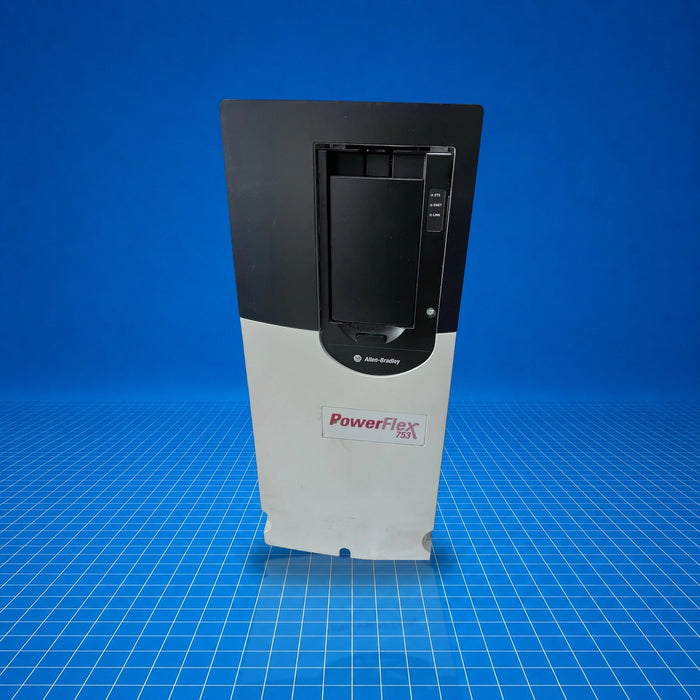

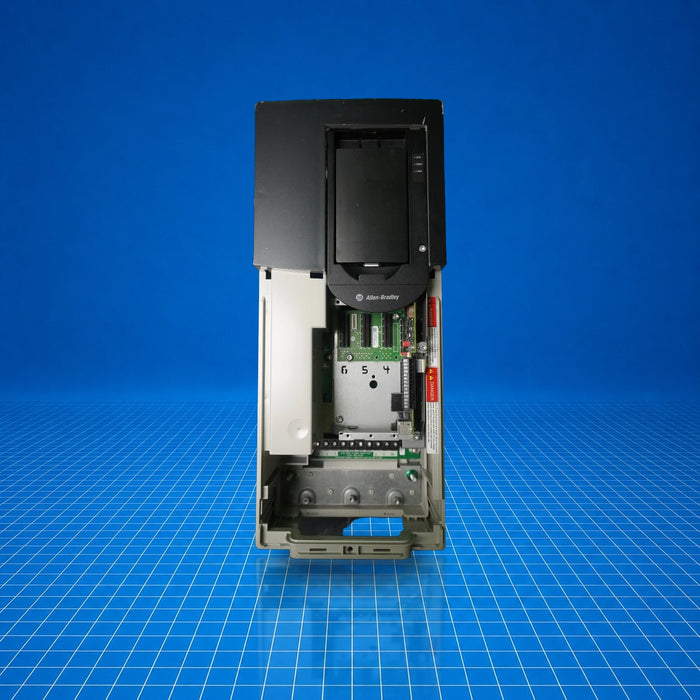

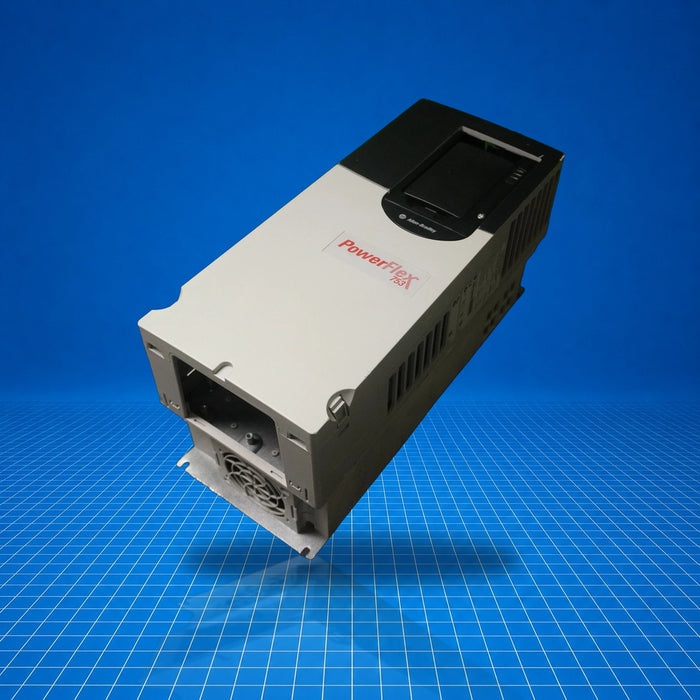

20F11ND027AA0NNNNN Allen-Bradley
Original price
$2,450.00
-
Original price
$2,475.00
Original price
$2,450.00
$2,450.00
-
$2,475.00
Current price
$2,450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 20F11ND027AA0NNNNN is an Allen-Bradley PowerFlex 753 air-cooled adjustable frequency AC drive. It belongs to the PowerFlex 753 series (frame 3, IP00/IP20/NEMA open-type enclosure) and is designed for controlling three-phase motors up to 20 HP (ND duty). It integrates features like internal dynamic braking transistor and EMC filtering, and is used for variable-speed motor control in industrial machinery, conveyors, pumps, and fans. Typical roles include replacing existing VFDs, retrofit projects, or OEM installations in industrial control systems.
Best Suited For
- Three-phase motor speed control up to 20 HP (ND)
- Air-cooled VFD retrofit on machine drives
- Applications needing internal dynamic braking
- Installations requiring EMC-filtered drive
Output current (ND)
27 A
Voltage class
480 VAC
Duty power (ND)
20 HP / 15 kW
Enclosure type
IP00 (IP20/NEMA open type)
Frame size
3
Technical Specifications
I/O & Electrical
Phase
Three-phase
Input voltage
480 VAC
Output current
27 A
Power rating (ND)
20 HP / 15 kW
Duty overload capacity
110 % for 60 sec
Communication & Power
EMC filtering
Filtered
Dynamic braking
DB transistor (internal)
Input type
AC input with DC terminals
Physical & Environmental
Enclosure rating
IP00 (IP20/NEMA open-type)
Frame size
3
Weight
26.1 lb
Dimensions (H × W × D)
17.87 × 7.48 × 8.35 in
Certifications
UL ListedCESafetySemiconductor Inds Immunity
